CanyCom CMX 224 - Seat Bracket; Cutting Blade Shield

Maintenance
-52-
5

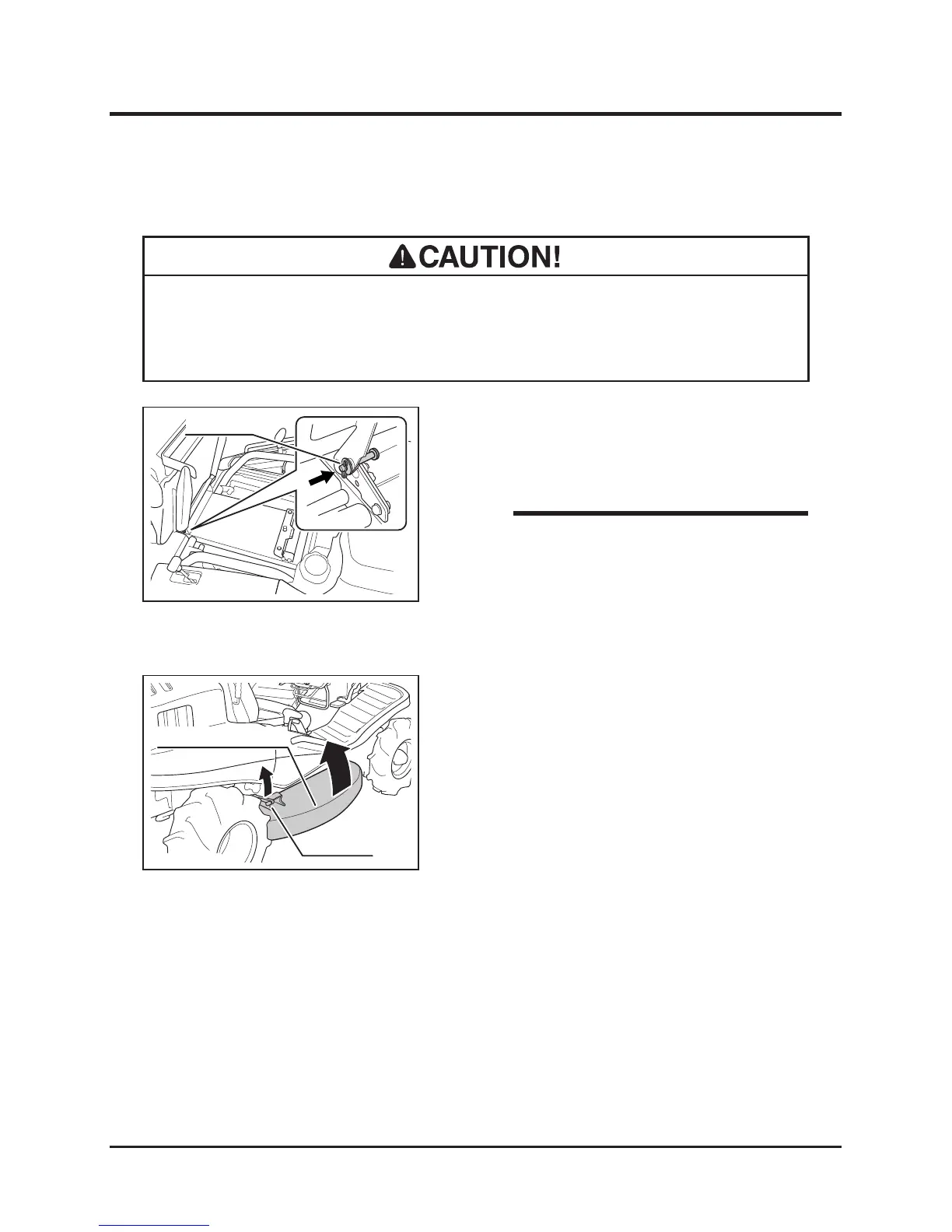

Seat Bracket
1. Slide seat to the rear-most position.
2. Lift seat and push safety pin toward inside to
hold seat.
• Move seat and check if the seat is held in
place rmly.
NOTE
5332M-0401-080E
Safety Pin
Cutting Blade Shield
1. Lift lock lever.
2. Hold lock lever and lift blade shield.
3. Release lock lever to lock shield in the lifted
position.
5332M-0505-070E
Cutting Rotary Sheild
Lock Lever
• Always slide seat to the rear-most position when lifting seat. If seat is not in the
rear-most position, slide lever may interfere with step, preventing seat to be
lifted to the holding position.
