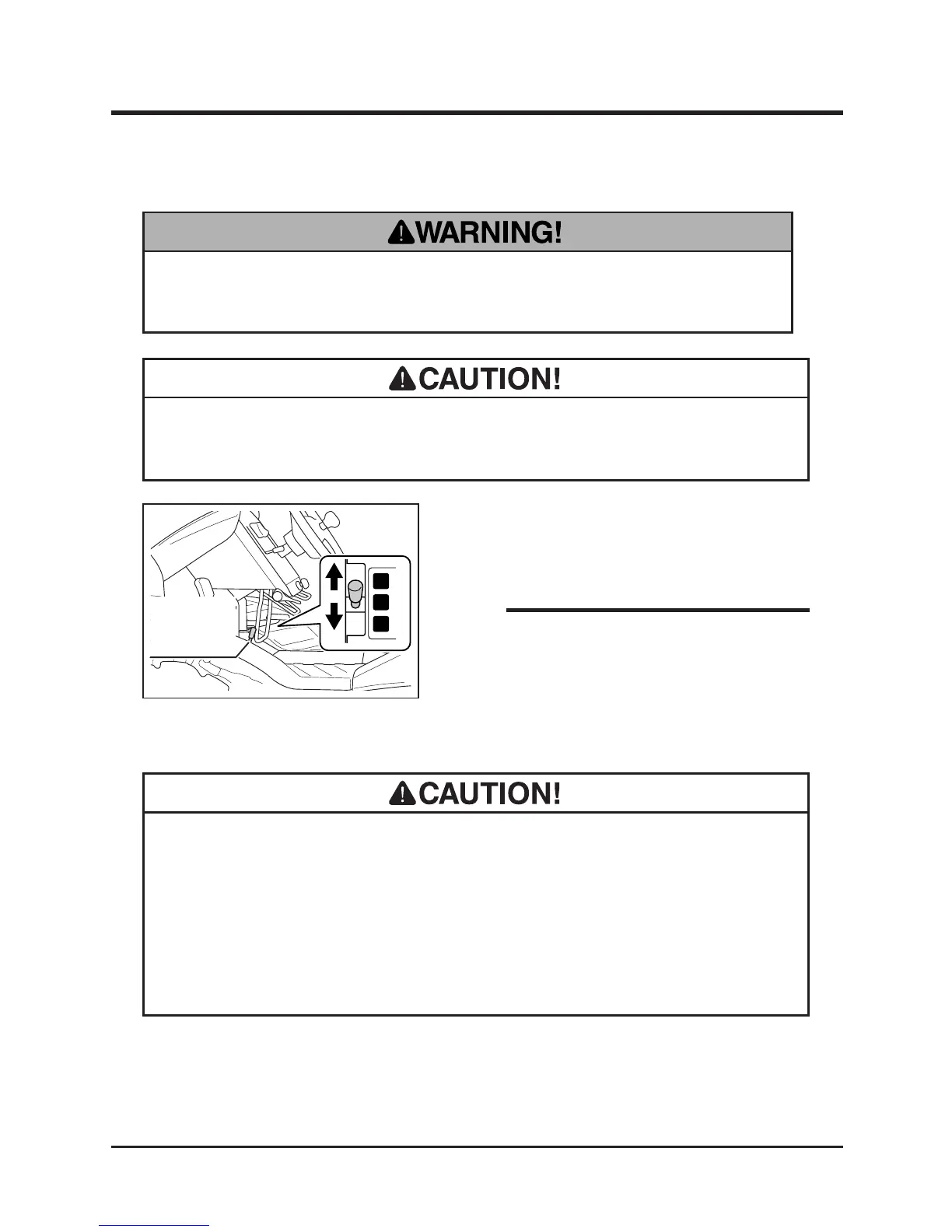

CanyCom CMX 224 - Shifting and Locking

Operation
-30-
4
1. Stop machine.
2. Move auxiliary transmission shift lever to [H
(high speed)] or [L (low speed)] position rmly.
5332M-0402-100E
Auxiliary
Transmission
Shift Lever
L
H
N
• See Specications (page 15) for the speed
range in either gear position.
• Always stop machine to shift between 2WD or AWD (all-wheel-drive) modes.
Shifting gears while machine is in motion can damage transmission.
• Use 2WD mode under normal condition.
• Pay attention to the minimum turning radius in AWD mode. In AWD mode,
minimum turning radius is greater than that in 2WD mode.
Shifting Between 2WD and AWD (CMX224)
• Always stop machine to shift gears. Shifting gears while machine is in motion
can damage transmission.
NOTE
• Always shift gears rmly. When transmission is not rmly shifted, it may jump
out of gear, resulting in loss of control of machine.
Shifting
