Description of the appliance

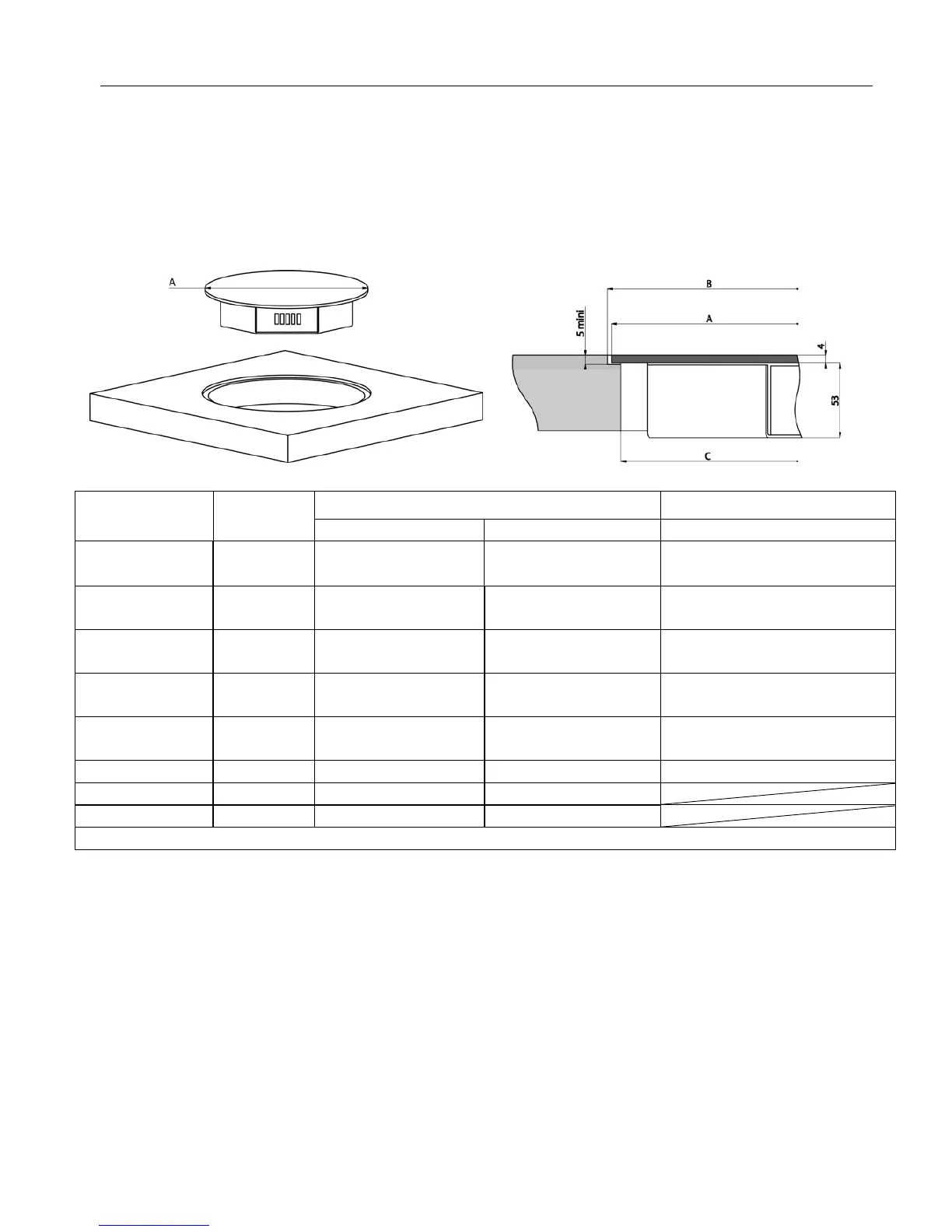

Appliances and installation dimensions
Please refer to the worktop manufacturer for the minimum spacing required between each
zone cut out to maintain the required supporting strength.
Dimension
Heating zone Finger touch
5 7 C
Part reference C950I-002 C950I-003 C950I-001
Dimension of
glass
A 270mm 300mm 275 x 150 – R75
Diameter of the
throat
B 272mm 302mm 279 x 154 – R77
Thickness of
glass
4mm 4mm 4mm
Cut-out
Dimension
C 254mm 284mm 265 x 140 – R70
Height total 57mm 57mm 35mm
Power 1100W 2300W
Booster power 1400W 3000W
The dimensions of technical box C950I-004 are: 270x210x48mm
Flush line installation Standard installation
