Electrical connection
The installation of this appliance and the connection to the electrical network should be en-
trusted only to an electrician who will comply to the normative regulations and who respects
them scrupulously.
Protection against parts under tension must be ensured after the installation.
The necessary data for connection is on the stickers placed on the hob casing near the connec-
tion box.
The connection to the mains must be made using an earthed plug or via an omnipolar circuit
breaking device with a contact opening of at least 3 mm.
The electrical circuit must be separated from the network by adapted devices, for example: cir-
cuit breakers, fuses or contactors.
If the appliance is not fitted with an accessible plug, disconnecting means must be incorpo-
rated in the fixed installation, in accordance with the installation regulations.
The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or
oven.
Connecting the hob
For the various kinds of connection, use the brass bridges which are supplied in the box next to the
terminal.
Caution!
- Always connect the earth wire.
- Respect the connection diagram.
- This device is intended for a supply of 230 V ~ 50/60 Hz
- The connection box is located underneath at the back of the hob casing. To open the cover use a
medium size screwdriver. Place it in the slits and open the cover.
* calculated with the simultaneous factor following the standard EN 60 335-2-6
Important
It is forbidden to extent or to shorten the liaison wires area of the cooking zones ( 5,6,7,8) Only the
control panel © may be extended (Only use our original extension cable ref: A10506/0).

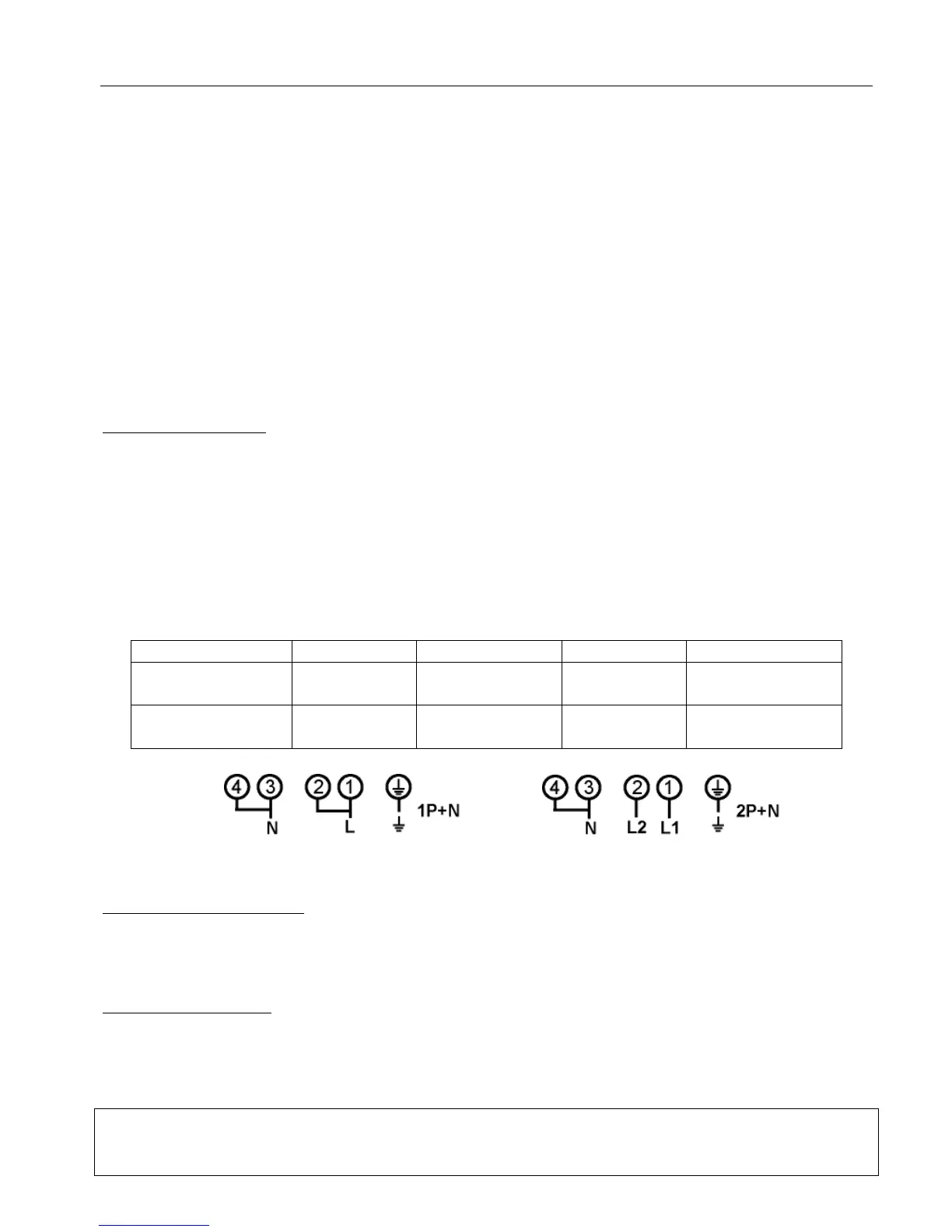

Monophase 230V~1P+N:
Put the 1
st
bridge between terminal 1 and 2, the 2
nd
between 3 and 4.
Attach the earth to the terminate “earth”, the neutral N to terminal 3 or 4, the Phase L to one of the
terminals 1 or 2.
Biphase 400V~2P+N:
Put a bridge between terminal 3 and 4.
Attach the earth to the terminate “earth”, the neutral N to terminal 3 or 4, the Phase L1 to the
terminals 1 and the Phase L2 to the terminal 2.
Caution! Be careful that the cables are correctly engaged and tightened.
We cannot be held responsible for any incident resulting from incorrect connection or which
could arise from the use of an appliance which has not been earthed or has been equipped
with a faulty earth connection.
Mains Connection Cable diameter Cable Protection calibre
230V~ 50/60Hz 1 Phase + N 3 x 2,5 mm²
H 05 VV - F
H 05 RR - F
25 A *
400V~ 50/60Hz 2 Phases + N 4 x 1.5 mm²
H 05 VV - F
H 05 RR - F
16 A *
