Carel compactSteam - Page 14

15
ENG
“compactsteam” +0300092IE - rel. 1.2 - 14.01.2021
CH004N0003

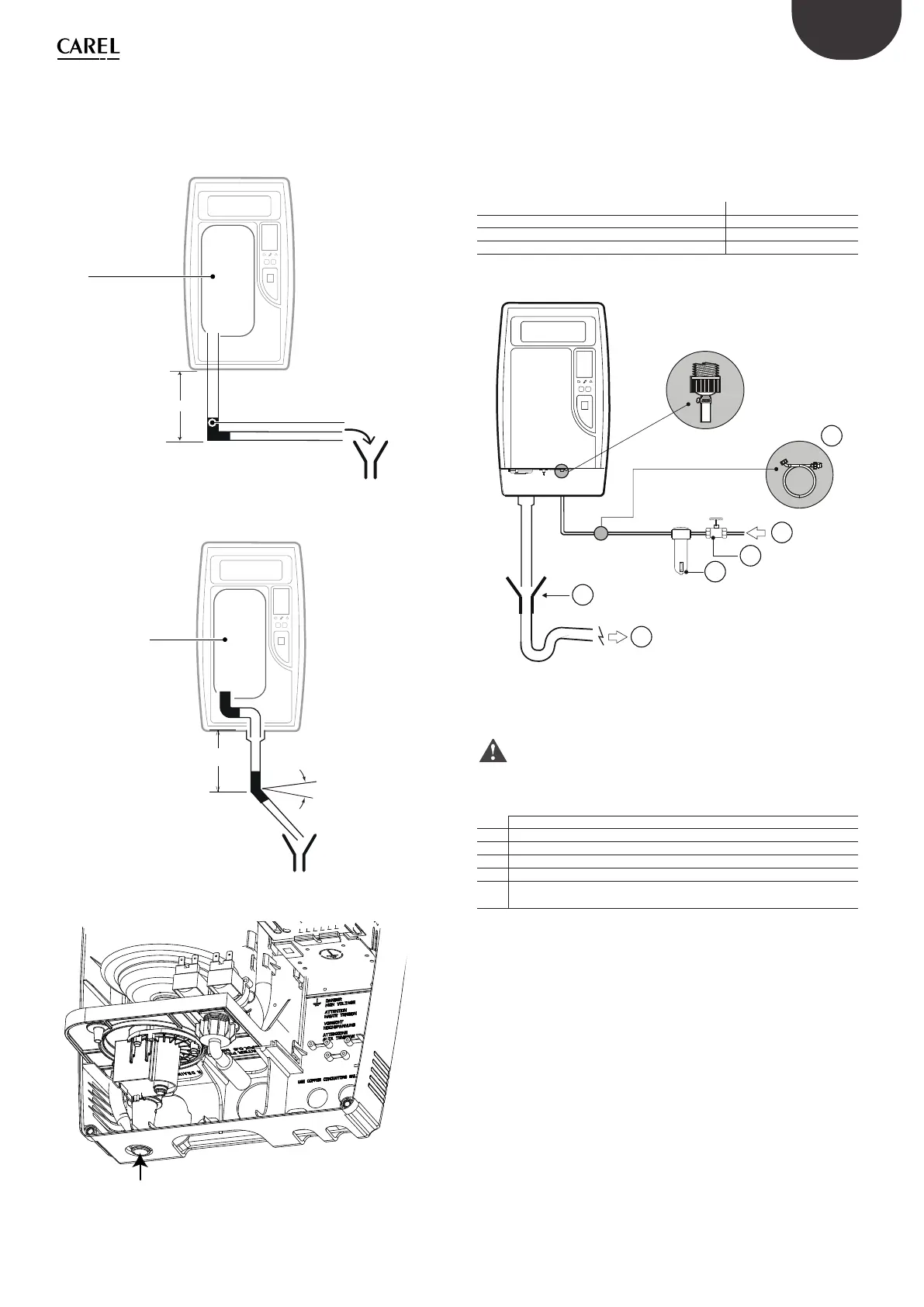

In this case, the drain pipe can only be connected at the bottom of the
appliance (Fig. and must have a minimum inside diameter of 19 mm
(3/4”); it must be xed to the humidier drain outlet without weighing on
the unit. Observe the following instructions for the installation distances.
boiler
raccordo circa 90°
D
D = 1m
Fig. 3.i
135°
D
boiler
D = 0,7 m
Fig. 3.j
Fig. 3.k
(CH004N0003 units only)
General instructions for all units
The characteristics of the drain line are shown in Tab. 3.e. It is also
recommended to provide a funnel to interrupt continuity in the drain
pipe and avoid ooding inside the appliance. compactSteam is equipped
with a mixing valve that, by opening at the same time as the drain
pump, introduces cold feedwater into the drain line so as to guarantee a
maximum drain water temperature of 60°C (140°F).
Instant drain ow-rate 50Hz 25 l/min / 6.6 gpm
Instant drain ow-rate 60Hz 26.2 l/min / 7 gpm
Nominal connection diameter 32 mm / 1-1/4”
Drain temperature 60°C / 140°F
Tab. 3.e
1
6
2
3
4
5
Fig. 3.l
(for CH004N2003 and CHF04N2003)
Important: for all units, a distance of xxx must be ensured
without any bends, underneath the drain
Key:
1 Supply
2 Manual valve
3 External lter (recommended)
4 Drain funnel
5 Drain
6 Water ll hose
(FWH3415000 or FWH3430000)
drain water
