3.13 Wiring connections
Terminal Function Electrical specications
L1-L2-EARTH Power supply and earth connections Power supply (110 Vac single-phase 50/60 Hz or 230 Vac single-phase 50/60 Hz)
KEY Programming port Connection to programming port or supervisor
AB-AB Remote enabling input Requires a normally-open external contact;
Rmax = 300 Ohm; Vmax = 33 Vdc; Imax = 6 mAcc; humidier enabled = contact closed
IN-GND Control signal input If programmed as 0-10 V: Input impedance 10 kohm
If programmed as ON/OFF (default): Vmax = 33 Vdc, Imax = 5mA, Rmax = 300 Ohm
NC-C-NO NC alarm contact
C common alarm contact
NO alarm contact
250V; 8 A max. with resistive load; 4 A max. with inductive load
NO-C External fan relay 250V; 8 A max. with resistive load; 4 A max. with inductive load
24-GND Power supply for external humidistat 24 Vac, 2 watts
Tab. 3.m

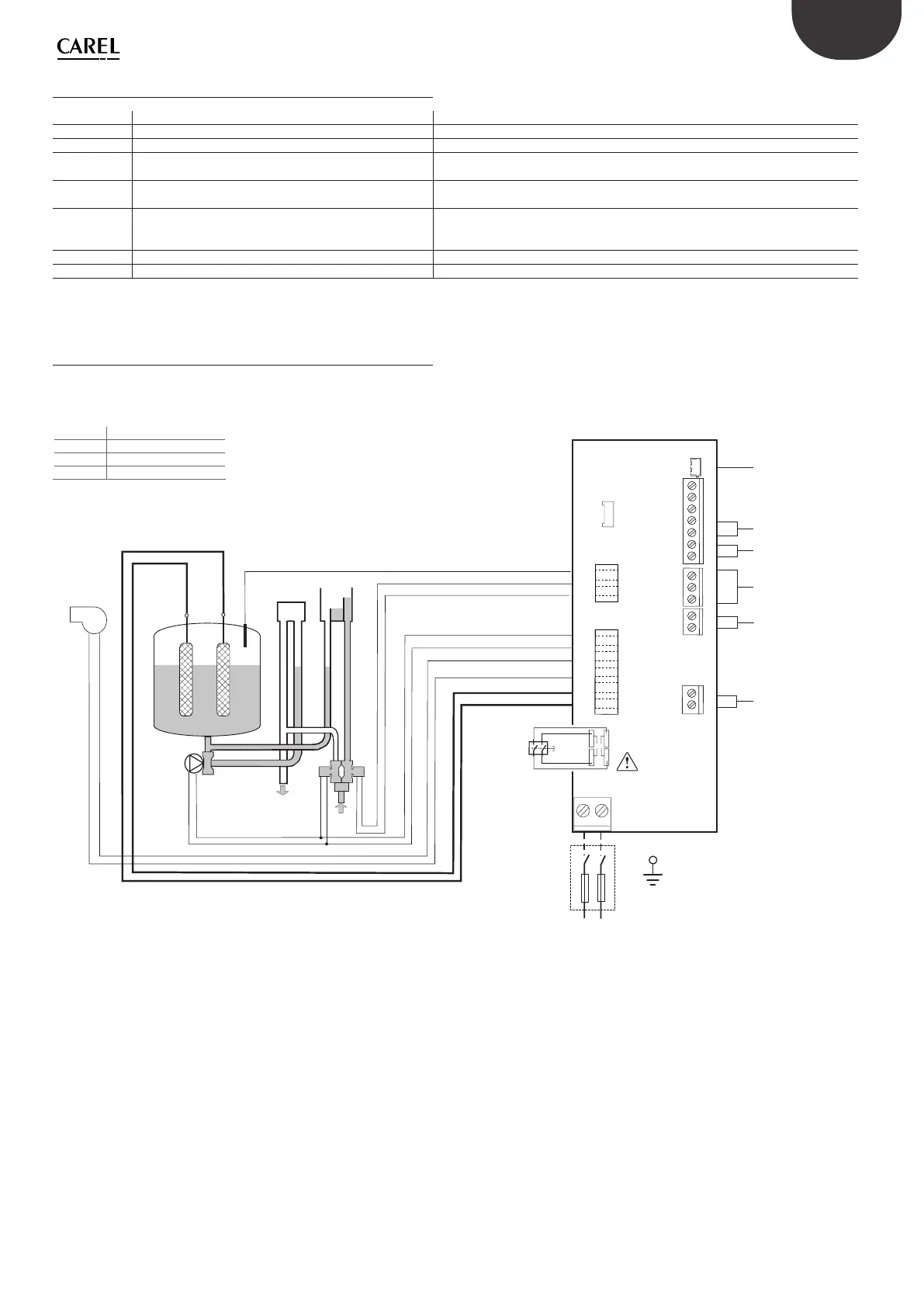

3.14 Control device wiring diagram
CH004N2003, CHF04N2003 Models
HL
DP
DT
EVF
STEAM
BOILER UNIT
WATER OUTLET
WATER
INLET
EMBEDDED
BLOWER
(only for
CHF* models)
IN
GND
AB
AB
N1
GND
N2
NO C
NC CN O
24Vac
GND
KEYBOARD
KEY
L1 L2
EXTERNAL FUSED
DISCONNECT TO
BE INSTALLED
(NOT SUPPLIED)
RESPECT LOCAL
CODES
POWER SUPPLY
(100Vac 1-PHASE 50-60 HZ
OR 230Vac 1-PHASE 50-60 HZ)
CONNECTED
TO GROUND
8
2
4
6
ON-OFF
BOTTON
N
F
PROGRAMMING PORT
AIR PRESSURE SWITCH
HUMIDISTAT
ALARM
EXTERNAL DUCT FAN
24Vac FOR
EXTERNAL
HUMIDISTATS
ALARM
EXT FAN
HL
N
EVF
DP
N
F
INT
FAN
E1
E2
Fig. 3.ad
Key
EVF Fill valve
DT Drain valve
HL High level sensor
E1, E2 Electrodes
