Carel µC2 - Page 19

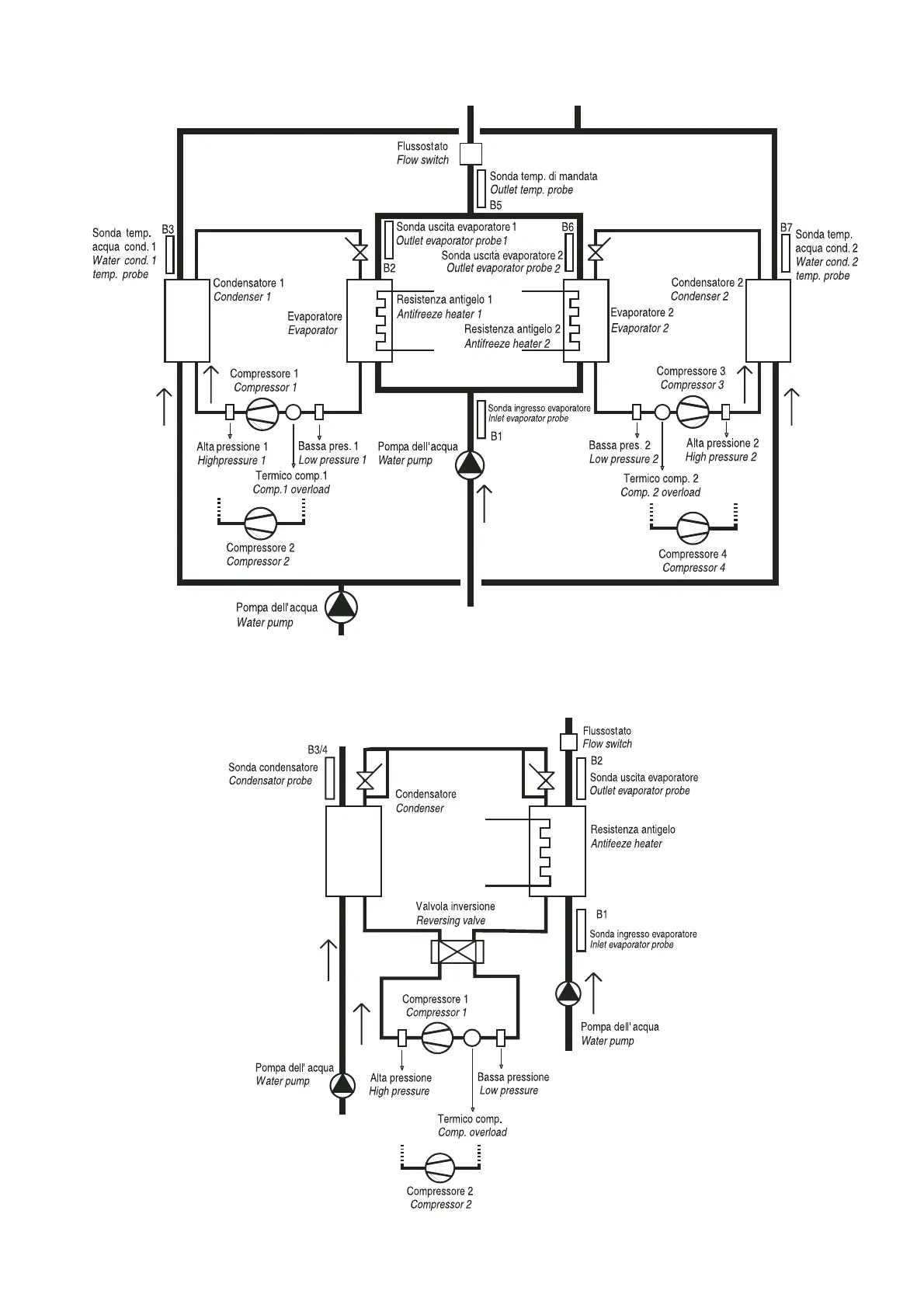

3.16 Chiller ACQUA/ACQUA, bicircuito, 1 evaporatore
3.17 Pompa di calore ACQUA/ACQUA a reversibilità
del gas, monocircuito
3.16 WATER/WATER chiller, two circuits, 1 evaporator
3.17 WATER/WATER heat pump with reversal on gas
circuit, single circuit
19
µC
2
- cod. +030220420 - rel. 2.0 - 18.10.04
Fig. 3.16.1
Fig. 3.17.1
