pRack +040000071 rel. 1.1 - 14.10.2011 16
ENG

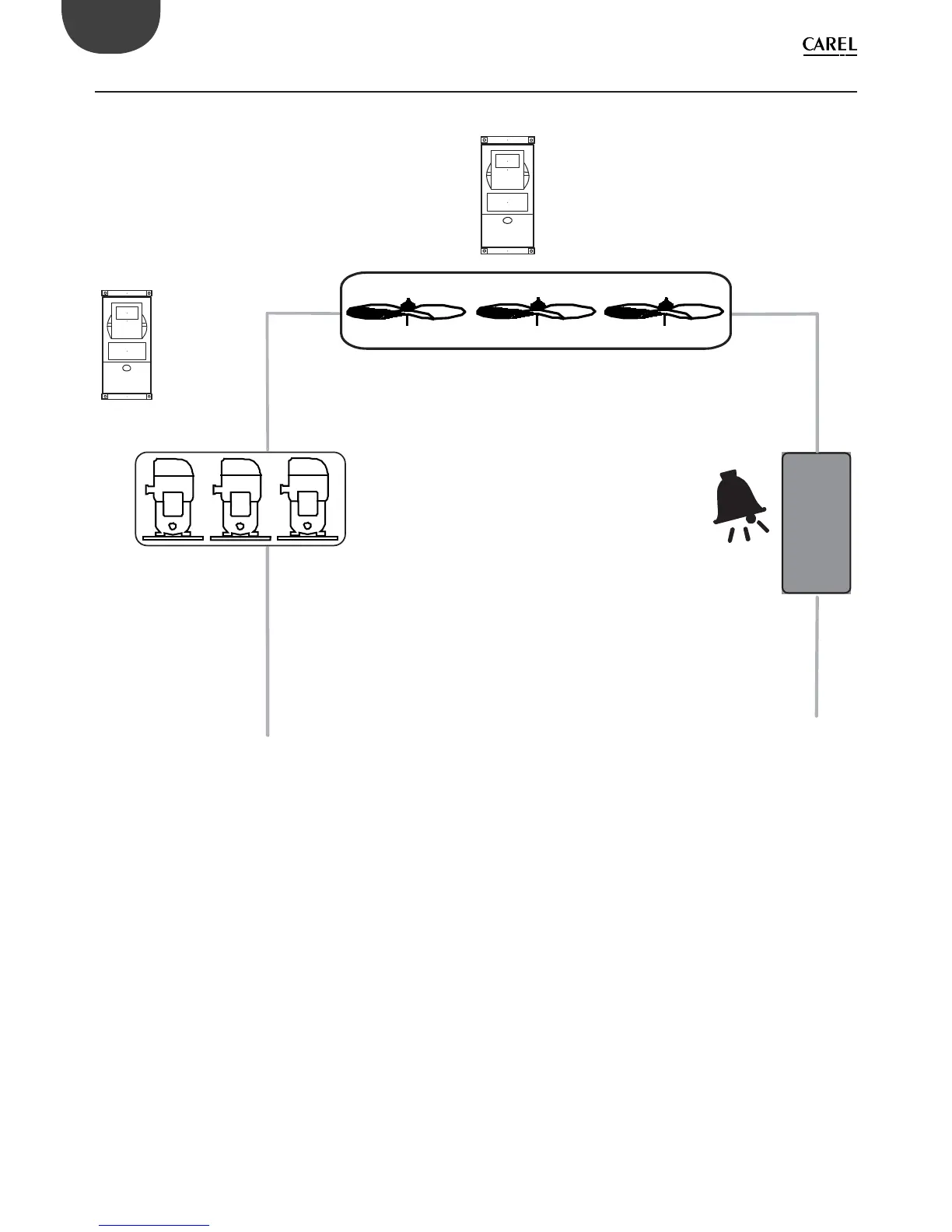

2.4 Pre-confi guration 4: RS3i
Y2
ID14
NO4
ID12
F
NO5
C1
NO1
ID3
ID4
ID5
Tsuct Psuct
B3 B1
C2
NO2
ID6
ID7
ID8
C3
NO3
ID9
ID10
ID11
Tdis
B4
Pcond
B2
Text
B5
Y1
ID13
Fig. 2.d
Description
3 reciprocating compressors, the fi rst with inverter
1 fan stage with inverter
3 alarms for each compressor: thermal overload, oil, HP/LP
1 generic alarm for condenser
HP/LP pressostats
pRack M, PRK100M
