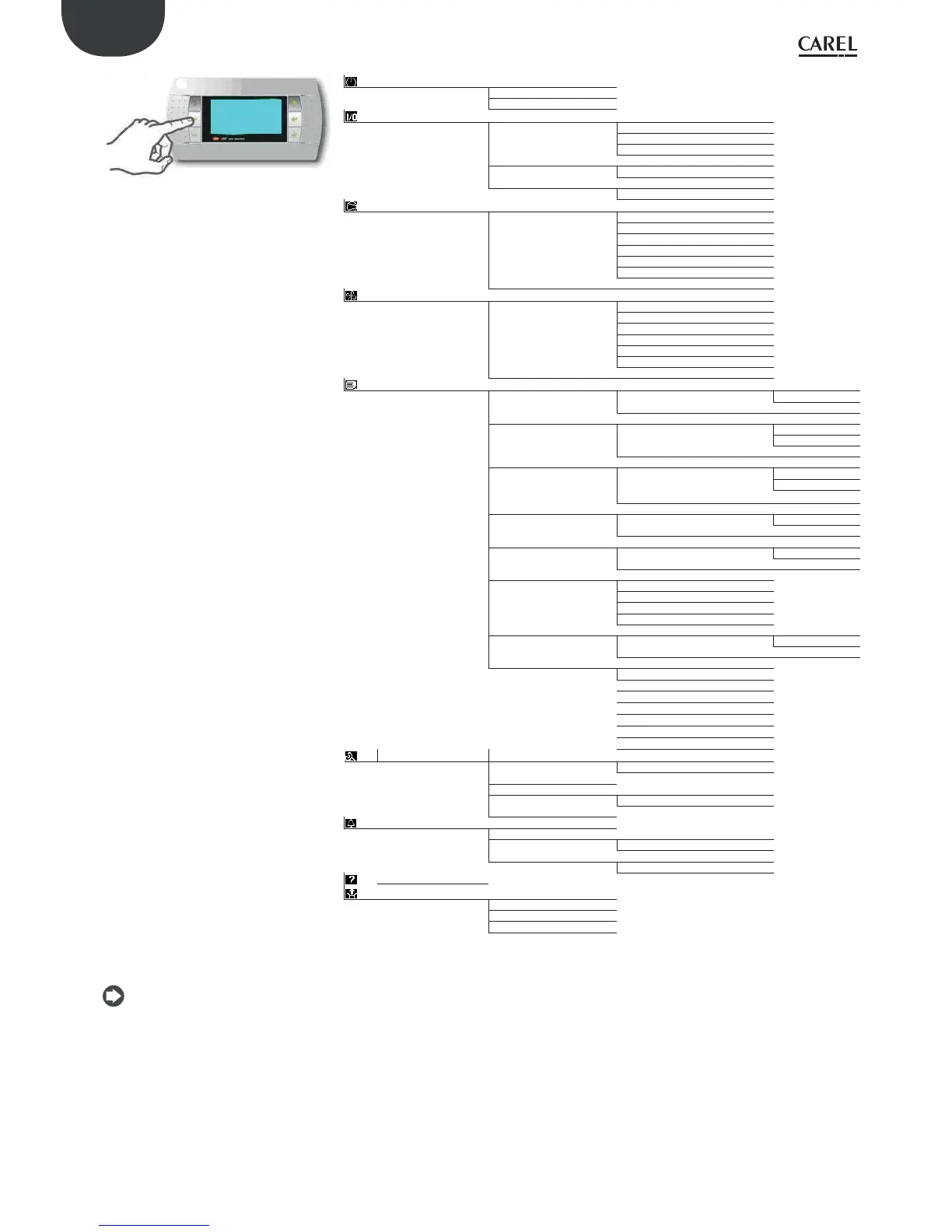

A.Unit status a.Main info
b.Set point
c.On/Off
B.In/Out a.Status a.Digital in
b.Analog in
c.Digital out
d.Analog out
b.Manual op. a.Digital out
b.Analog out
c.Test a.Digital out
b.Analog out
C.Compressors a.Line 1 (*) a.I/O status
b.Control
c.Op. hours
d.Energy saving
e.Alarms
f.Config.
g.Advanced
b.Line 2 (*) ….
D.Condensers a.Line 1 (*) a.I/O status
b.Control
c.EEV
d.Energy saving
e.Alarms
f.Config.
g.Advanced
b.Line 2 (*) ….
E.Other func. a.Oil a.Line 1 (*) a.I/O status
b.Settings
b.Line 2 (*) ….
b.Subcool a.Line 1 (*) a.I/O status
b.Settings
c.EEV
b.Line 2 (*) ….
c.Economiser a.Line 1 (*) a.I/O status
b.Settings
c.EEV
b.Line 2 (*) ….
d.Liquid inj. a.Line 1 (*) a.I/O status
b.Settings
b.Line 2 (*) ….
e.Heat recovery a.Line 1 (*) a.I/O status
b.Settings
b.Line 2 (*) ….
f.Generic func. a.Stages
b.Modulation
c.Alarms
d.Time bands
e.I/O status
g.ChillBooster a.Line 1 (*) a.I/O status
b.Settings.
b.Line 2 (*) ….
h.DSS (*) a.I/O status
b.Settings
i.EVS a.Temperature control
b.Manual management
c.I/O status
d.Control
e.Valve configuration
f.Driver configuration
F.Settings. a.Clock aTime bands
b.Adjust
b.Languages
c.BMS a.Line 1 (*)
b.Line 2 (*)
d.Password
G.Safety a.Log
b.Prevent a.Line 1 (*)
b.Line 2 (*)
c.Alarm config. a.Line 1 (*)
b.Line 2 (*)
H.Info
a.Pre-configurationsI.Setup
b.Wizard
c.Advanced config.
d.Default
(*) this menu level is only visible for system confi gurations with two lines.
Note:
• The fi gure illustrates the maximum menu confi guration visible with
the Manufacturer password. If accessing with the User or Maintenance
password, only the menu items available are visible
• For some menu items, access is possible with diff erent password levels
(e.g. I/O status), but the information available on the screens changes.
