Carel UE001 User Manual

11
ENG
“UEX-PLUS” +0300040EN - rel. 1.4 - 25.09.2015
installeruserservice

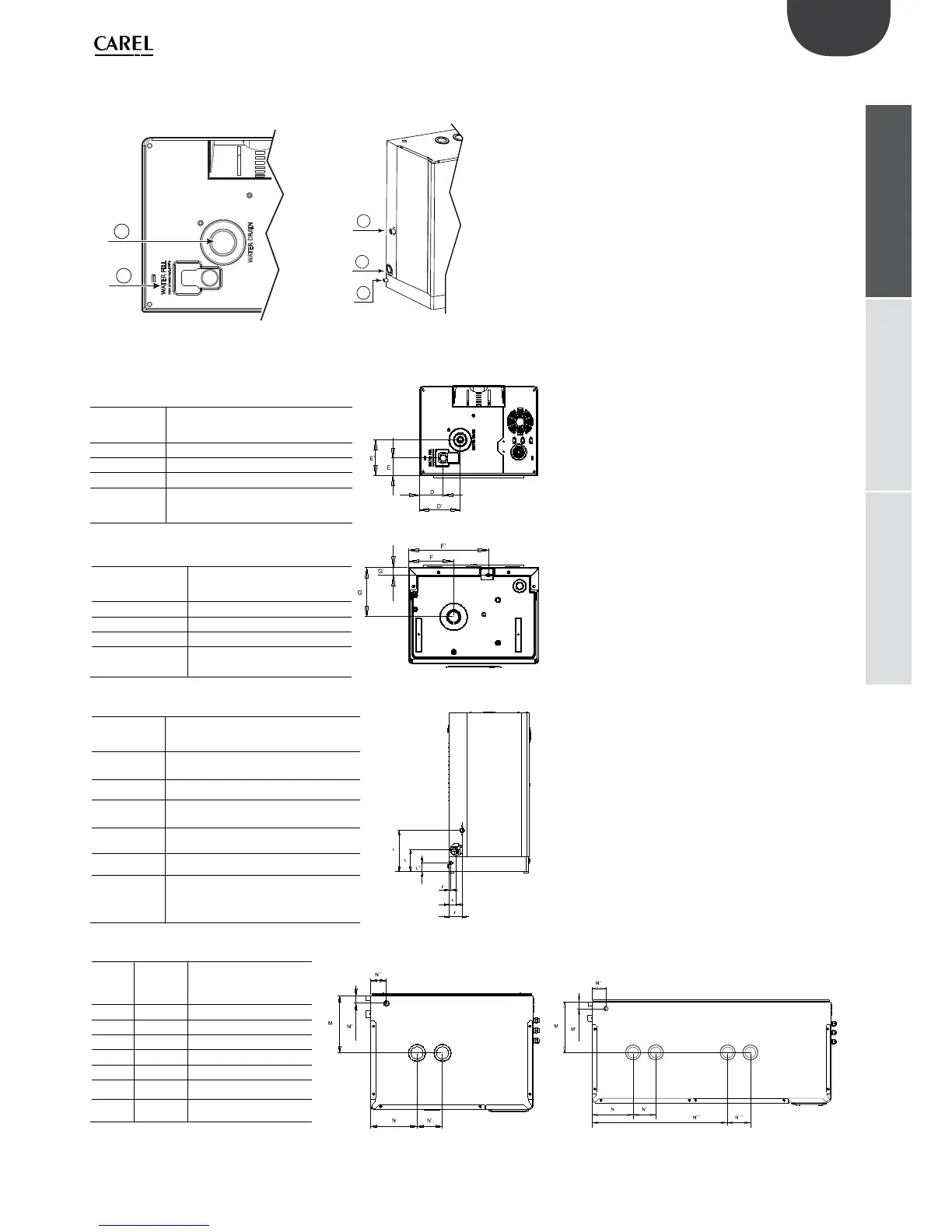

Fittings provided for the water connections:
Models UE001…UE018 Models UE025…UE130
B
A
A
B
C
Key:
A. supply water inlet
B. drain water outlet
C. bottom tank drain water outlet (models UE025
to UE130 only)
Fig. 2.b
Hydraulic interfaces dimensions
Interfaces dimensions
drain/ ll
dimensions
mm (inc)
UE001 a UE018
D 72.6 (28.6)
D’ 125.4 (49.4)
E 52.6 (20.7)
E’ 107.5 (42.3)
Interfaces dimensions
steam outlet and condensed drain
dimensions
mm (inc)
UE001 a UE018
F 126.7 (5)
F’ 224 (8.82)
G 137.9 (5.43)
G’ 21.7 (0.85)
Interfaces dimensions drain/ ll
dimensions
mm (inc)
UE025 a
UE045
UE045* a
UE065
UE090 a
UE130
I 40 (1.58)
I’ 72 (2.83) 60(2.36)
I’’ 10.2 (0.4)
L 123.2 (4.85)
L’ 231.2 (9.10)
L’’ 49.1 (1.93)
Interfaces dimensions
steam outlet and condensed drai
dimen.
mm
(inc)
UE025 a
UE045
UE045* a
UE065
UE090 a
UE130
M 172 (67.7) 223.7 (88.1)
M’ 30.2 (11.9) 30.2 (11.9)
N 181 (71.3) 181 (71.3)
N’ --- 100 (39.4)
N’’ 55 (21.7) 61 (24.0)
N’’’ --- --- 641(25.3)
N’’’’ --- --- 100 (39.4)
* modells 230 Vac only
