Carel UE001 User Manual

8
ENG
“UEX-PLUS” +0300040EN - rel. 1.4 - 25.09.2015
installeruserservice
4. secure the appliance to the wall through the hole in the centre on the
rear of the unit. For the weights and dimensions see Figs. 1.a, 1.b, 1.c.

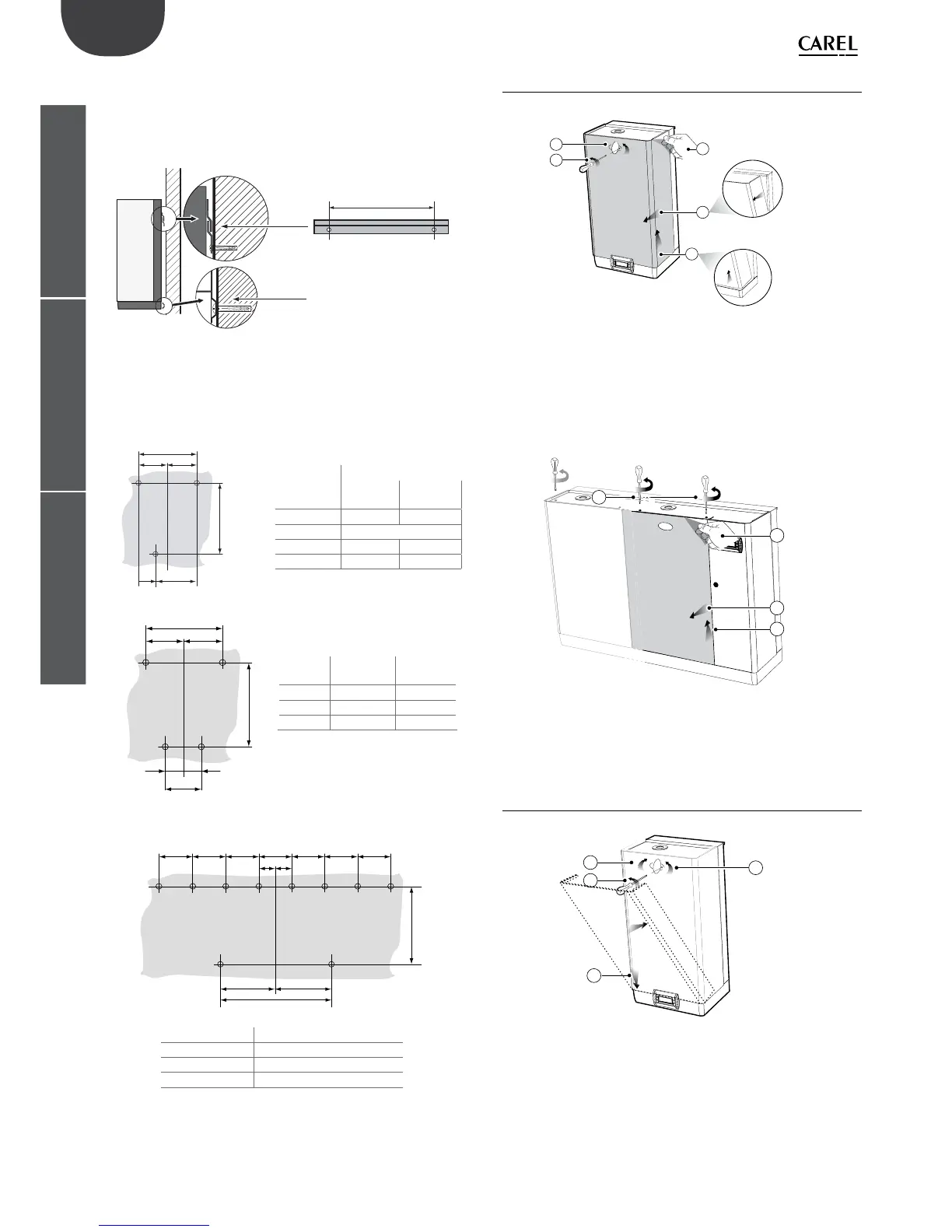

Wall-mounting
Models UE001 to UE130
bracket
X
Fig. 1.e
Spacing of the holes on the wall
Models UE001 to UE018
distance
mm (in)
Models
UE001 to
UE008
UE009 to
UE018
X 270 (10.7) 270 (10.7)
Y 580 (22.8)
Z 107 (4.2) 107 (4.2)
Z’ 163 (6.4) 163 (6.4)
Fig. 1.f
Models UE025 to UE065
X
Y
Z
=
==
=
distance
mm (in)
UE025 to
UE045
UE045* to
UE065
X 445 (17.5) 535 (21.0)
Y 655 (25.8) 730 (28.7)
Z 250 (9.8) 340 (13.4)
* 230 Vac models only
Fig. 1.g
Models UE090 to UE130
XX
Y
XX
X
XX
==
==
Fig. 1.h
distance mm (in) Models UE090 to UE130
X 150 (5.9)
Y
735 (28.9)
Z 850 (33.5)
1.6 Removing the front cover
Models UE001 to UE018
1
2
3
4
5
Fig. 1.i
1. turn oval-shaped label with the Carel logo, revealing the head of the
earth screw below;
2. remove the screw using a screwdriver;
3. hold the cover by the sides and tilt;
4. remove the cover by moving to the bottom;
5. remove the protective fi lm.
Models UE025 to UE130
1
3
2
4
Fig. 1.j
1. remove the screws from the top of the humidifi er using a screwdriver;
2. hold the cover/covers from the top and lift it around 20 mm (0.79”);
3. remove the cover/covers by moving it/them forwards;
4. remove the protective fi lm (on all the outside sur faces of the humidifi er).
1.7 Fitting the front cover
Models UE001 to UE018
1
3
4
2
Fig. 1.k
1. turn the red oval-shaped plate with the CAREL logo, revealing the
fastening hole below;
2. slip the cover onto the frame (keeping it slightly oblique), until it rests on
the rear edges, paying attention to the positioning holes on the side;
3. tighten the earth screw using a screwdriver;
X
Y
Z Z’
==
