Carel UE001 - Wiring Diagram: Three-Phase UE090-UE130

41
ENG
“UEX-PLUS” +0300040EN - rel. 1.4 - 25.09.2015
installeruserservice

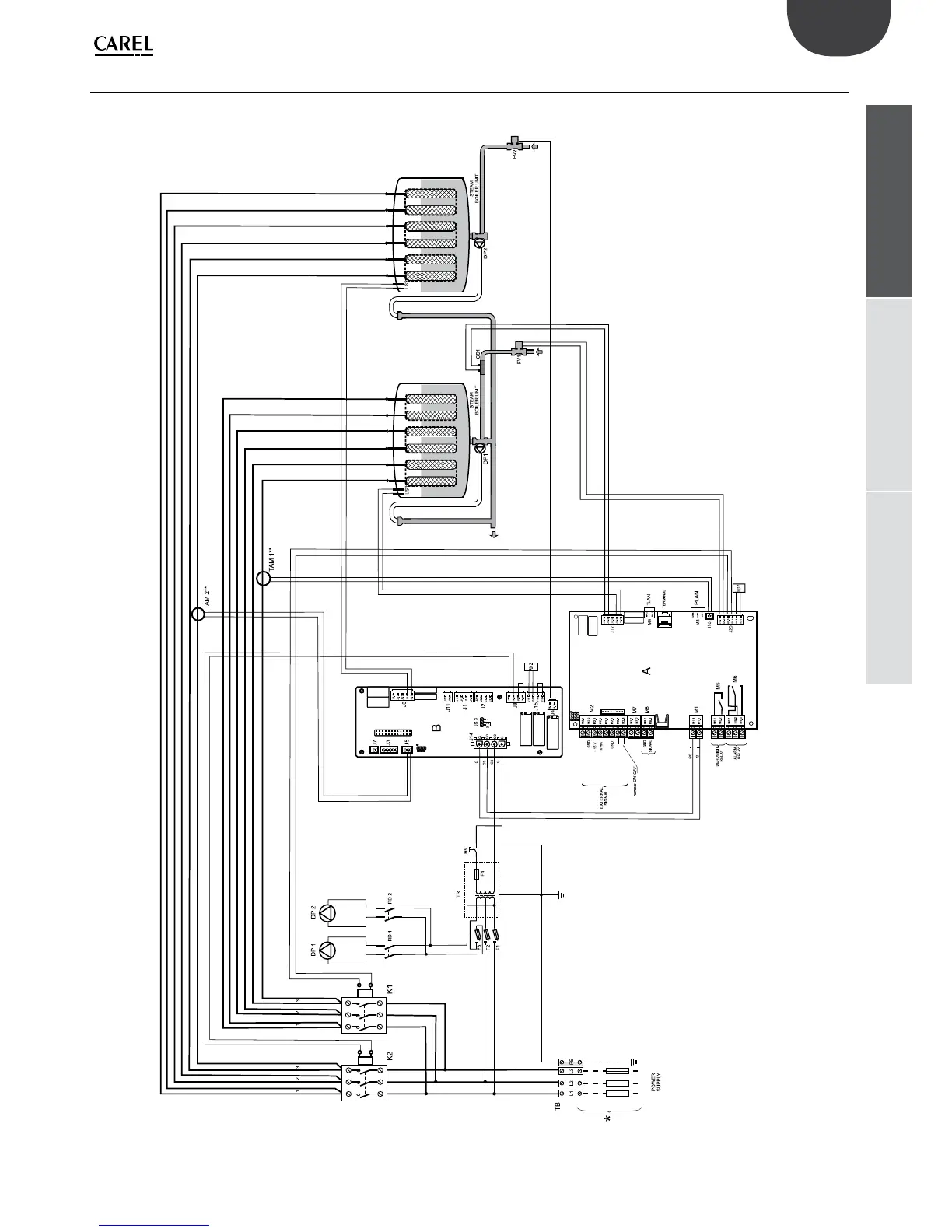

12.4 Diagram of three-phase models UE090 to UE130
PRODUCTION REQUEST FOR SLAVE UNITS
main probe / control sensor
limit probe / limit sensor
supervisory network
J19
(**) Attention: for TAM confi gurations and connections see par. 13.1
key:
TB terminal block
K contactor
F1-F2 primary fuses
F3 fuse protection drain pump
F4 secondary fuses
TR transformer
MS manual switch
FV1-FV2 fi ll valve
DP1-DP2 drain pump
LS1-LS2 high level electrodes
CS conductimeter
TAM1
TAM2
external TAM
