The Deployment Details window shows further information about the deployment (see section 14.3.1).
The Project tab contains controls to turn deployments on and off in the 3D View window (see section 14).
12.1.6 Bounding box
A bounding box appears around the active station or deployment. The bounding box shows the geographic limits
of the data.
Which dataset is ‘active’ at any given time is determined by:
• The deployment which is currently in progress.
• Tapping on an item in the 3D View.
• Selecting an entity in the Project tab.
12.1.7 Imported data
Any pre-existing data imported into the project can be viewed alongside data generated by the Boretrak2 within a
project.
The Project tab contains controls to turn imported data on and off in the 3D View window (see section 14.1.1).
12.2 3D View tabs
Two 3D Views can be open but only one is ‘active’ and displayed in the 3D View window at any time. Each 3D
View is contained within a tab which is arranged, by default, along the left-hand side of the screen. For example,
you may wish to have one view set as a top down, orthographic view, and another a perspective view for free
rotation.
The active 3D View tab is identified by a blue highlight.

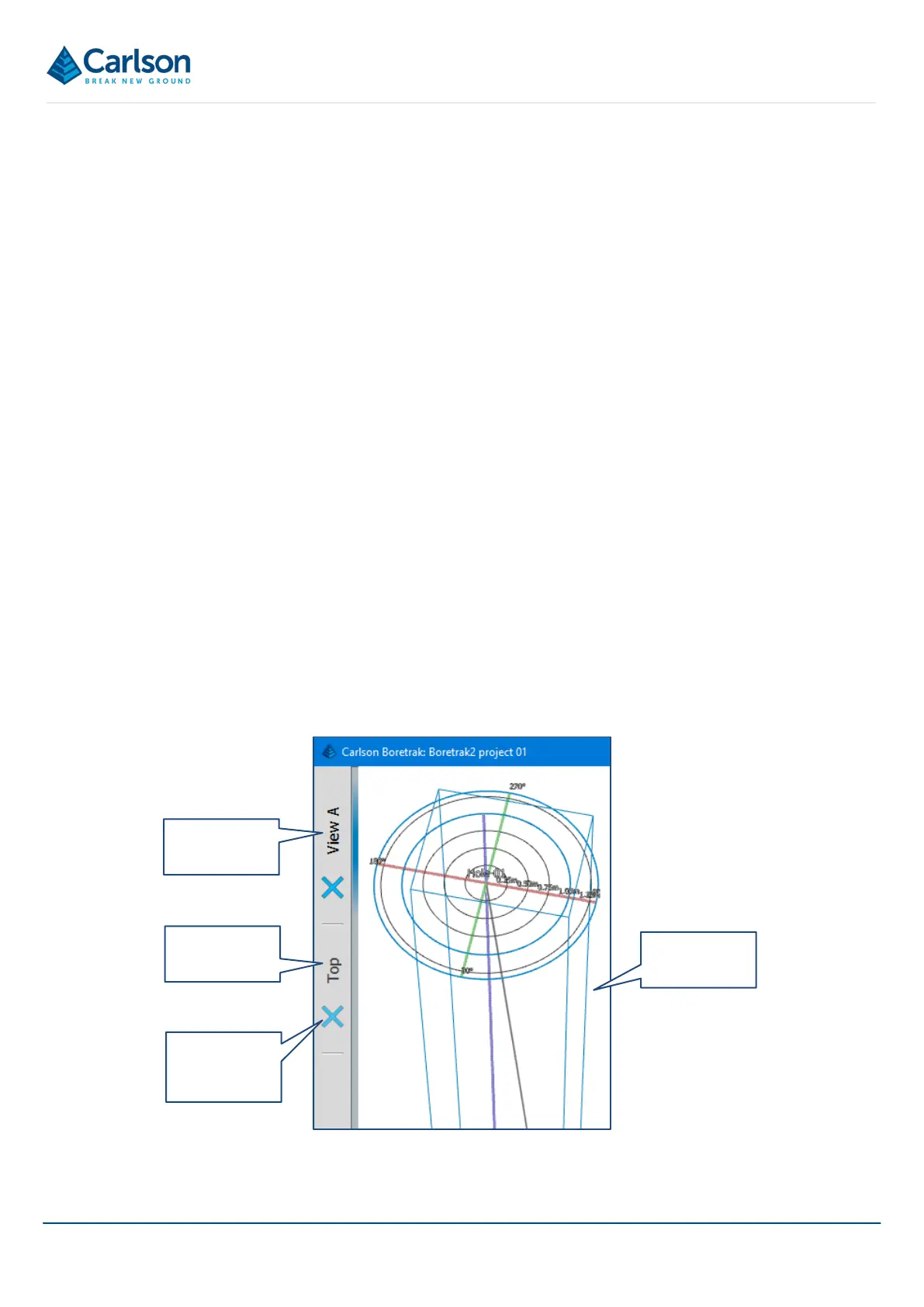

3D View
3D View tab
Active 3D
View tab
Delete 3D
View button
