Carlton SP4012 - Jackshaft Assembly

SP4012 BOOM ASSEMBLY
30-SP4012K-BOOMASY_c.doc
90

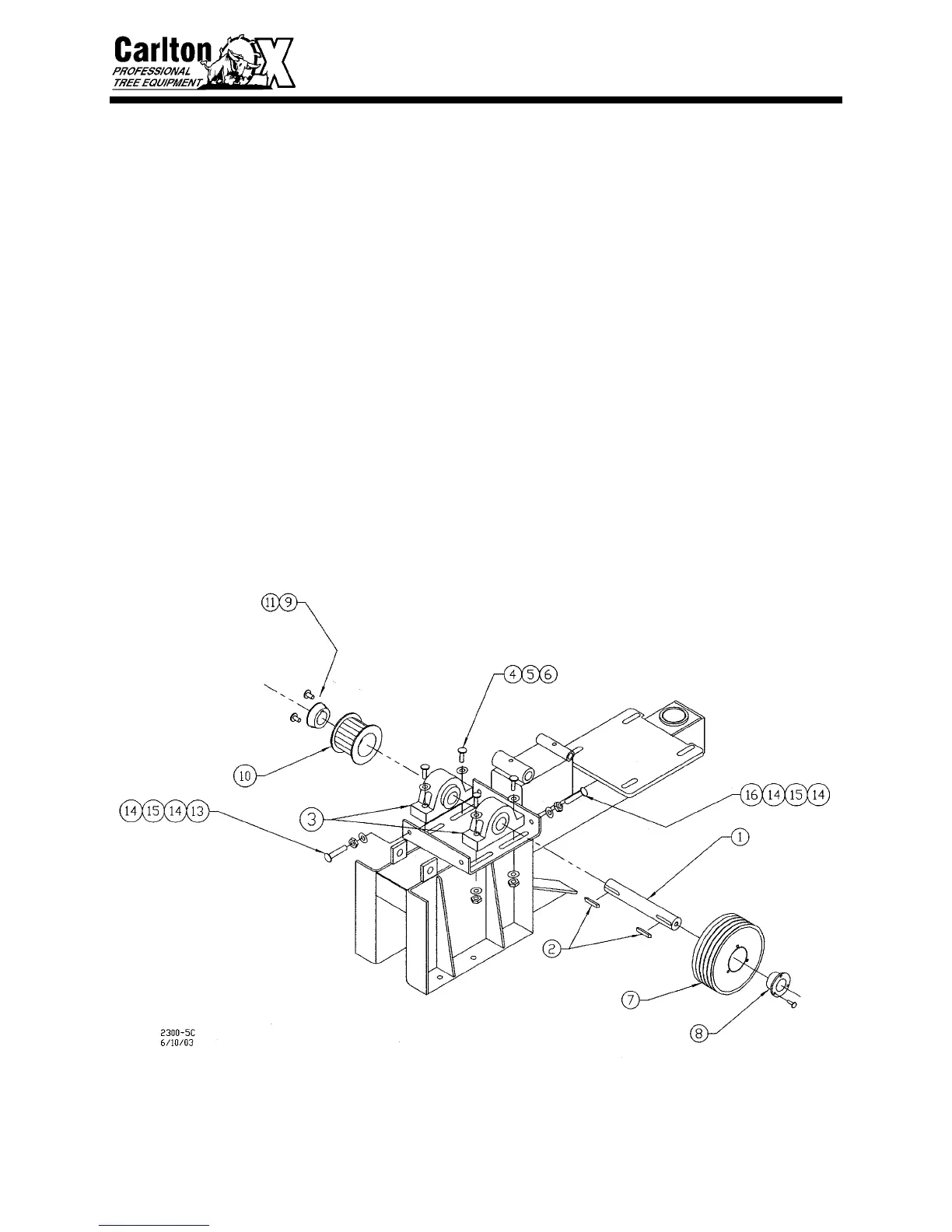

JACKSHAFT ASSEMBLY
ITEM NO PART NO DESCRIPTION QTY
1 2300185A Jack Shaft TL - 1 7/16" 23/25 1
2 A160T01 Key - 3/8 sq. x1 1/2 2
3 0500112 Bearing - 1 7/16" - Link Belt 2
4 0150106F 1/2-13 X 2 1/4 HCS 4
5 0150304 1/2 Flat Washer 4
6 0150206
1/2-13 Lock Nut 4
7 0250102 Sheave –25 JS 4/3V8.0 1
8 0250120 Bushing - 25 JS,CW - SK 1 7/16" 1
9 0250115F 2012 1 7/16" Taper Lock Bshn 1
10 0250115A PC Sprkt 8M-40S-62 Taper Lock 1
11 7/16"-14 x 1 1/2" SHCS 2
12 - - -
13 0150114 1/2-13 x 3" Square Head Screw 2
14 0150205 1/2-13 Hex Nut 8
15 0150407 1/2 Lock Washer 8
16 0150115 1/2-13 x 4" Square Head Screw 2
