SP4012 MACHINE CONTROLS
17
SAFETY
• NEVER SERVICE A MACHINE WITH THE ENGINE RUNNING, SEVERE
PERSONAL INJURY COULD OCCUR. TURN ENGINE OFF THEN REMOVE
IGNITION KEY AND DISCONNECT POSITIVE BATTERY CABLE TO AVOID
STARTING MACHINE ACCIDENTALLY.
• CUTTER WHEEL MUST BE DISENGAGED BEFORE TURNING ENGINE
ON/OFF AND BEFORE SERVICING A MACHINE. OTHERWISE SEVERE
PERSONAL INJURY COULD OCCUR AS WELL AS MACHINE DAMAGE.
• ALL MACHINE PARTS MUST COME TO A COMPLETE STOP AND HAVE
TIME TO COOL COMPLETELY BEFORE SERVICING A MACHINE OR
SEVERE INJURY COULD OCCUR, POSSIBLY SERIOUS BURNS AND/OR
DISMEMBERMENT.
• PLACE THE CUTTER WHEEL ON THE GROUND WHEN PERFORMING
SERVICE ON A MACHINE.
OPTIONAL REMOTE CONTROL
CONVERTING FROM WIRED TO
RADIO TRANSMITTER
• To change from a wired to a radio
(wireless) transmitter, remove the lower
cover on the control box. There are 2
bolts on each side.
• You can now see the wired remote
control receiver. Remove the receiver
cover. Drill holes in this cover for
attaching the radio control receiver;
make sure the hole locations match the
bolt locations on the radio receiver.
• Bolt the radio receiver to the cover and
then replace the cover on the wired
remote receiver inside the control box.
• Use the wiring and connector diagrams,
in the radio control manual included at
the back of this manual, to wire directly
to the appropriate contacts of the
machine electronics. Contact your
Carlton dealer if you need assistance not
the radio control manufacturer.
• The radio transmitter and receiver will
be programmed at the factory when
purchased as a set.

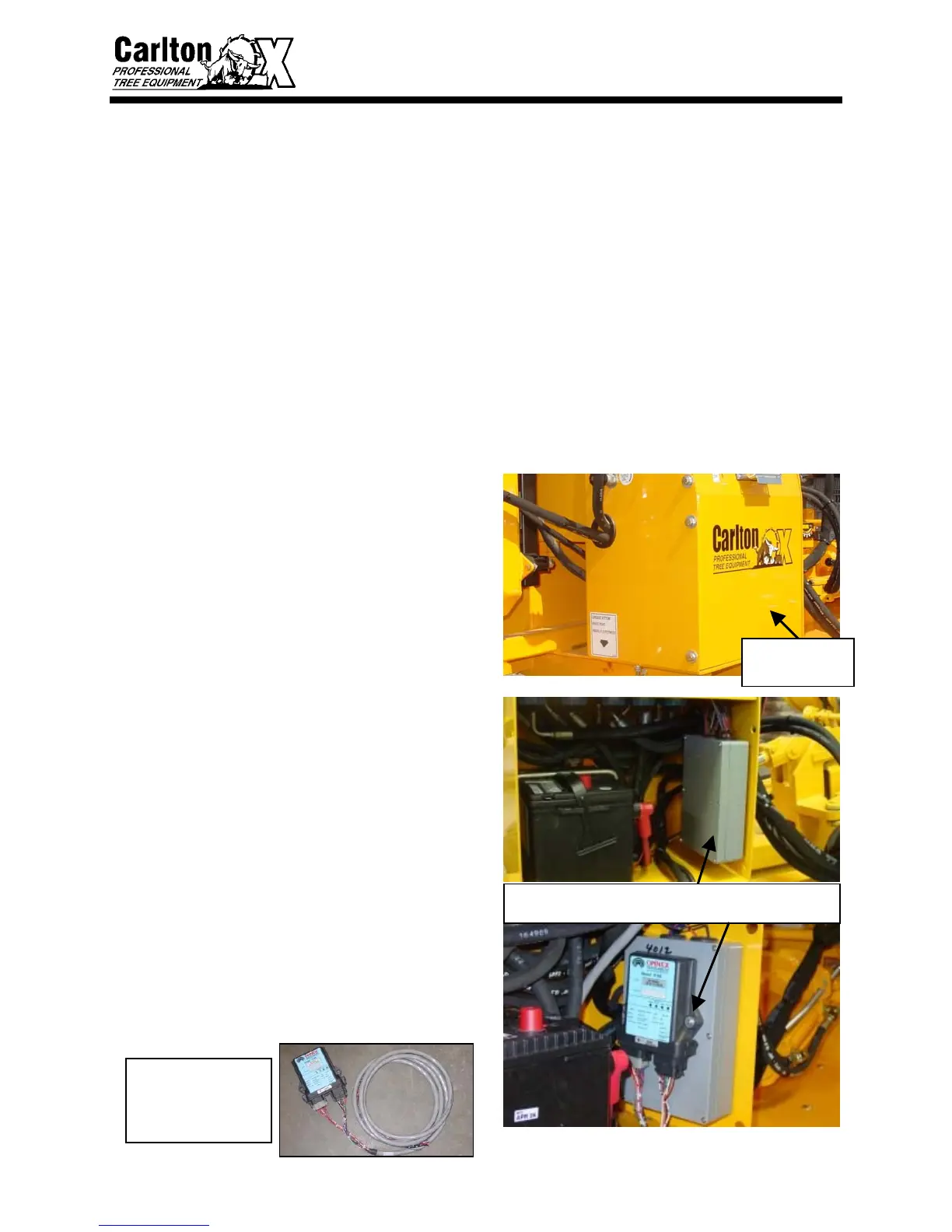

THE RADIO CONTROL
RECEIVER, SHOWN AT
THE RIGHT, MUST BE
INSTALLED IN THE
CONTROL BOX
REMOVE THE
CONTROL BOX
BOTTOM COVER
REMOVE THE COVER ON THE REMOTE RECEIVER AND
DRILL HOLES TO ATTACH THE RADIO RECEIVER
To Next Page
