SP4012 SERVICING BELTS
33
REPLACING V-BELT
SAFETY
• NEVER SERVICE A MACHINE WITH THE ENGINE RUNNING, SEVERE
PERSONAL INJURY COULD OCCUR. TURN ENGINE OFF THEN REMOVE
IGNITION KEY AND DISCONNECT POSITIVE BATTERY CABLE TO AVOID
STARTING MACHINE ACCIDENTALLY.
• CUTTER WHEEL MUST BE DISENGAGED BEFORE TURNING ENGINE
ON/OFF AND BEFORE SERVICING A MACHINE. OTHERWISE SEVERE
PERSONAL INJURY COULD OCCUR AS WELL AS MACHINE DAMAGE.
• ALL MACHINE PARTS MUST COME TO A COMPLETE STOP AND HAVE
TIME TO COOL COMPLETELY BEFORE SERVICING A MACHINE OR
SEVERE INJURY COULD OCCUR, POSSIBLY SERIOUS BURNS AND/OR
DISMEMBERMENT.
• PLACE THE CUTTER WHEEL ON THE GROUND WHEN PERFORMING
SERVICE ON A MACHINE.

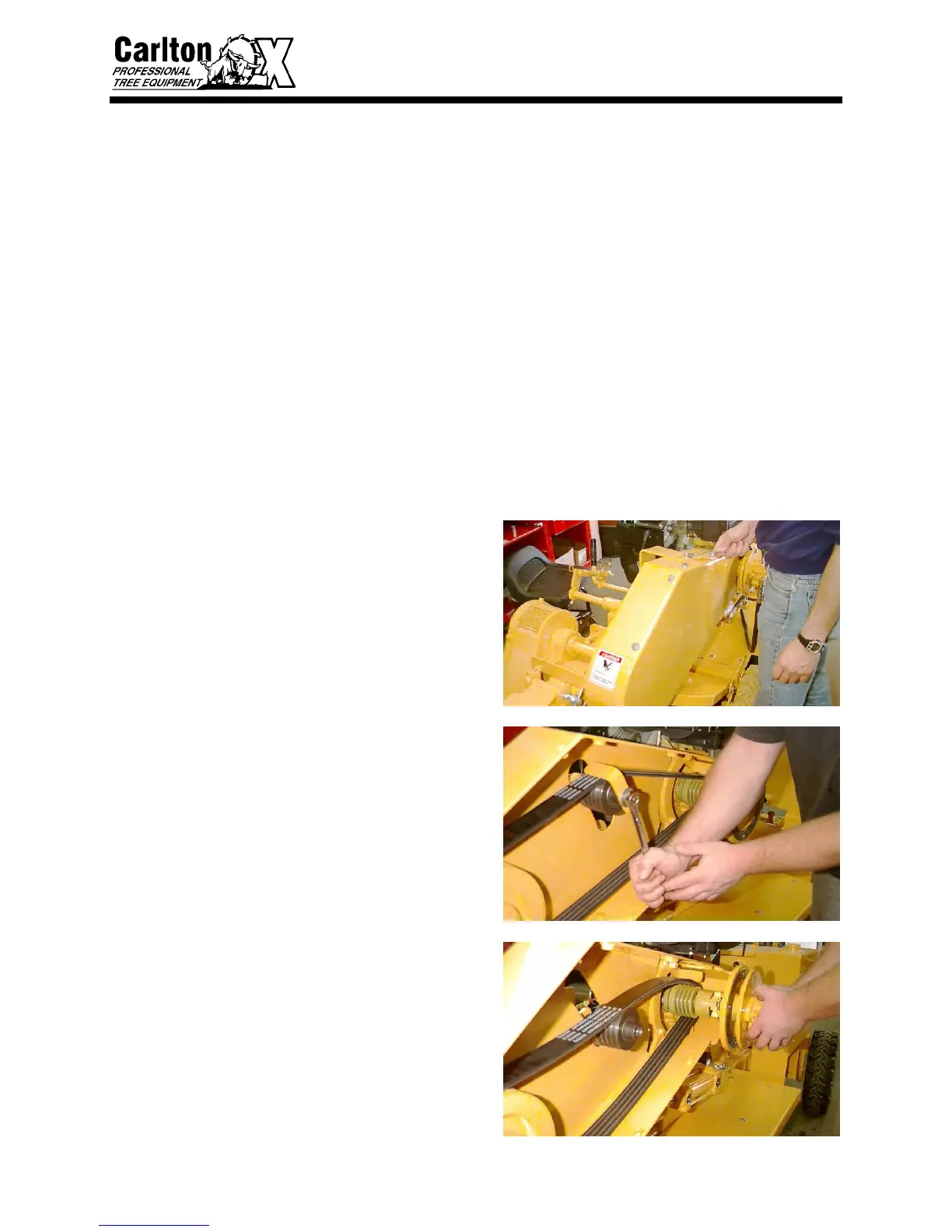

• Remove V-belt guard cover.
• Remove belt keeper on idler pulley and
loosen belt keepers at engine pulley.
• Remove pump drive. Only remove the
bolts at 12 o’clock and 6 o’clock.
Remove the pump plate with the pump
still attached, not necessary to remove
and cap hoses.
