SP4012 HYDRAULIC ASSEMBLY
67

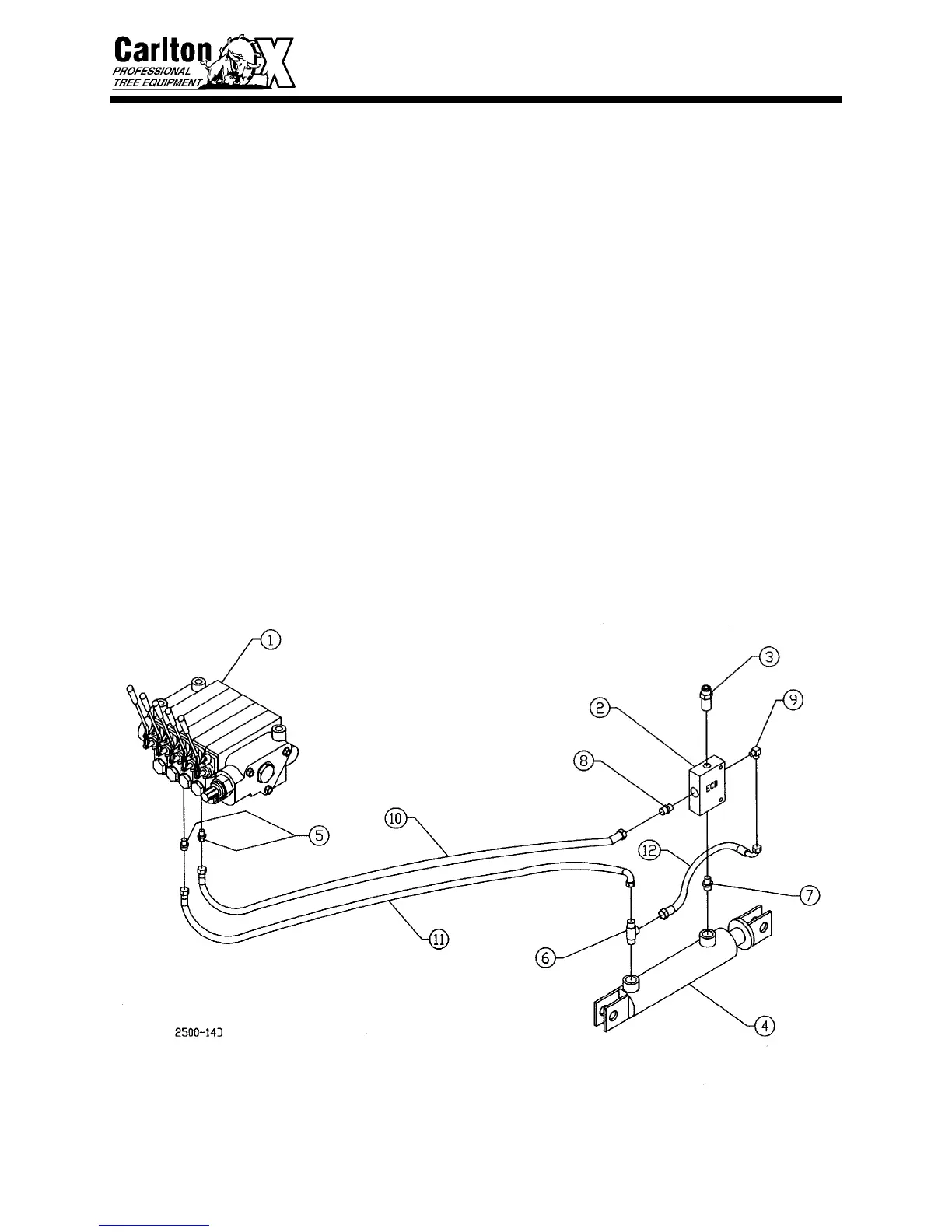

LIFT HYDRAULIC ASSEMBLY
ITEM NO PART NO DESCRIPTION QTY
1 0300199 Work Section 1
2 0300122 Lift Valve Body - ECB 1
3 0300120 C/B Cartrdige Valve - CBCA-LHN 1
4 0300105F Hydraulic Cylinder - 3x12 1
5 0300257 3/8 JIC- 1/2 ORB - 6400-6-8 2
6 0300224 1/2FP-1/2FP-1/2MPTee5602-8 1
7 0300231 1/2MP-3/8MP Nipple - 5404-8-6 1
8 0300210 3/8 MP - 3/8 JIC - 2404-6-6 1
9 0300213 3/8 JIC - 1/4 MP 90 - 2501-6-4 1
10 H250410 Hose Assembly 1
11 H250413 Hose Assembly 1
12 H250412 Hose Assembly 1
