18
MAX. TEMP AT DISCHARGE IS
275°F, 6° (135°C, 150mm) FROM
SERVICE VALVE, 250°F (120°C)
PREFERRED WITH POE OILS
BEARING HEAD
(PUMP END-PE)
CRANKCASE AT OIL SUMP.
100°F TO 130°F (38° TO 54°C)
MEASURE BELOW OIL LEVEL
ON CRANKCASE. MAXIMUM
ALLOWABLE TEMP.:165°F (74°C)
RETURN GAS TEMP. (RGT) FOR
MEDIUM TEMP. AND DUTY
65°F (18°C) MAXIMUM.
PREFERRED RGT FOR LOW TEMP. DUTY
35°F TO 50°F (2°C TO 10°C)
SUCTION VALVE
LOCATION
SIGHT GLASS
(”D” LOCATION SHOWN)
OPERATING OIL LEVEL
RECOMMENDATIONS:
“D” COMPRESSORS -
1/4 TO 3/4 GLASS
“E” COMPRESSORS -
1/8 TO 3/8 GLASS
NOTE: SIGHT GLASS OF ALL 06E
COMPRESSORS LOCATED ON
PE FACE OF COMPRESSOR.

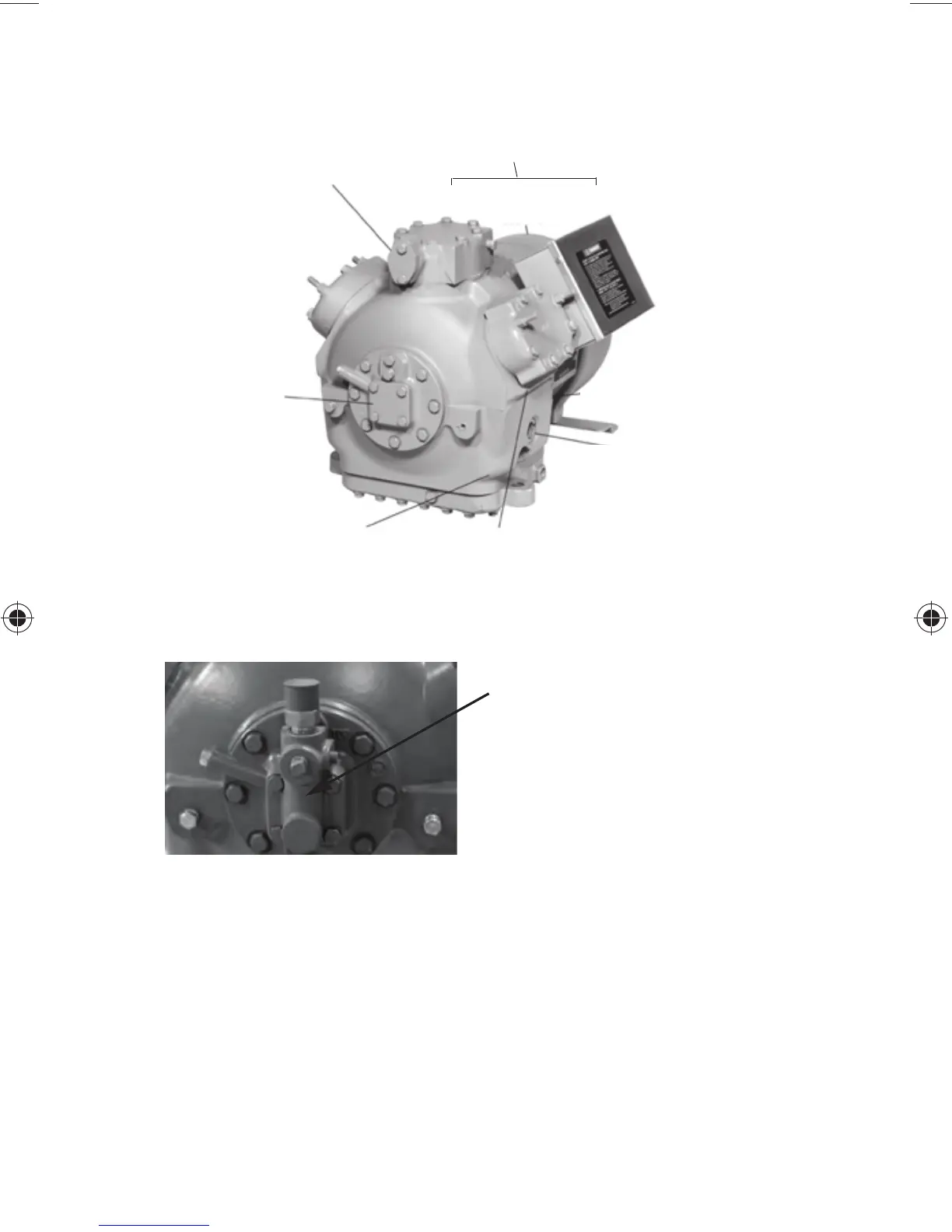

Fig. 1A — Typical 06D, E Operating Limits
FACTORY INSTALLED OIL PRESSURE
SENSOR BLOCK FOR AVAILABLE OIL
PRESSURE SAFETY SWITCH (OPSS).
FOR MORE INFORMATION SEE SECTION 3.12.
