SUCTION VALVE LOCATION
MAXIMUM PREFERRED RGT
IS 35°F TO 50°F (2°C TO 10°C)
1/4" NPT OIL PUMP
PRESSURE CONNECTION
SEE PAGE 72 SECTION 3.9
OIL LEVEL SIGHT GLASS FOR 06CC (16 TO 37 Cfm)-
1/4 TO 3/4 SIGHT GLASS (SIGHT GLASS FOR “D” SIZE
[16 TO 37 Cfm] IS ON THE SIDE OF THE COMPRESSOR
BODY) FOR 06CC (50 TO 99 Cfm) - 1/8 TO 3/8 SIGHT GLASS
DISCHARGE VALVE LOCATION
MAXIMUM TEMP. AT
DISCHARGE IS 250°F, 6° (120°C,
150mm) FROM SERVICE VALVE
CRANKCASE OIL SUMP
100°F TO 130°F (38°C TO 54°C)
MEASURE BELOW CRANKCASE
OIL LEVEL, MAXIMUM
ALLOWABLE 165°F (74°C)

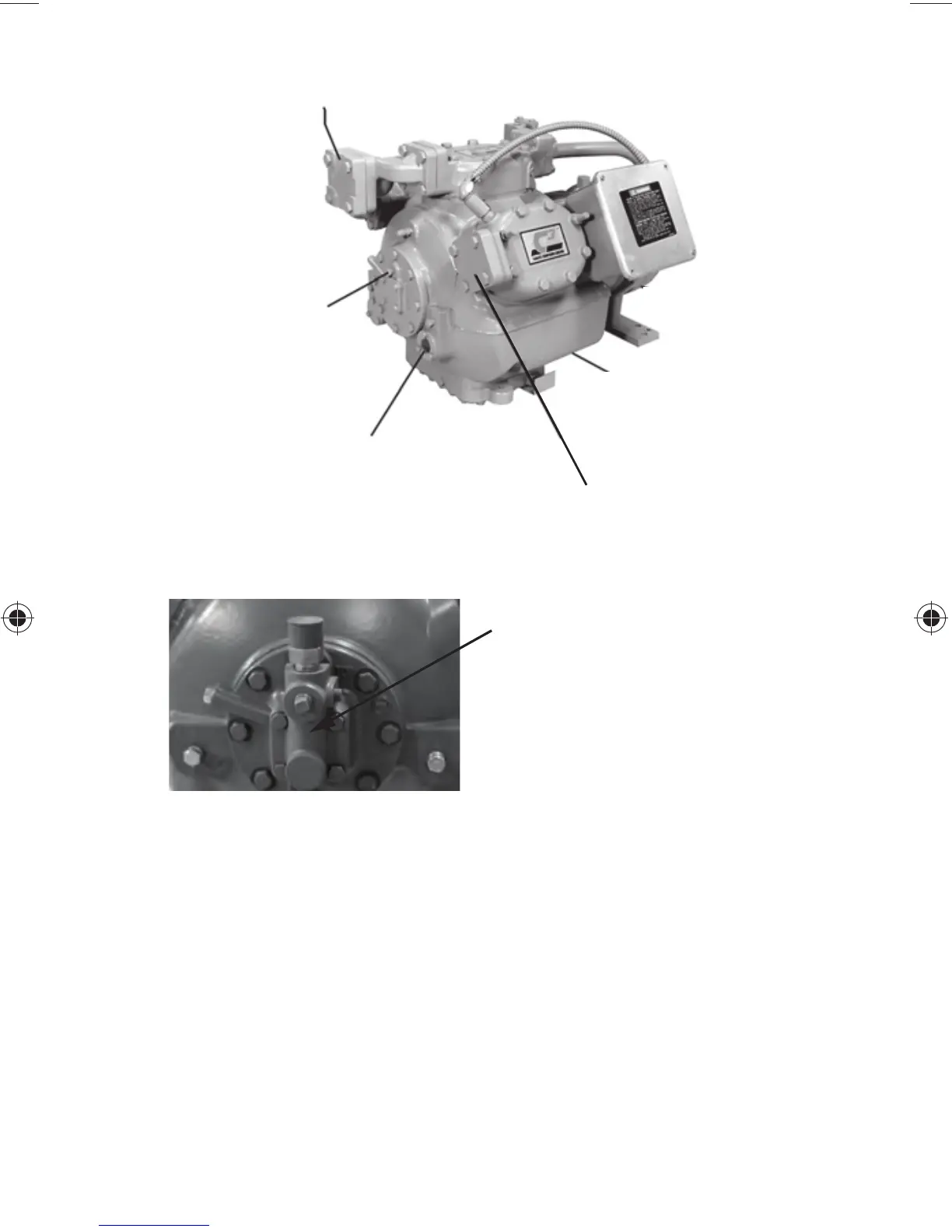

Fig. 1B — Typical 06CC Operating Limits
FACTORY INSTALLED OIL PRESSURE
SENSOR BLOCK FOR AVAILABLE OIL
PRESSURE SAFETY SWITCH (OPSS).
FOR MORE INFORMATION SEE SECTION 3.12.
