EN 9
03. APPLIANCE OVERVIEW

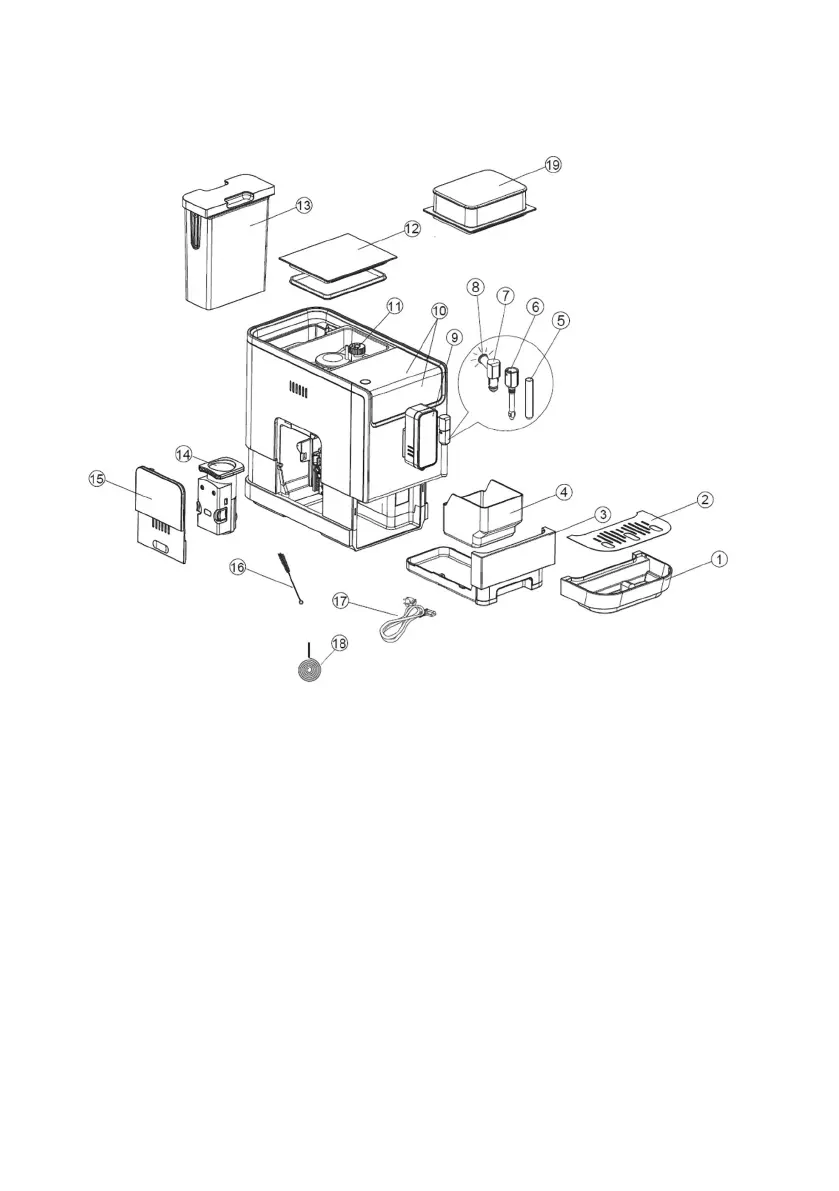

GENERAL DESCRIPTION
1. External drip tray 10. Control panel
2. Drip tray cover 11. Coffee bean container
3. Internal drip tray 12. Coffee bean container cover
4. Coffee grounds container 13. Water tank
5. Metal tube 14. Brewer
6. Steam nozzle 15. Service door
7. Nozzle cover 16. Cleaning brush
8. Steam indicator light 17. Power cord
9. Adjustable coffee spout 18. Needle
