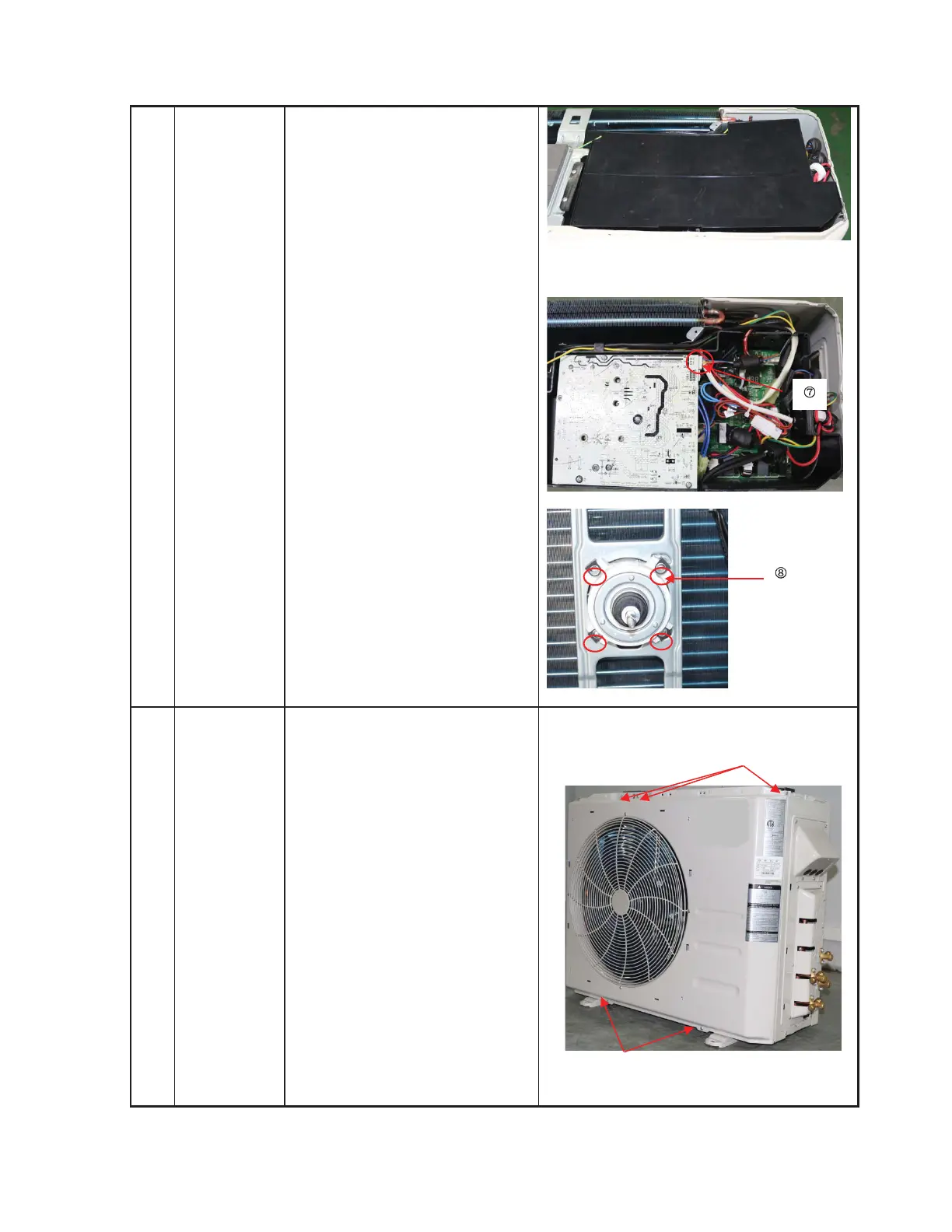

DISASSEMBLY INSTRUCTIONS SIZE 18 (CONT)
6)
7)
8) Remove the fan motor after
unfastening the screws (4).
2 Panel plate How to remove the panel plate.
1) Remove the front panel
screws (6) then remove the
front panel.
Remove the electrical
control box cover.
Disconnect the fan motor
connector CN14 (3p, white)
from the IPM board.
Front panel screws
Front panel screws
