76 Specifications subject to change without notice. 38MGR-04SM

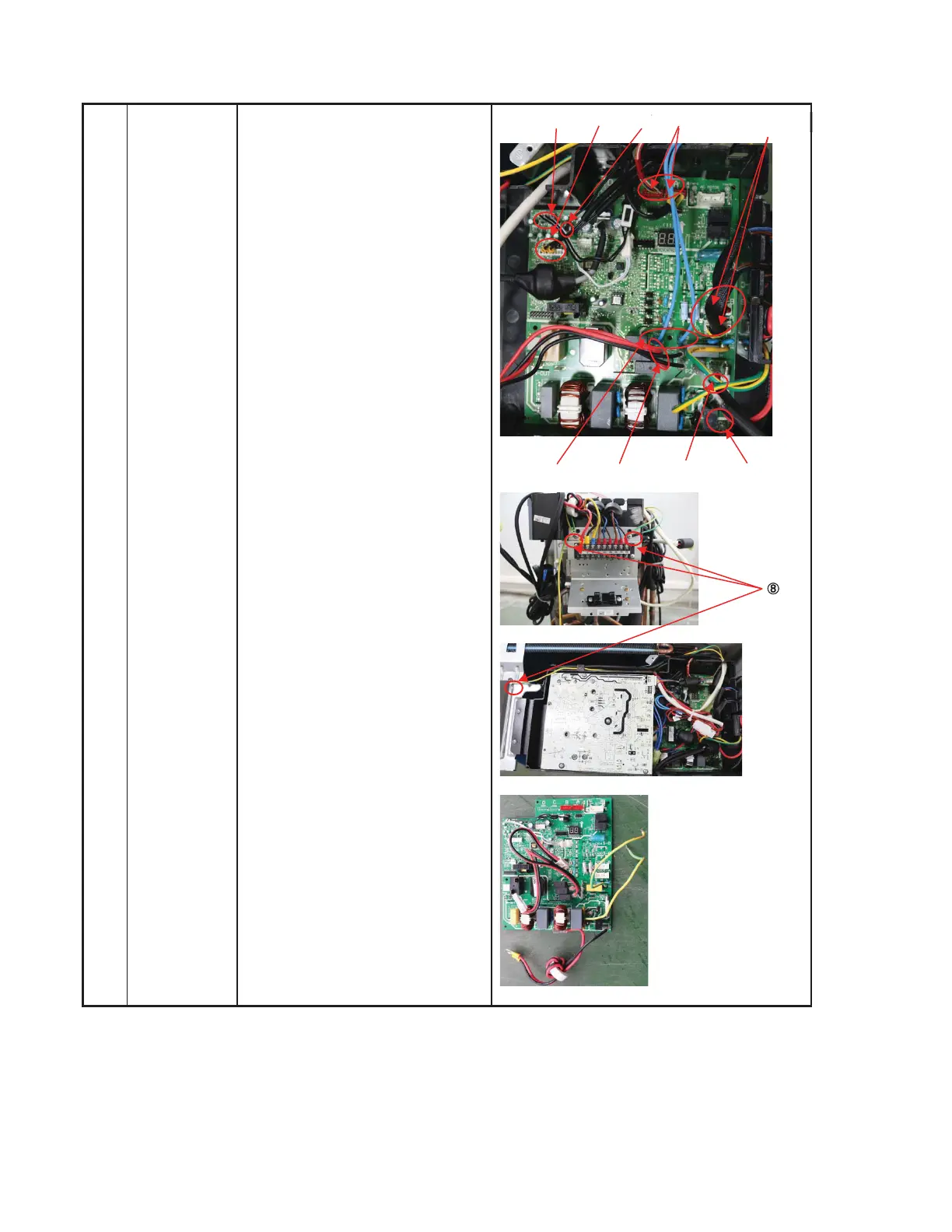

DISASSEMBLY INSTRUCTIONS SIZE 18 (CONT)

CN7: Discharge temperature

(2p,white)

CN15:T2B-A,B temperature sensor

(2p/2p,white)

CN18/CN19: Electronic expansion

valve A,B (6p/6p,red/red)

CN25/CN23: S-A,S-B

(3p/3p,white/white)

Wires:

CN1/CN2: 4-way valve (blue-blue)

CN5/CN6: Crankcase heating cable

(red-red)

CN3:L-IN (red)

CN4:N-IN (black)

8) Disconnect the grounding

wire (yellow-green) after

removing the big handle and

the right-rear panel.

9) Remove the PCB board.

CN17

CN7

CN15

CN1/CN2

CN5/CN6

CN3

CN4

CN18/CN19

CN25/CN23

Connectors:

CN17:T3/T4 temperature sensor

(2p/2p,white)
