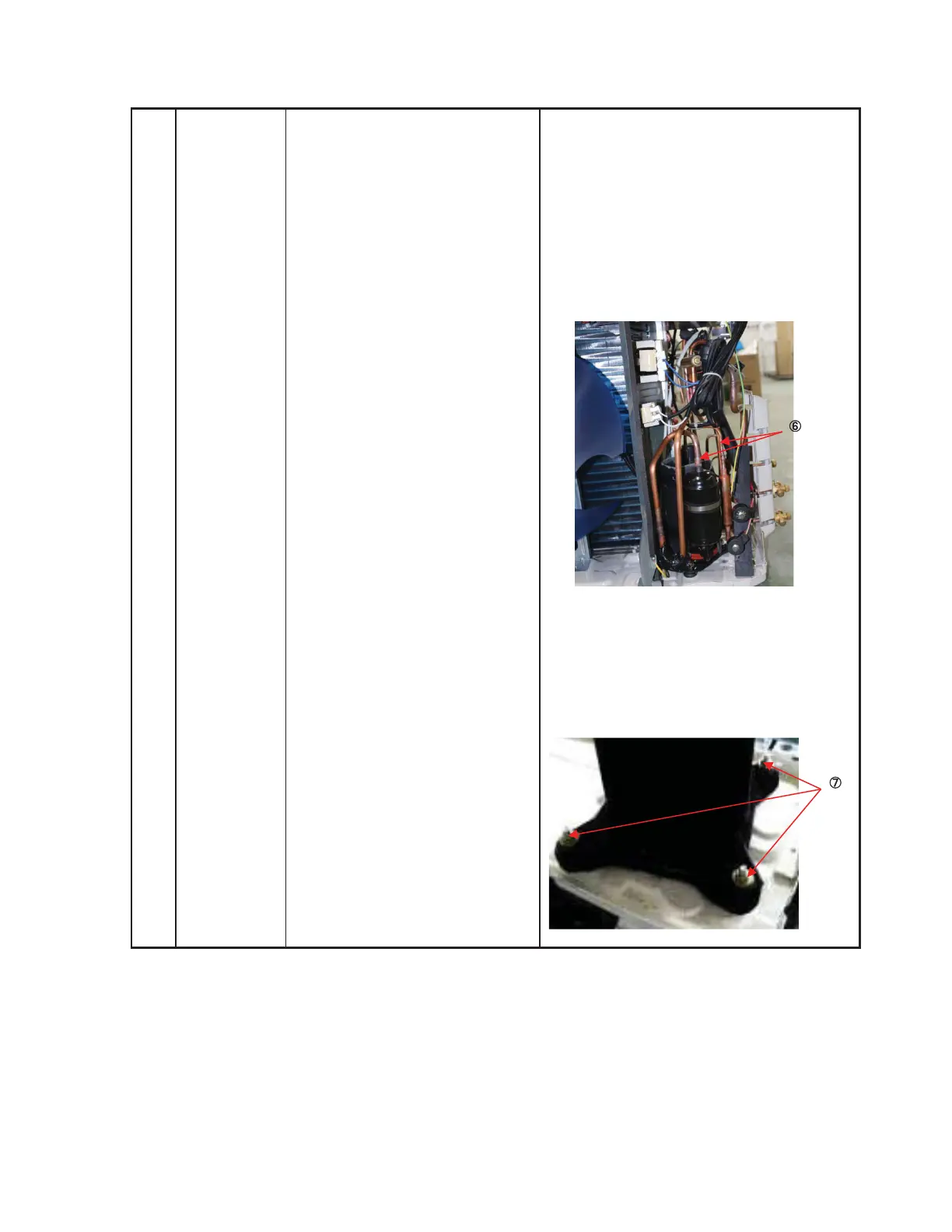

DISASSEMBLY INSTRUCTIONS SIZE 18 (CONT)
4 Compressor How to remove the compressor
1) Complete the steps in the
“Fan Assembly” and “Panel
Plate” sections for size 18.
2)
Remove the electrical
control box cover.
3) Extract the refrigerant gas.
4)
5)
6)
7)
8) Lift the compressor.
Remove the compressor
terminal cover and disconnect
the crankcase electric heater
and compressor from the
terminal.
Remove the sound insulation
material and crankcase
heating cable.
Remove the discharge pipe
and suction pipe with a
burner.
Remove the hex nuts and
washers securing the
compressor to the bottom
plate.
