38MGR-04SM Specifications subject to change without notice. 87

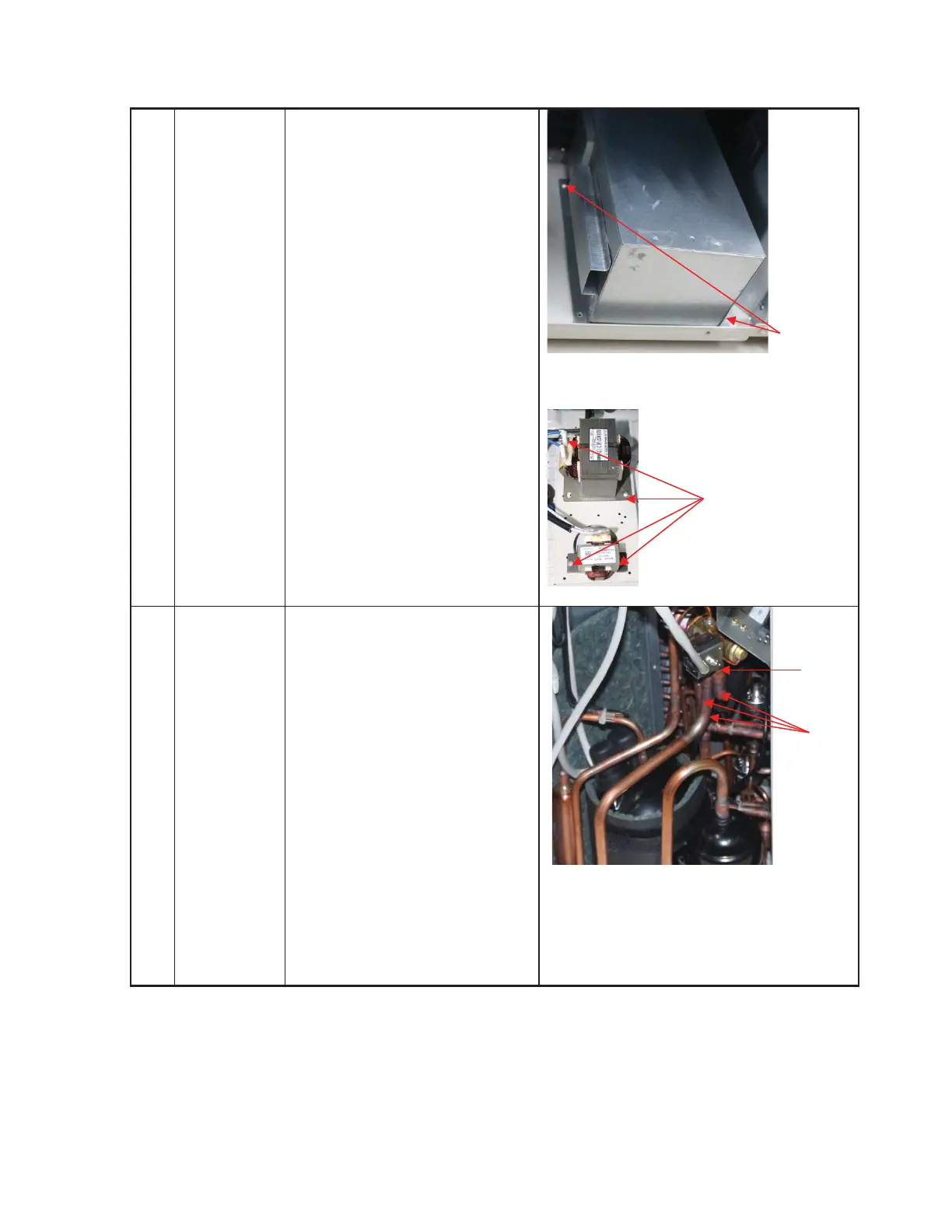

DISASSEMBLY INSTRUCTIONS SIZE 24 (CONT)
5 Reactor How to remove the reactor
1) Compete the steps in the
“Panel Plate and Fan
Assembly” sections.
2) Unfasten the connector
between the IPM and the
reactor.
3) Remove the inductance
cover screws (2) then
remove the inductance
cover.
4) Disconnect the two wires
connected to the inductance
cover.
5) Remove the reactor screws
(4), then remove the reactor.
6 The 4-way
valve
How to remove the 4-way valve
1) Compete the steps in the
“Panel Plate and Fan
Assembly” sections.
2) Extract the refrigerant gas.
3) Remove the electrical parts
See the Electrical Parts
section.
4) Remove the screw securing
the coil then remove the coil.
5) Detach the welded parts of
the 4-way valve and pipe.
Coil
Welded
Parts
Inductance
cover screws
Reactor screws
