38MGR-04SM Specifications subject to change without notice. 99

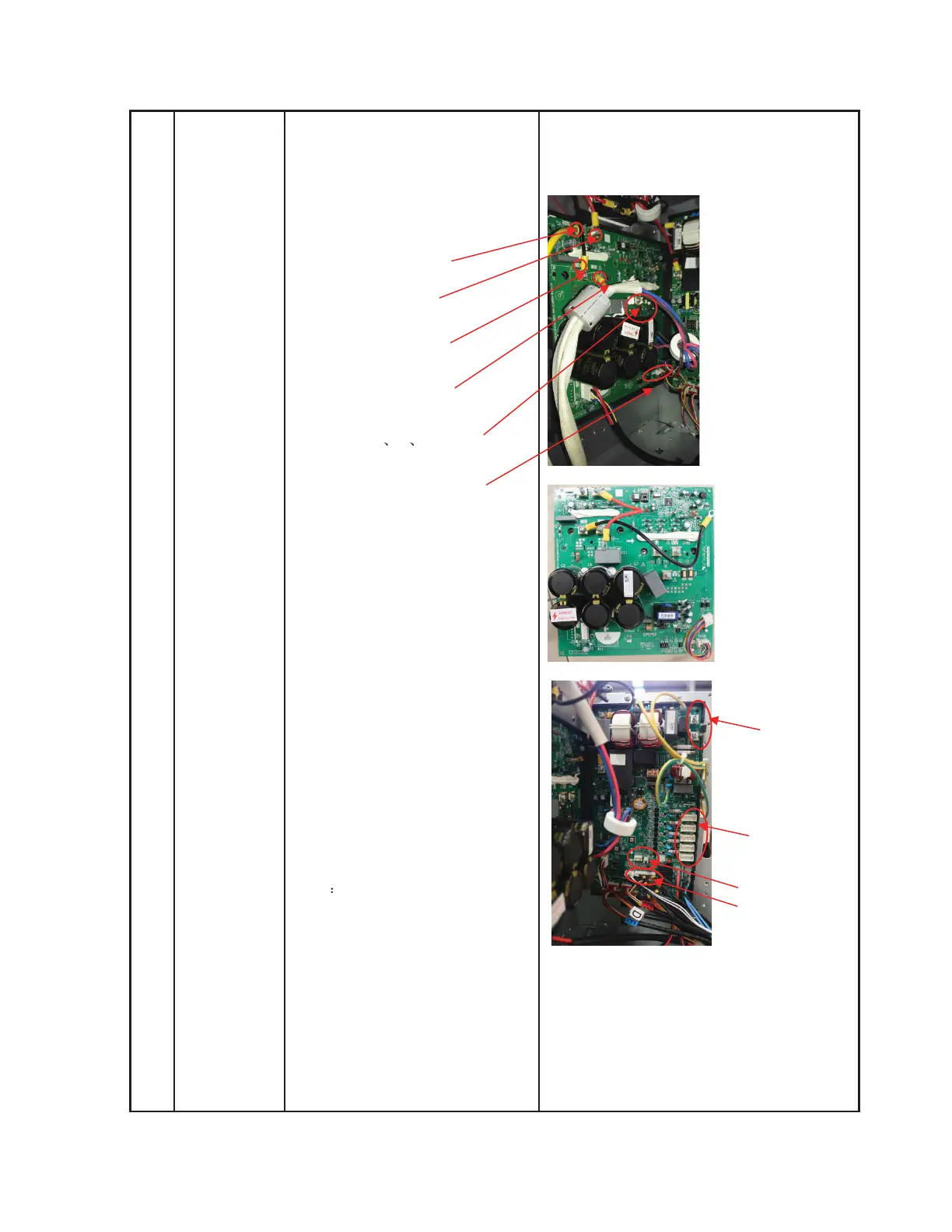

DISASSEMBLY INSTRUCTIONS SIZES 36 AND 48 (CONT)
3)
Disconnect the following
connection wires and
connectors between the IPM
and the other parts.
CN2(yellow)
CN1(red)
CN6(black)
CN3(yellow)
U
V W(black)
CN9 (10p,white)
4) Remove the screws and
then remove the IPM board.
5) Disconnect the connectors
and wires connected from
the PCB and the other parts.
Connectors:
CN8: Discharge temperature sensor
(2p,white)
CN12
Heatsink temperature
sensor (2p,red)
CN9:T3/T4 temperature sensor
(2p/2p,white)
CN11:T2B-A,B,C,D,E temperature
sensor (2p/2p/2p/2p/2p,white)
CN15/CN23/CN26/CN30/CN33:
Electronic expansion valve
(6p/6p/6p/6p/6p,red)
CN13
CN16
CN21
CN29
CN37
CN8 CN12
CN9 CN11
CN3
CN1
