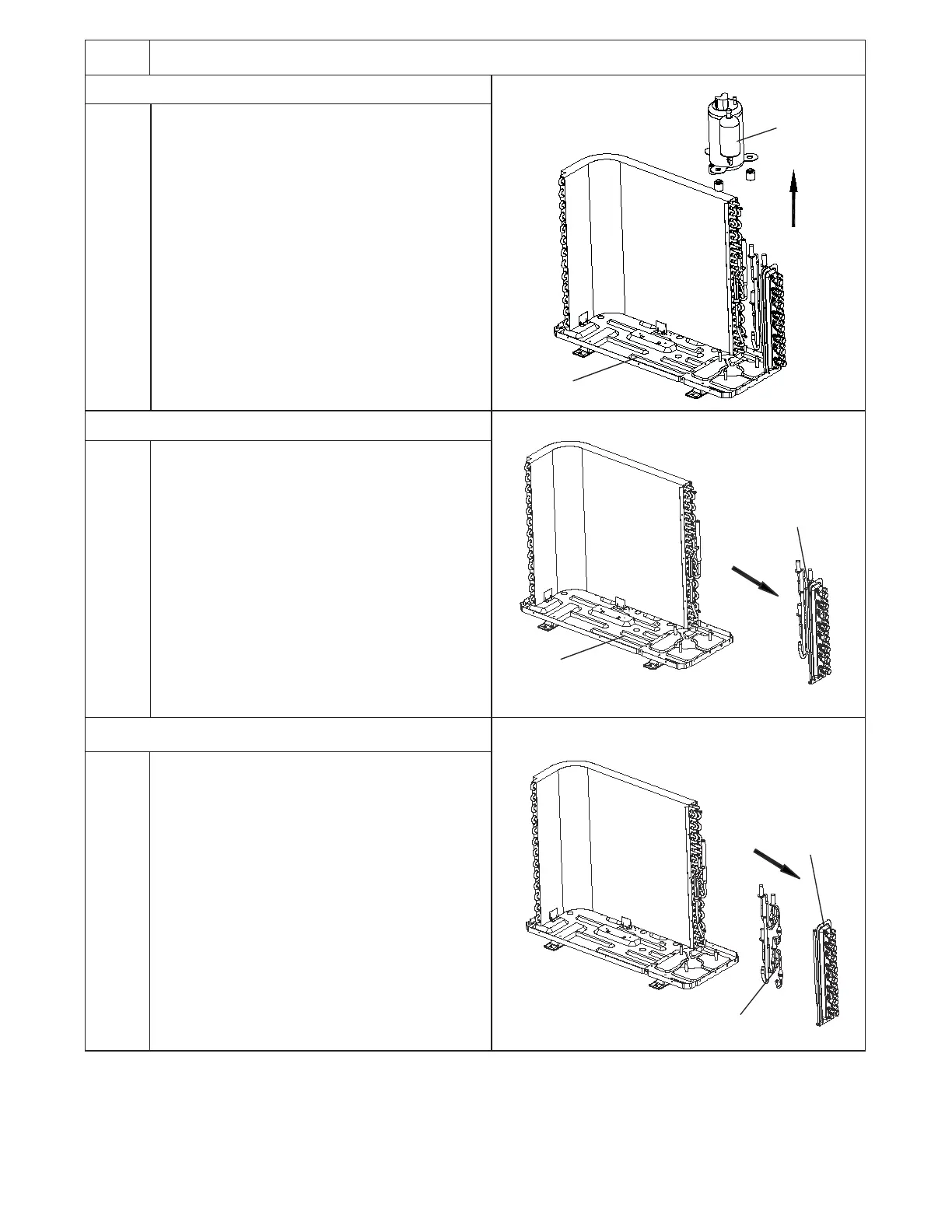

Steps Procedure

Remove nuts from compressor mounting bolts and

lift compressor from base pan.

Remove the screws retaining the service valve

support to the base pan and remove the support.

Cut all lines to the electronic expansion valves

and remove the valves from the service valve support.

18.Remove service valve support

19.Remove electronic expansion valves

17.Remove compressor

Compressor

Service Valve

Support

Electronic

Expansion Valves

Base Pan

Service Valve

Support
