58

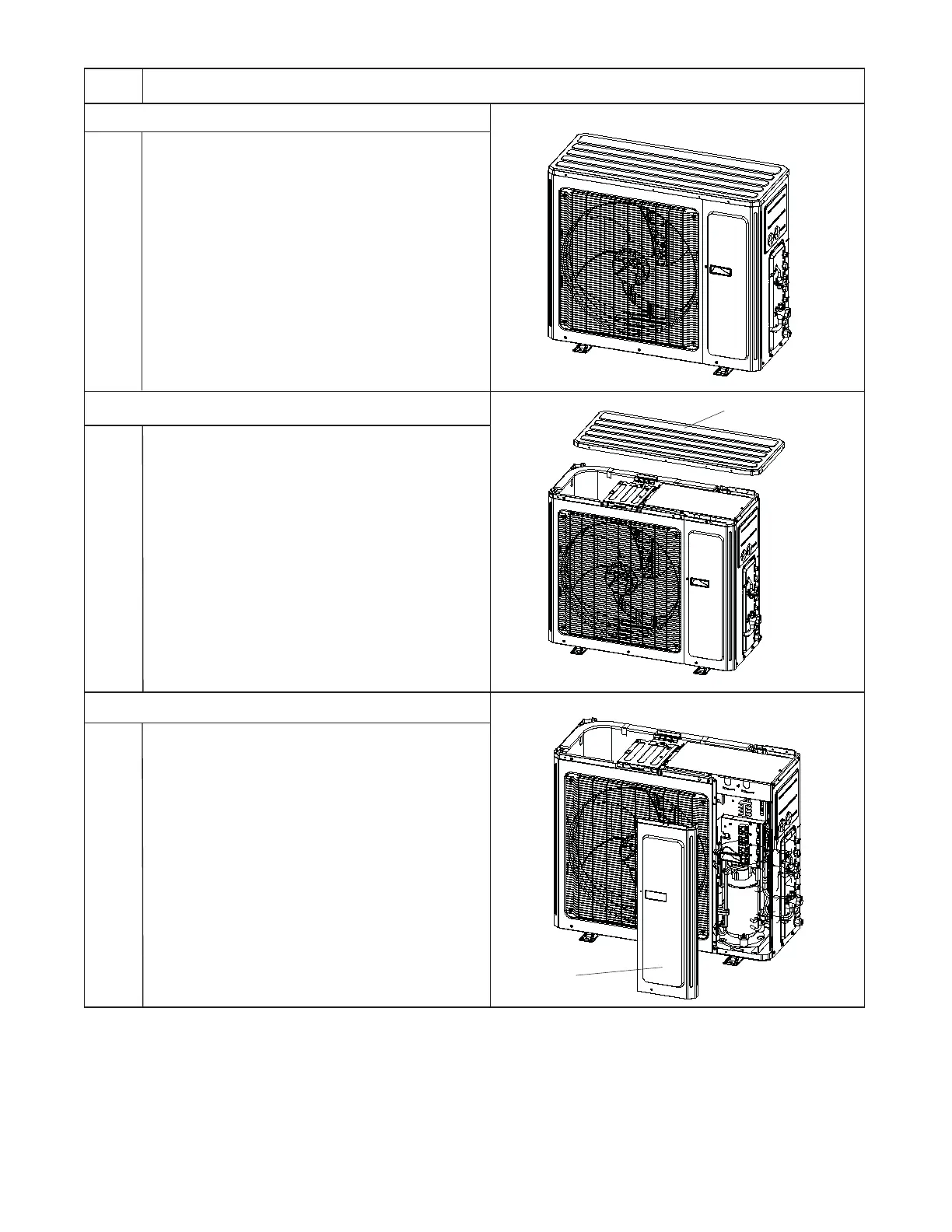

REMOVAL PROCEDURE OF OUTDOOR UNIT -- 36K

Steps Procedure

2.Remove top panel

Remove the 3 screws connecting the top panel with

the front panel and the right side plate, and then

remove the top panel.

Top panel

Remove the 1 screw connecting the front sideplate

and the panel,and then remove the front side plate.

3.Remove front side plate

Front side

plate

1. Before disassembly
