Steps Procedure
1. Disconnect the liquid separator and the connected pipeline
2. Remove the liquid separator
3. Fix the new liquid separator and connect it with the pipeline

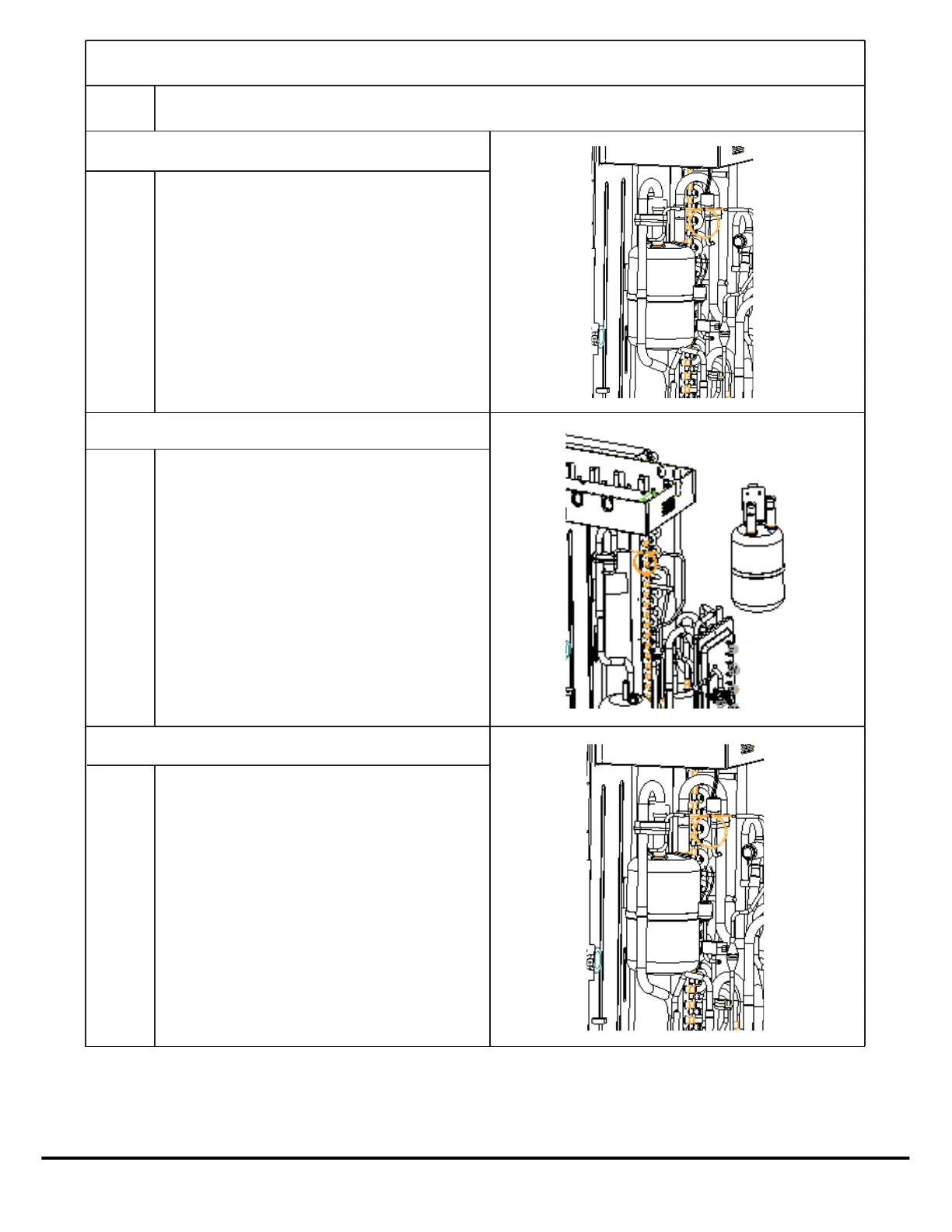

Disassembly and Assembly of Vapor Liquid Separator
Disconnect the liquid separator and the connected
pipeline.
① Remove the bolt retaining the liquid separator
② Remove the liquid separator from the middle baffle.
① Place the new liquid separator on the middle baffle
② Tighten the bolt and reconnect the new
liquid separator with the pipeline by welding.
