Carrier 42C Series Installation Instructions

5

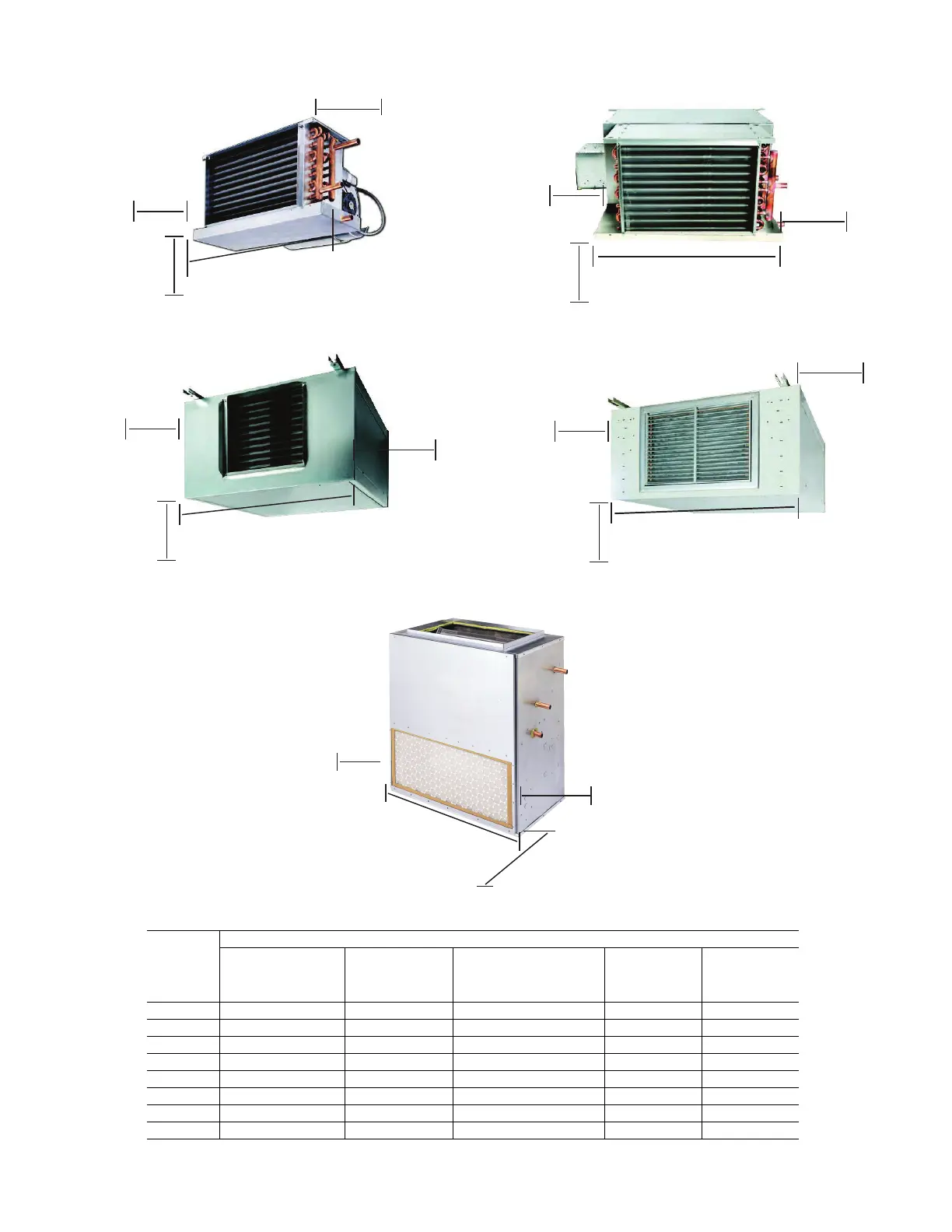

Fig. 3 — 42D Unit Clearance and Service Access
Hi-Performance Drain Pan or Coil Removal Minimum Service Clearance Width
UNIT
SIZE
42D
DIMENSIONS - in. (mm)
42DA/DC
Standard
Drain Pan
42DA/DC
Extended
Drain Pan
42DF
Same Side Piping and
Controls Extended
Drain Pan
42DE 42DD
06 23 [584] 32 [813] 31 [787] 31 [787] 21 [533]
08 28 [711] 37 [940] 36 [914] 36 [914] 26 [660]
10 32 [813] 42 [1067] 40 [1016] 40 [1016] 30 [762]
12 37 [940] 47 [1194] 45 [1143] 45 [1143] 35 [889]
14 42 [1067] 52 [1321] 50 [1270] 50 [1270] 40 [1016]
16 47 [1194] 56 [1422] 55 [1397] 55 [1397] 45 [1143]
18 52 [1321] 62 [1575] 60 [1524] 60 [1524] 50 [1270]
20 56 [1422] — 64 [1626] 64 [1626] 54 [1372]
28 in.
[711]
12-18 in.
[305-457]
28 in.
[711]
Piping
Side
Controls
Side
42DC Unit Clearance and Service Access
28 in.
[711]
12-18 in.
[305-457]
28 in.
[711]
Piping
Side
Controls
Side
42DE Unit Clearance and Service Access
28 in.
[711]
12-18 in.
[305-457]
28 in.
[711]
Controls
Side
Piping
Side
42DA Unit Clearance and Service Access
28 in.
[711]
12-18 in.
[305-457]
28 in.
[711]
Controls
Side
Piping
Side
42DF Unit Clearance
and Service Access
42DD Unit Clearance and Service Access
12-18 in.
[305-457]
28 in.
[711]
33 in.
[838]
