Carrier 42C Series Installation Instructions

6

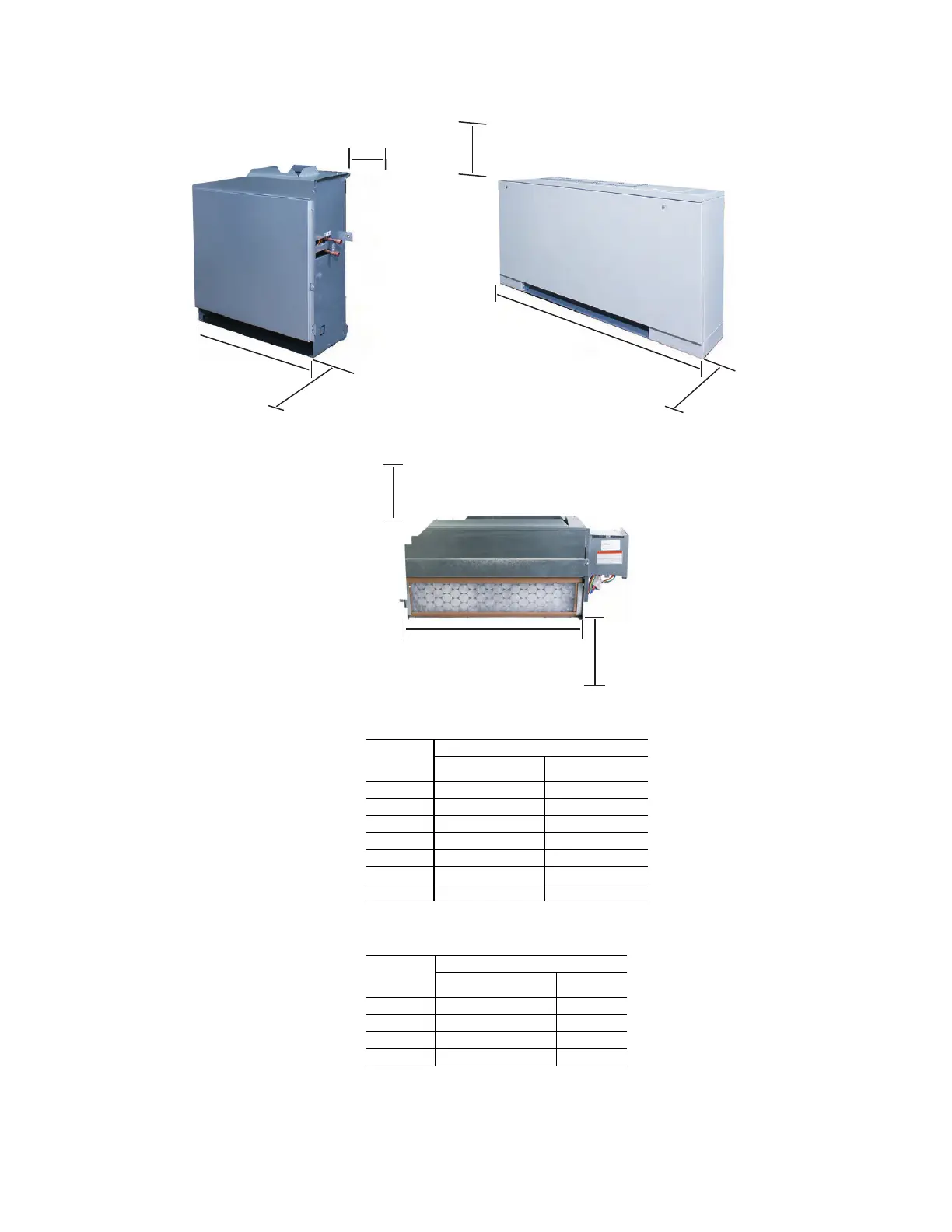

Fig. 4 — 42V Vertical Unit Clearance and Service Access
8 in. [203] from
flange both sides
36 in.
[914]
24 in.
[610]
36 in.
[914]
24 in.
[610]
36 in.
[914]
42VAD Units
42VBD/VFD Units
42VCA/VEA Units
Vertical Floor Dimensions
UNIT
SIZE
42V*D
DIMENSIONS - in. (mm)
42VAD 42VBD/VFD
02 23-1/2 [597] 41 [1041]
03 27-1/2 [699] 45 [1143]
04 33-1/2 [851] 51 [1295]
06 43-1/2 [1105] 61 [1549]
08 45-1/2 [115]) 63 [1600]
10 59-1/2 [1511] 77 [1956]
12 67-1/2 [1715] 85 [2159]
Vertical Lowboy Dimensions
UNIT
SIZE
42V*A
DIMENSIONS - in. (mm)
42VCA 42VEA
02 23 [584] 41 [1041]
03 28 [711] 46 [1168]
04 36 [914] 54 [1372]
06 50 [1270] 68 [1727]
