59SC2A

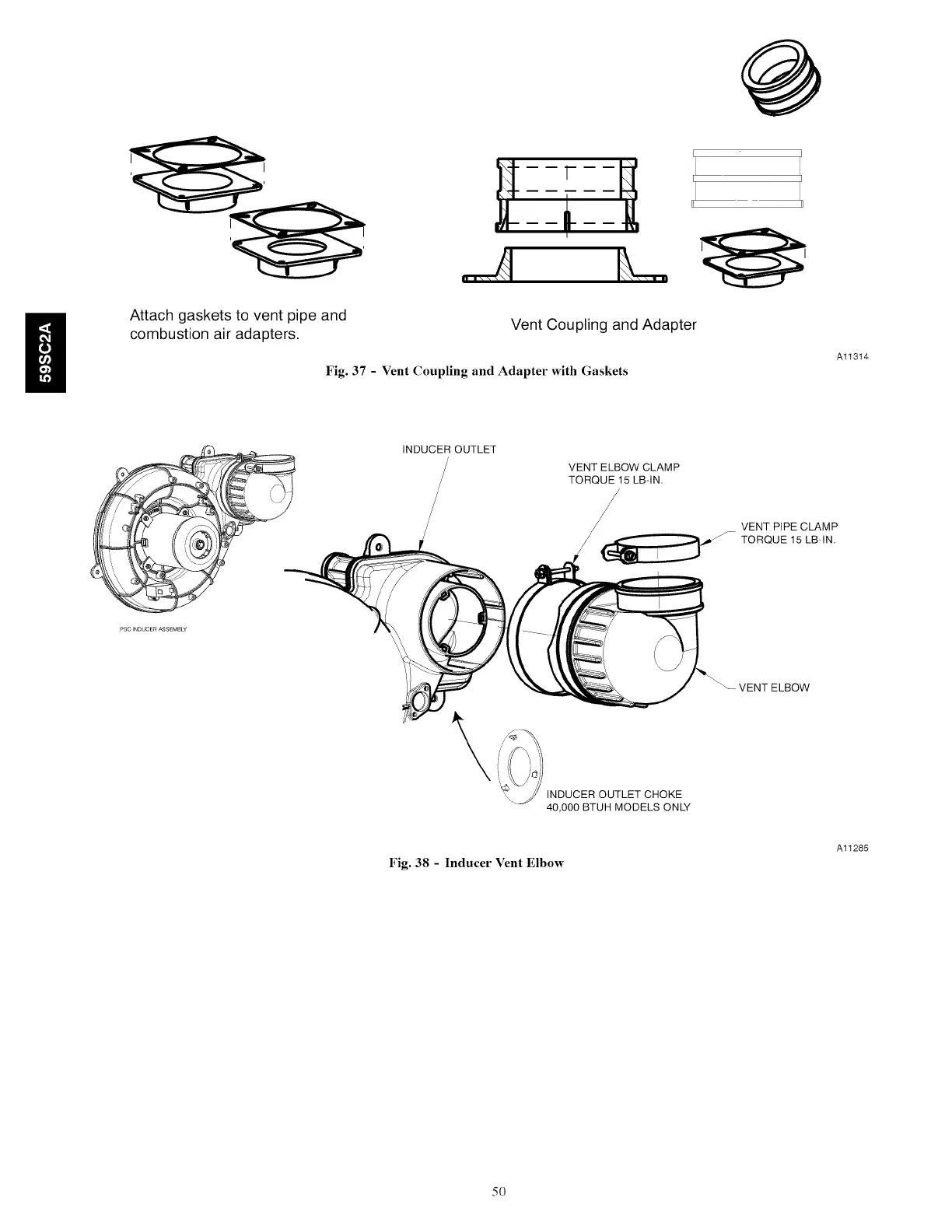

Attach gaskets to vent pipe and Vent Coupling and Adapter
combustion air adapters.
AI1314
Fig. 37 - Vent Coupling and Adapter with Gaskets
INDUCER OUTLET
VENT ELBOW CLAMP
TORQUE 15 LB-IN.
VENT PIPE CLAMP
TORQUE 15 LB-IN.
PSC INDUCER ASSEMBLY
INDUCER OUTLET CHOKE
40,000 BTUH MODELS ONLY
A11285
Fig. 38 - Inducer Vent Elbow
