; Any other unused
“> knockout may be used
for combustion air
connection. Any other unused /
knockout may be used
for combustion air
connection.
~, 73 ~~ Rotate vent elbow to
required position.
Cae
A11309
required
position.
A11308
UPFLOW LEFT CONFIGURATION UPFLOW RIGHT CONFIGURATION
Any other unused
knockout may be used <
for combustion air
connection.
A11310
UPFLOW VERTICAL VENT
@ Attach vent pipe adapter with gasket to furnace casing.
@ Align notches in rubber coupling over standoffs on adapter. Slide clamps over the coupling.
@ Slide vent pipe through adapter and coupling into vent elbow.
® Insert vent pipe into vent elbow.
© Torque all clamps 15 Ib.-in.
© Attach combustion air pipe adapter with gasket to furnace.
Attach combustion air pipe to adapter with silicone. Pilot drill a 1/8-in.
hole in adapter and secure with a #7 x 1/2-in sheet metal screw.
A11399

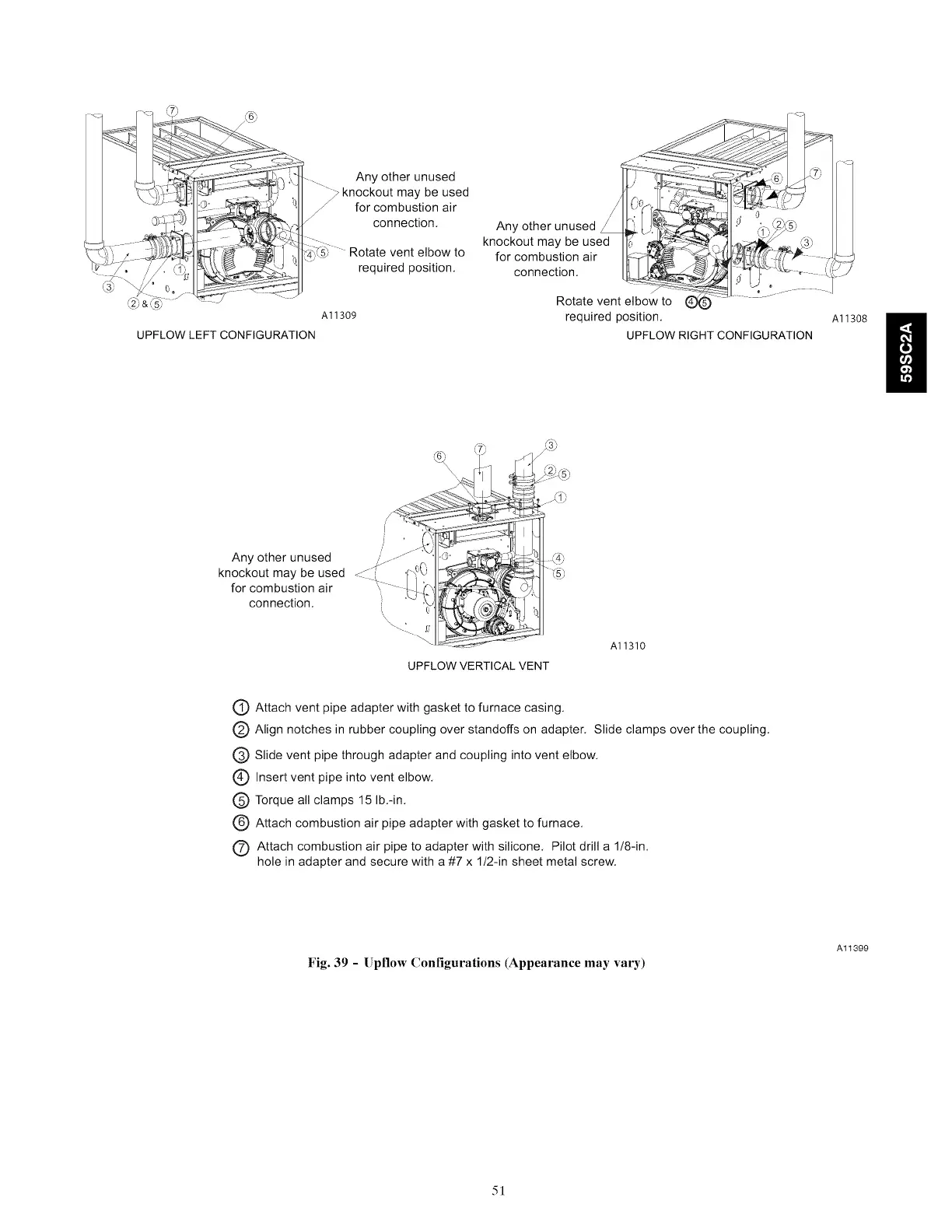

Fig. 39 - Upflow Configurations (Appearance may vary)
59SC2A
