59SC2A
Rotate vent elbow to
_ required position.
ve
A11311
DOWNFLOW LEFT CONFIGURATION
Rotate vent elbow to
required position.
knockout may be wc .
Any other unused
for combustion air
connection.
A11312
DOWNFLOW RIGHT CONFIGURATION
A11313
Downflow Vertical
Requires Accessory Internal Vent Kit.
See Product Data for current kit number.
@ Attach vent pipe adapter with gasket to furnace casing.
® Align notches in rubber coupling over standoffs on adapter. Slide clamps over the coupling.
@ Slide vent pipe through adapter and coupling into vent elbow.
@ Insert vent pipe into vent elbow.
® Torque all clamps 15 [b.-in.
© Attach combustion air pipe adapter with gasket to furnace.
Attach combustion air pipe to adapter with silicone. Pilot drill a 1/8-in.
hole in adapter and secure with a #7 x 1/2-in sheet metal screw.

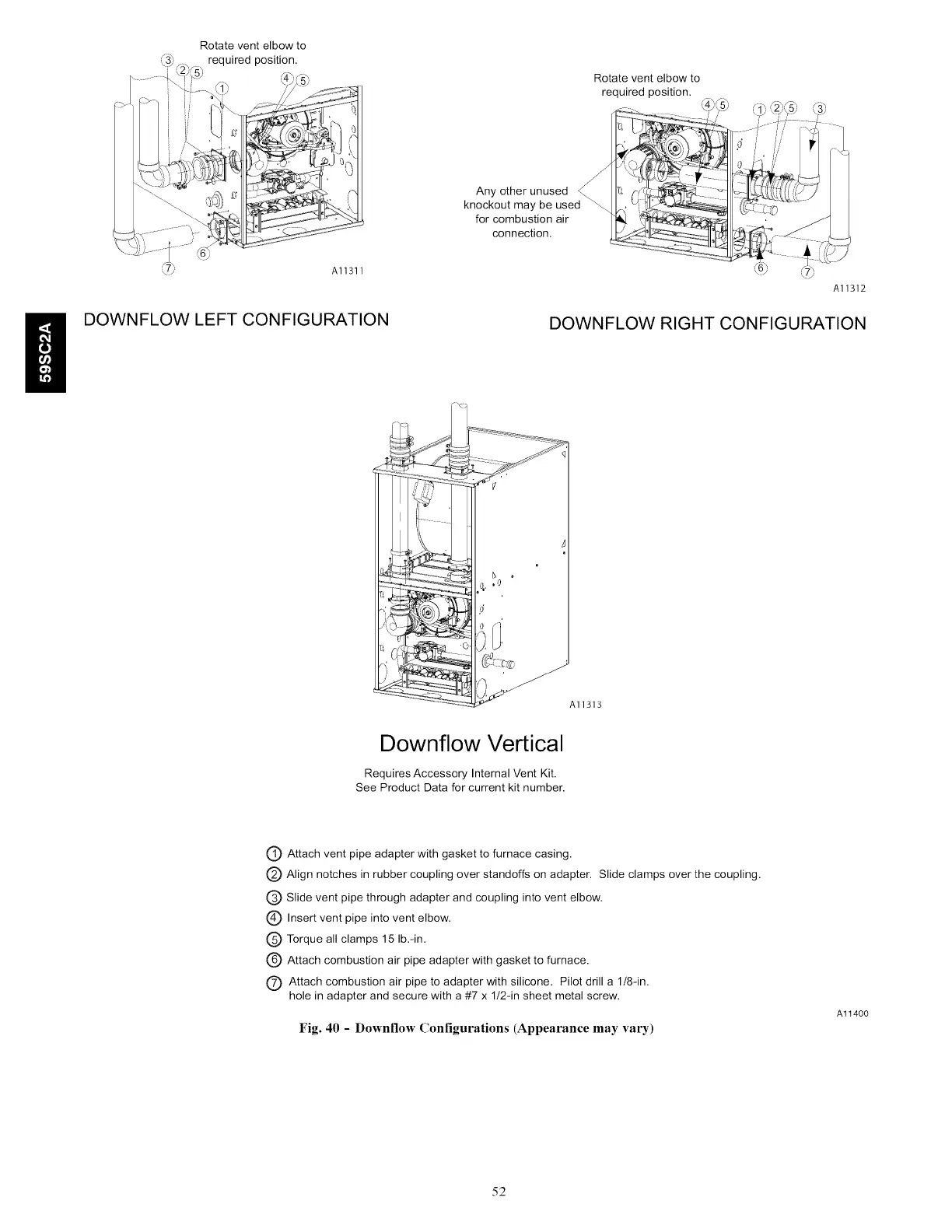

Fig. 40 - Downflow Configurations (Appearance may vary)
