ALTERNATE
COMBUSTION
HORIZONTAL
LEFT
-
HORIZONTAL
LEFT
-
VERTICAL
VENT
CONFIGURATION
LEFT
VENT
CONFIGURATION
A11328
59SC2A
| ees
age
HORIZONTAL LEFT - aise
RIGHT VENT CONFIGURATION*
*Requires Accessory Internal Vent Kit
See Product Data for Current Kit Number
@ Attach vent pipe adapter with gasket to furnace casing.
@® Align notches in rubber coupling over standoffs on adapter. Slide clamps over the coupling.
@ Slide vent pipe through adapter and coupling into vent elbow.
®™ Insert vent pipe into vent elbow.
©) Torque all clamps 15 lb.-in.
© Attach combustion air pipe adapter with gasket to furnace.
Attach combustion air pipe to adapter with silicone. Pilot drill a 1/8-in.
hole in adapter and secure with a #7 x 1/2-in sheet metal screw.
A11340

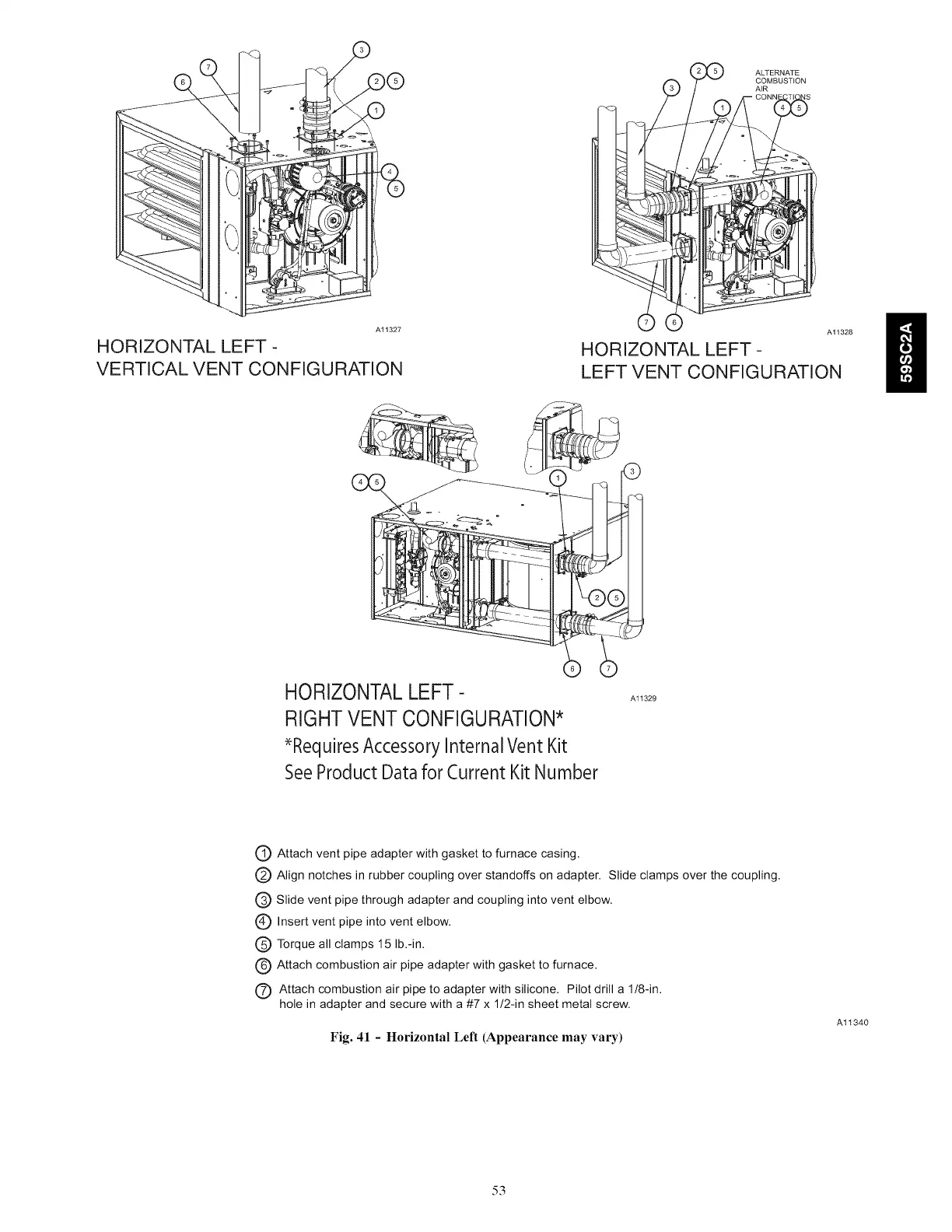

Fig. 41 - Horizontal Left (Appearance may vary)
