8-1062-11039

8.6.8 Servicing Glow Plugs

The total circuit amp draw for the glow plug circuit is

checked during a Pretrip cycle. When servicing, the

glow plug is to be fitted carefully into the cylinder head to

prevent damage to glow plug. Torque value for the glow

plug is 14 to 18 ft-lb (1.9 to 2.5 Mkg).

Checking for a Defective Glow Plug

a. The entire circuit may be tested using Component

Test Mode. (Refer to Section 5.2.2.)

b. To test individual glow plugs, disconnect all glow

plugs from each other, and place an ammeter (or clip-

on ammeter) in series with each glow plug and ener-

gize the plugs. See Table 2-5 for glow plugamperage.

8.6.9 Water Pump V--Belt

The water pump v-belt is driven by a sheave on the

engine crankshaft. Frayed, cracked or worn belts must

be replaced. This belt is a one time use only type and

require no tension adjustment.

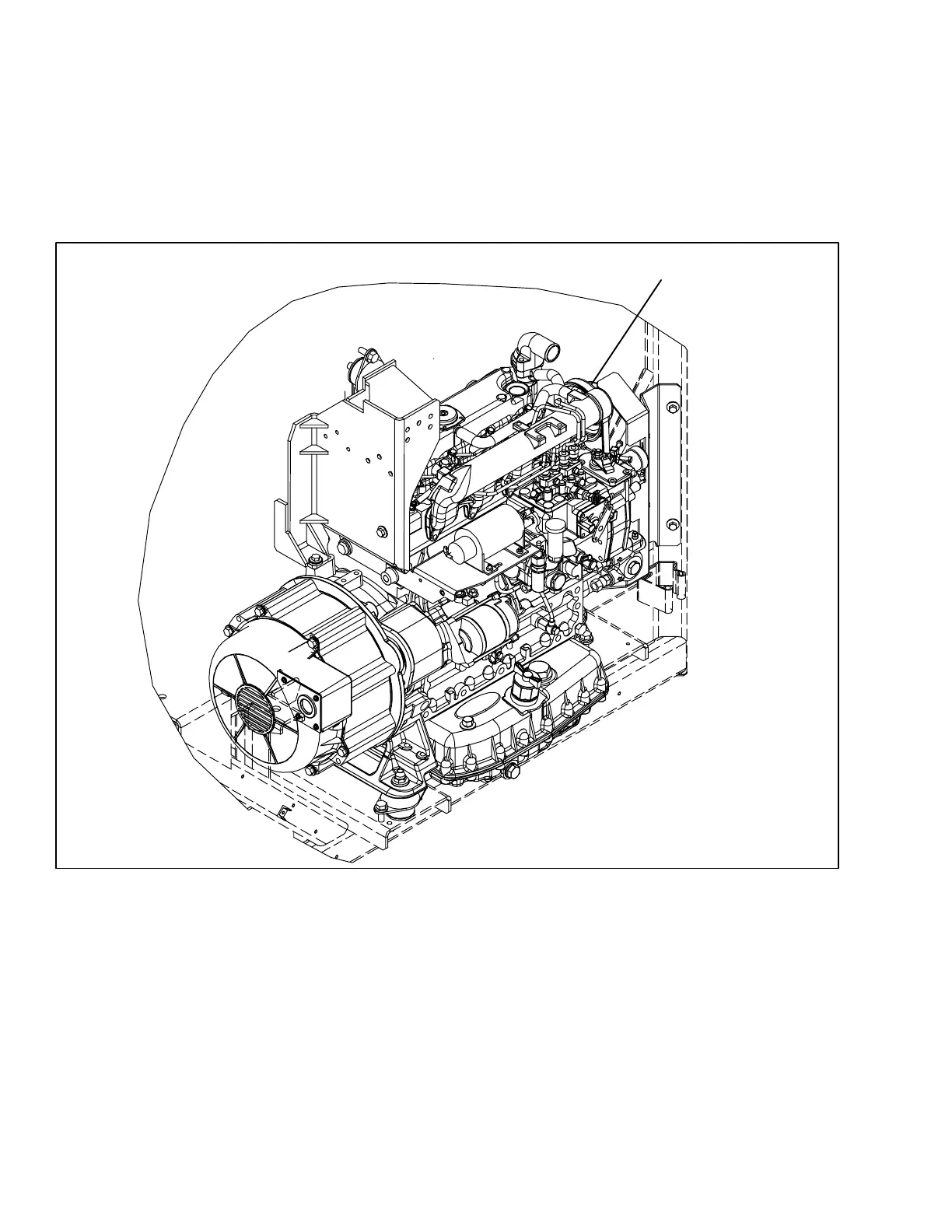

Water Pump Belt

Figure 8 --9. Water Pump V--Belt
