Carrier VECTOR 1800 MT - Figure 2-15. Refrigerant Circuit - All Compartments Heating

9
2-29
62-11039
CONDENSER
EVXV
RECEIVER
RELIEF VALVE
FILTER
DRIER
HEAT EXCHANGER
LIQUID LINE
SUBCOOLER
MANUAL
SHUT--OFF
VALVE
CDP
COMPRESSOR
CSMV
EXTERNAL
EQUALIZER
TXV
EXTERNAL
EQUALIZER
TXV
LSV3
LSV2
SUCTION
SERVICE
VALVE
DISCHARGE
SERVICE
VALVE
CDT
HP1
CSD
EVOP
EVOT
TXV
BULB
TXV
BULB
HOST EVAPORATOR
REMOTE
EVAPORATOR
REMOTE
EVAPORATOR
CST

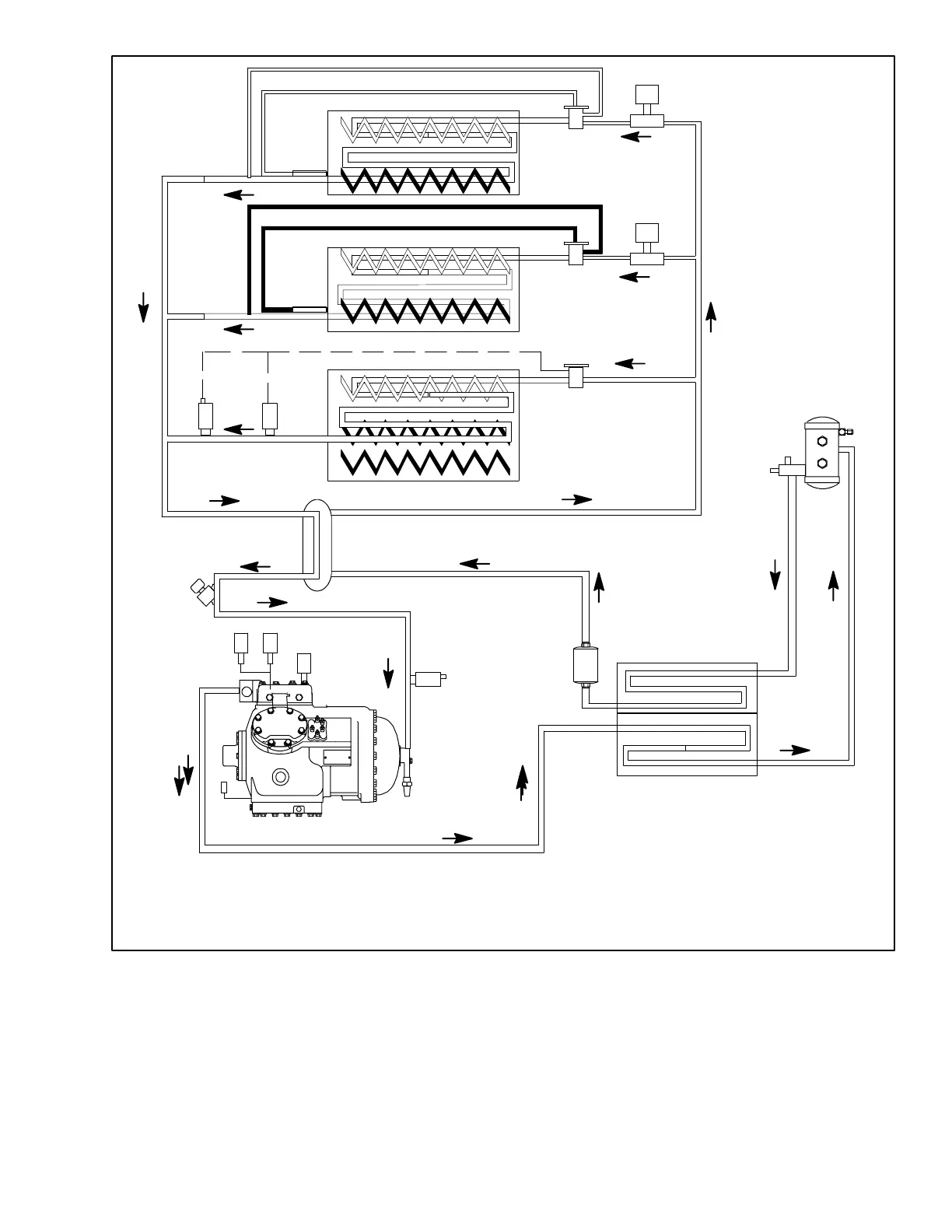

Figure 2-15. Refrigerant Circuit -- All Compartments Heating
