Warning: The outputs of the Switch 4/15P. are controlled when activating the setup and when changing switching modes. To be on the safe side, consumers should be disconnected from the 4

outputs before activating the setup.

SETUP – SWITCHING MODE SELECTION

To change the switching mode, proceed as follows:

1. Unplug the Switch 4/15P. servo cable from the receiver.

2. Switch on the transmitter and supply power to the receiver.

3. Plug the servo cable of the Switch 4/15P. into a receiver slot. Within the next 5 seconds, the encoder on the transmitter must be moved quickly 3 times to full deflection in range A (i.e. „top“ or „left“) and 3

times in range D (i.e. „bottom“ or „right“). This will start setup and all 4 LEDs on the Switch 4/15P. will flash quickly for 4 seconds.

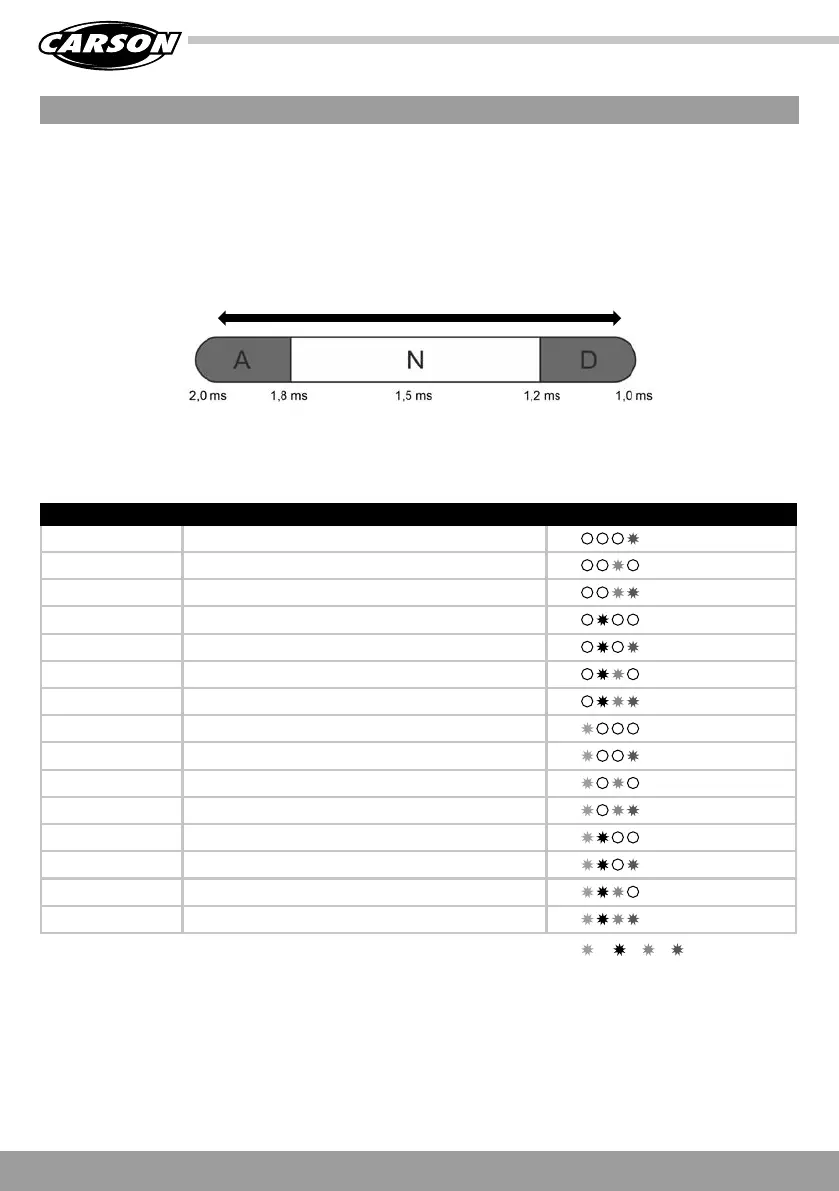

4. Once the 4 seconds have elapsed, the number of the set mode flashes via the 4 LEDs on the Switch 4/15P. (see table below).

5. The number of the desired mode can now be set using the encoder on the transmitter. The mode increases or decreases by 1 each time you briefly tap the encoder in ranges A or D. The flashing of the LEDs

always changes according to the set number.

If the encoder on the transmitter is not operated for 30 seconds or the Switch 4/15P. is disconnected from the power supply, the last selected setting is saved and the RC-SM-2 then works in the set mode.
