27 // GB
Depending on the level of the light switch, the outputs are controlled as follows:
Depending on the level of the light switch, the outputs are controlled as follows:
One output is always activated per stage, while all other outputs are off.
If the light switch is at level 4 and it is increased by another level, the level jumps back to 0. If the level of the light switch is at 0 and is reduced by another level, the level jumps back to 4. As such, the
light switch operates “in a circle”.
The intermediate ranges B and C are not evaluated in this mode.
If the level is increased, 1 additional output is always switched on.
If the light switch is at level 4 and it is increased by another level, the light switch remains at level 4. If the level of the light switch is at 0 and is reduced by another level, the light switch remains at
level 0.
The intermediate ranges B and C are not evaluated in this mode.
Brief in range A: Level of the light switch + 1
Brief in range D: Level of the light switch - 1
Brief in range A: Level of the light switch + 1
Brief in range D: Level of the light switch - 1
In this mode, the Switch 4/15P. works like a step switch with 5 levels (level 0 - level 4).
In range A, the status of the light switch is increased by one level. In range D, the status of the light switch is reduced by one level.
In this mode, the Switch 4/15P. works like a light switch with 5 levels (level 0 - level 4).
In range A, the status of the light switch is increased by one level. In range D, the status of the light switch is reduced by one level.

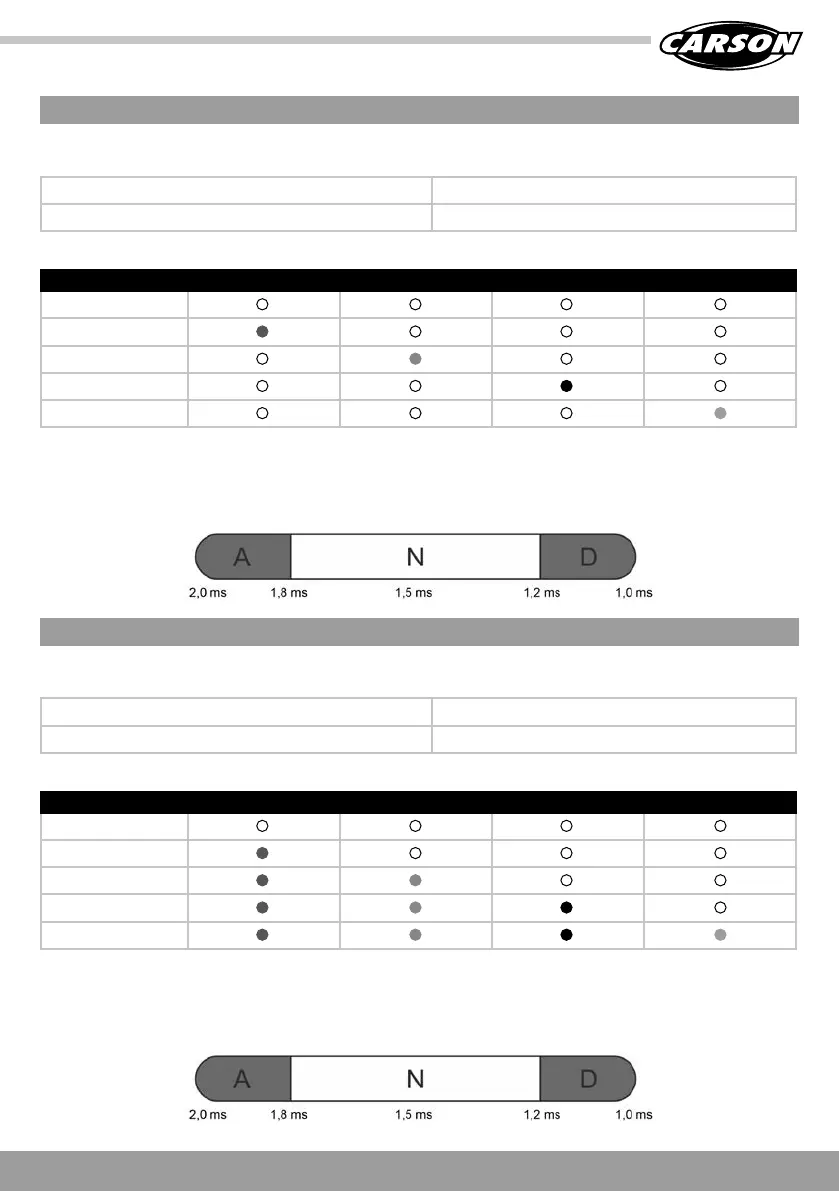

MODE 8: 4-WAY LIGHT SWITCH INDIVIDUAL (STEP SWITCH)
MODE 9: 4-WAY LIGHT SWITCH COMBINED
LEVEL OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
0
1
2
3
4
STUFE AUSGANG 1 AUSGANG 2 AUSGANG 3 AUSGANG 4
0
1
2
3
4
Level +
Level +
Level -
Level -
