5 - OPERATING INSTRUCTIONS
89
Disabled Machine
In the event that the engine stops running and
cannot be restarted, the Combine park brake will
lock the wheels. To free the wheels so that the
Combine can be towed, do the following:
1. Turn the key switch to the ON position.
2. Make sure Park Brake is in the OFF Position.

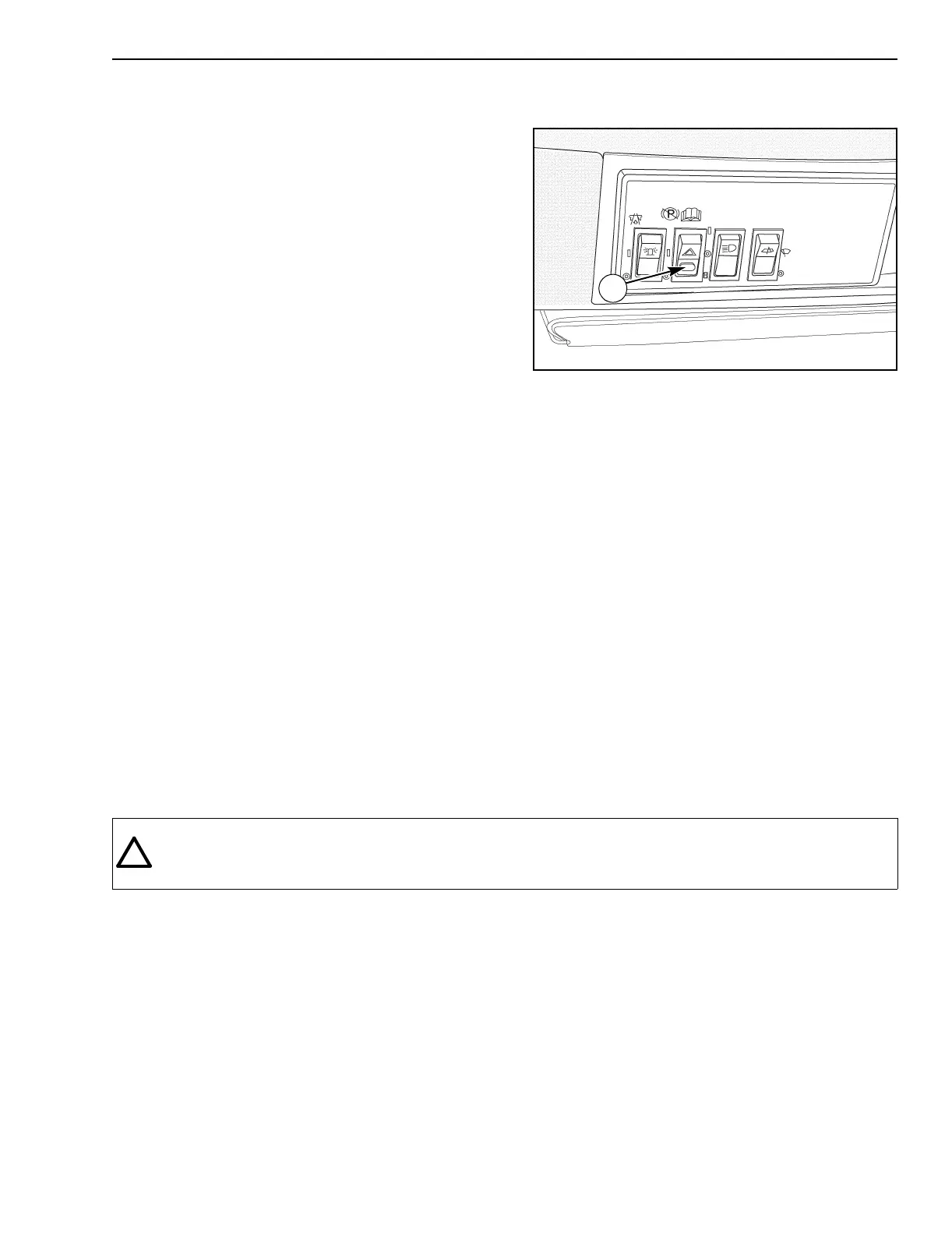

3. Press the Hazard/Park Brake Disable Switch to
the hazard Position.n Lift detent lock latch (1)
and press top part of switch to the Park Brake
DISABLE Position.
4. Vigorously pump the Left service brake pedal
through its full stroke until the Park Bake Light
goes out
(It is suggested that you stand over the brake pedal
when doing this procedure), while actuating the
pedal approximately 12 to 15 times.
NOTE: If the Combine is to be towed for a period of
time exceeding 30 minutes, the drive shaft couplings
should be removed. Combine will have NO Brake
Function with coupling removed.
IMPORTANT: The Hazard/Park Brake Disable
Switch MUST be in the Park Brake Disable
Position while Combine is being towed.
Disengaging the switch will reengage the Park Brake
and stop the machine.
NOTE: After towing is completed, move the Hazard/
Park Brake Disable Switch to the OFF position.
RD05D120
2
WARNING: If machine is on a slope and the above procedure is performed, the machine will roll. Perform
the above procedure only when machine is on a flat surface or completely restrained by blocking the wheels.
