5 - OPERATING INSTRUCTIONS
91
RD00H0041

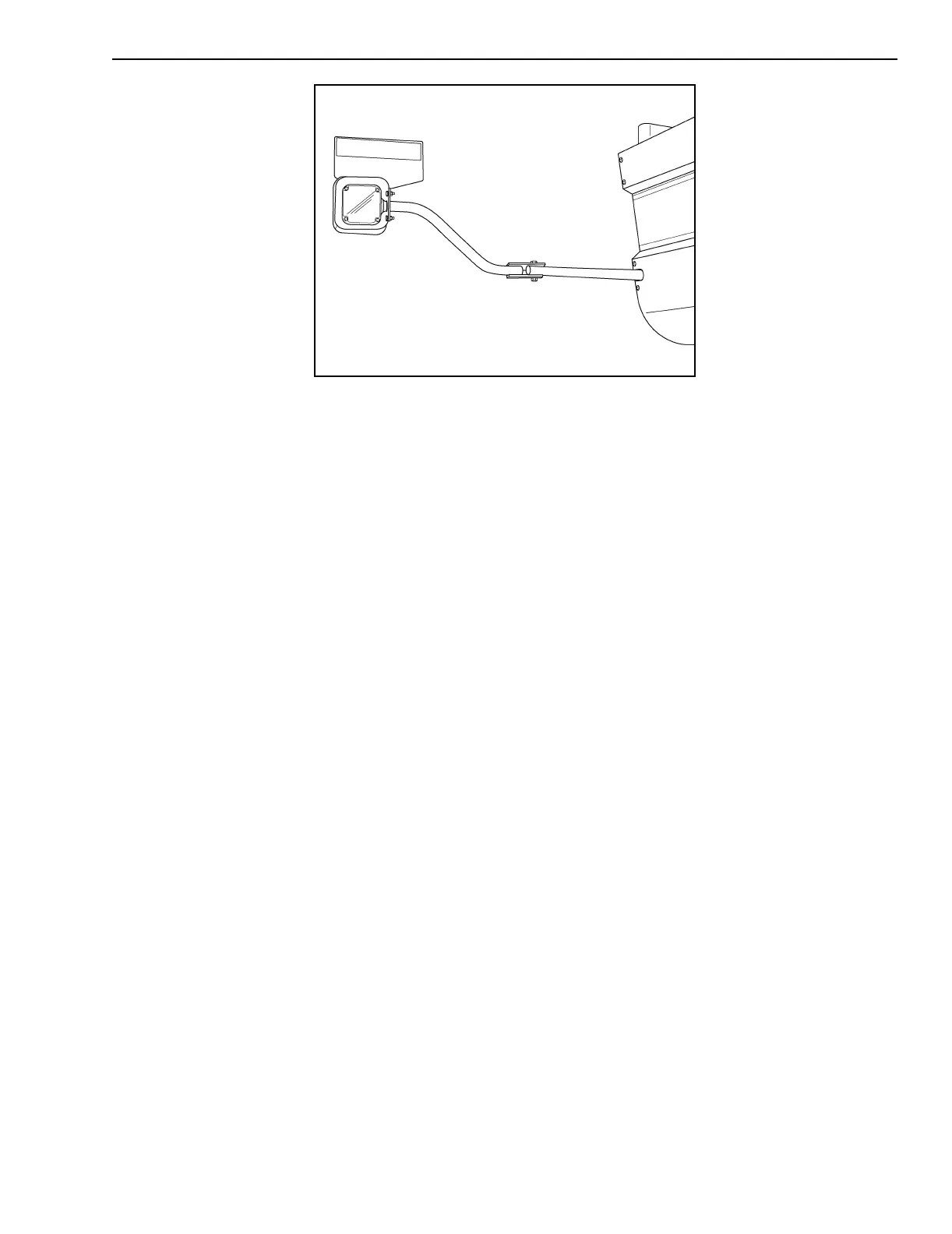

For dual drive wheel configurations extremity warning
lamp assemblies must be in the outer position (inner
edge of warning lamp assembly tube flush with inner
edge of mounting bracket tube). Warning lamps must
be positioned within 406 mm (16 inches) of outer
edge of both sides of Combine when the header is
removed.
For flotation tires (76 x 50.00-32) drive wheel
configuration, extremity warning lamp assemblies
must be shifted an additional 127 mm (5 inches)
outward per side (end of warning lamp assembly
tube recessed 127 mm (5 inches) from end of
mounting bracket tube). Warning lamps must be
positioned within 406 mm (16 inches of outer edge of
both sides of Combine.
