SECTION 2 - CONTROLS, INSTRUMENTS AND OPERATION
2ï89

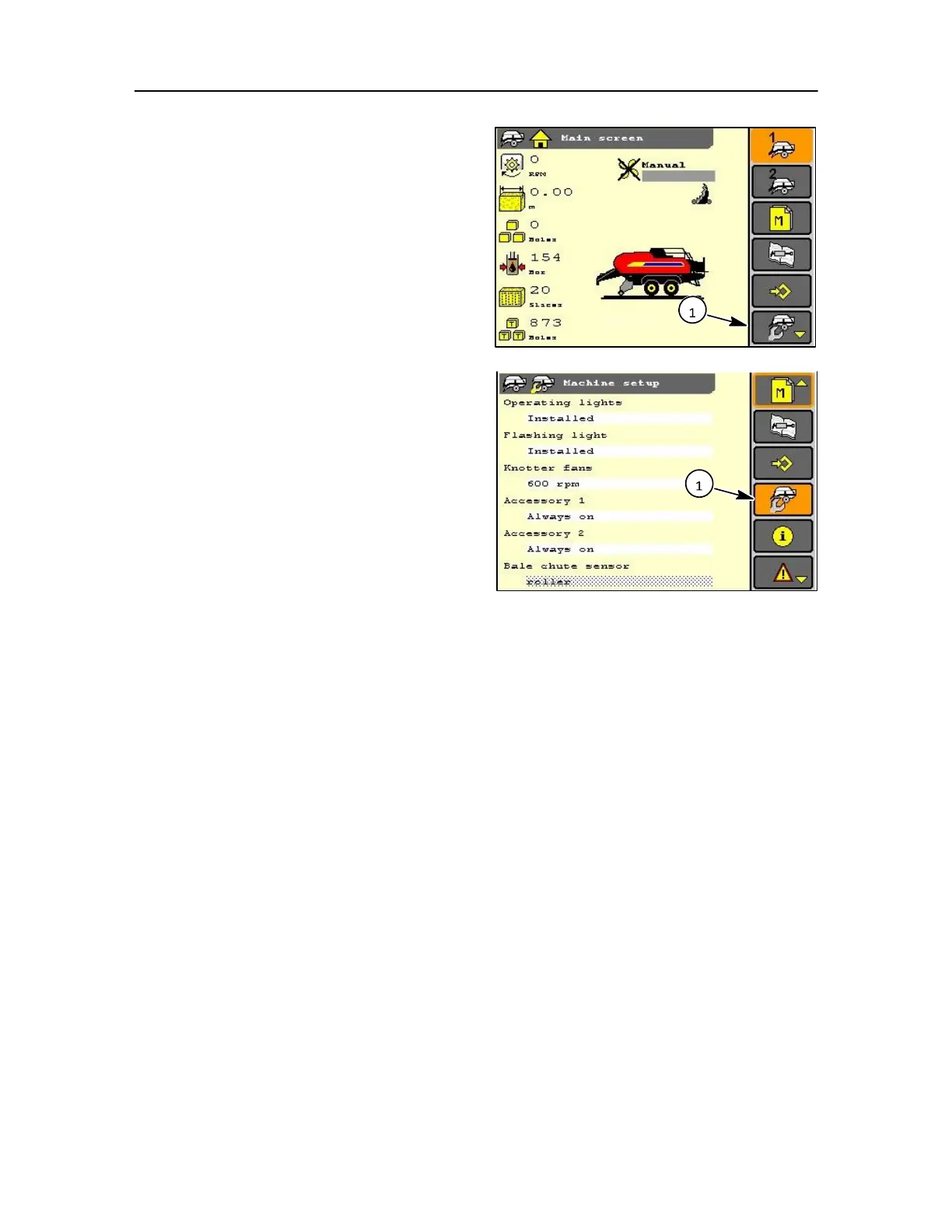

MACHINE SETTINGS
The baler can be set up to suit the operator's
requirements and settings. These settings which are
displayed in the main screen require to be input
through this screen.
User configurable items
The machines setting screen is primarily designed for
the user to set-up standard options, and for the
Dealer to set-up the configurable options fitted to the
baler
Operating lights:
Installed, not installed Flashing revolving beacon:
Not installed, Always on, switch with worklights
Knotter fans:
Off, Always on, < 600 rpm, > 600 rpm
Accessory I: 195
Off, Always on, < 600 rpm, > 600 rpm plus feeding or
grease pump Accessory II:
Off, Always on, < 600 rpm, > 600 rpm plus feeding or
switch with lights
NOTE: Selecting this item will supply power to accessory 2
output as soon as the PTO shaft exceeds > 600 rpm and
stuffer strokes are detected.
IMPORTANT: A fuse of 7.5 A protects the power output to
Accessory 2. Do not install any equipment which requires
more than 7.5 A.
Dealer installed items only:
Grease pump Installed, not installed
Pick-up stop Installed, not installed Moisture
(not sensor) Installed, not installed
Accumulator Installed, not installed
Bale length system (not electric bale length)
1 sensor, 2 sensor Not installed
Bale chute plate/roller
Bale weight system Installed, not installed
