SECTION 2 ‐ CONTROLS, INSTRUMENTS AND OPERATION

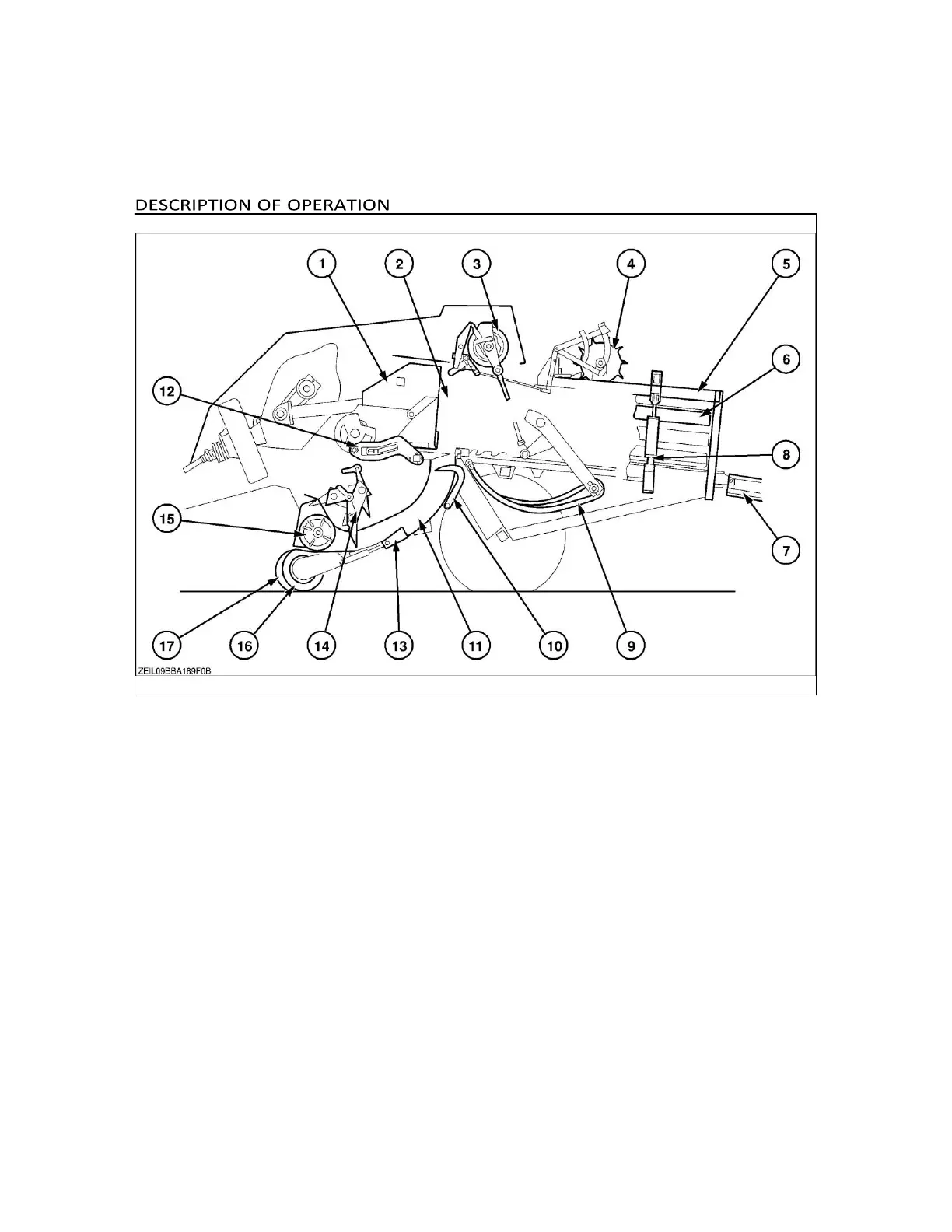

1. Plunger
2. Bale chamber
3. Knotters
4. Bale length metering wheel
5. Bale chamber top door
6. Bale chamber side doors
7. Bale chute
8. Density cylinders
9. Needles
10. Crop holding fingers
11. Pre-compression chamber 1
12. Stuffer fork
13. Pre‐ compression sensing mechanism
14. Packer (or Rotor)
15. Pick‐ up centering augers
16. Pick‐ up
17. Baffle plate
