15
AC adapter terminal
Touch screen
Perform operations and input
data by tapping and writing
directly on the screen.
Stylus
• Menu
(Launcher)
• Contacts
• Calendar
Speaker
Power button
Turns power on
and off.
Action control
See “About the
[Action] Control”
on the next page.
Record button
(Program button)
Voice memo recording is
activated as long as you
hold down this button.
Infrared port
Cursor button
Moves the cursor around
the screen.
Program buttons
Press to launch the
assigned program.
The programs
shown here are the
initial default
settings.
Microphone
Stereo headphone jack
For connection of a
commercially available
earphone/headphones
(ø3.5mm).
Charge indicator (Amber/Green)
Lights amber when the battery pack is
charging and turns green when full
charge is achieved.
Operations

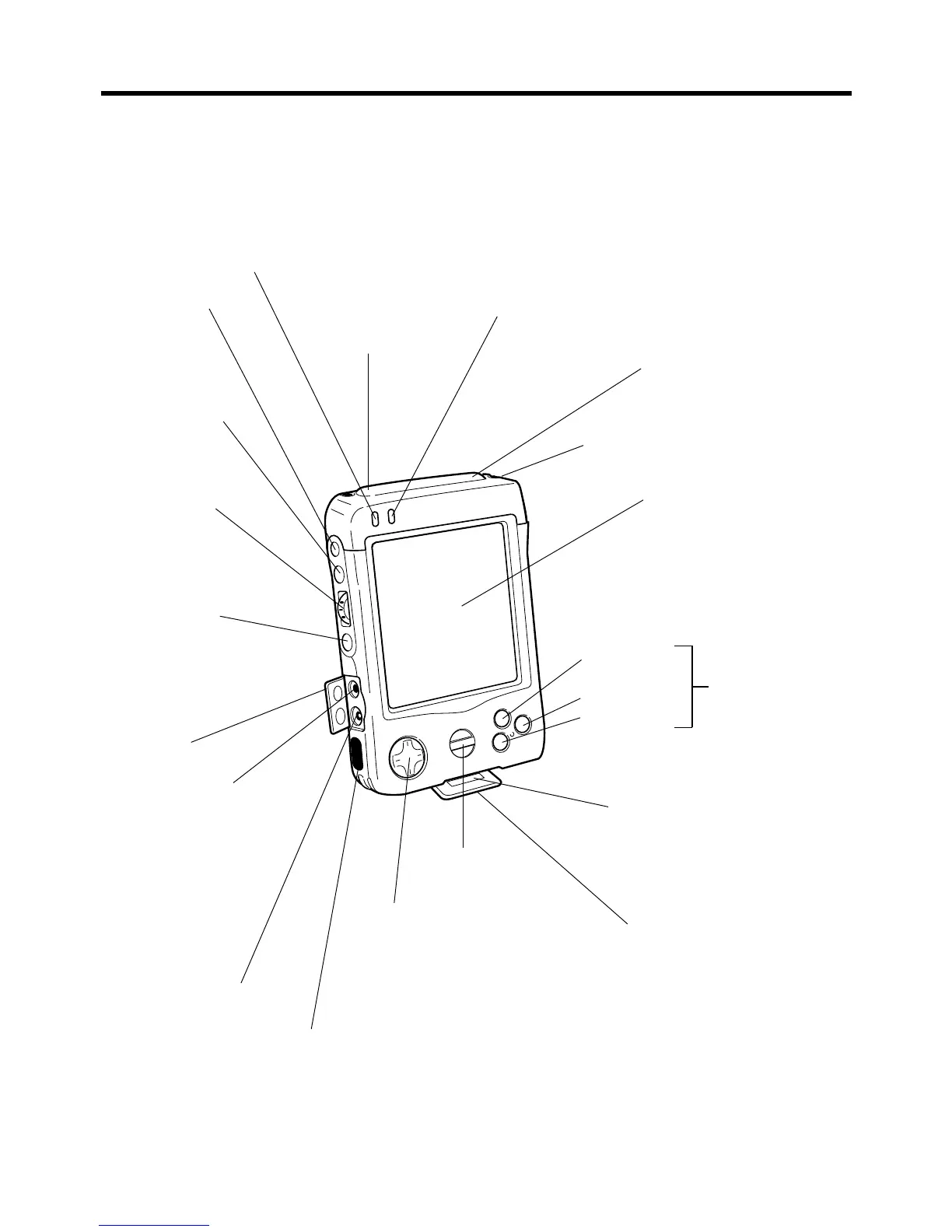

General Guide
Serial connector
For connection of the CASSIOPEIA
USB cable, or the RS-232C serial
cable.
Serial connector cover
Jack cover
Start button
(Program button)
Press to display
the Start menu.
Indicator lamp (Red)
Alerts you to alarms and
warning.
Card slot cover
To Next Page
