Casio EXILIM EX-H20G

10
The numbers in parentheses indicate the pages where each item is explained.
. Camera

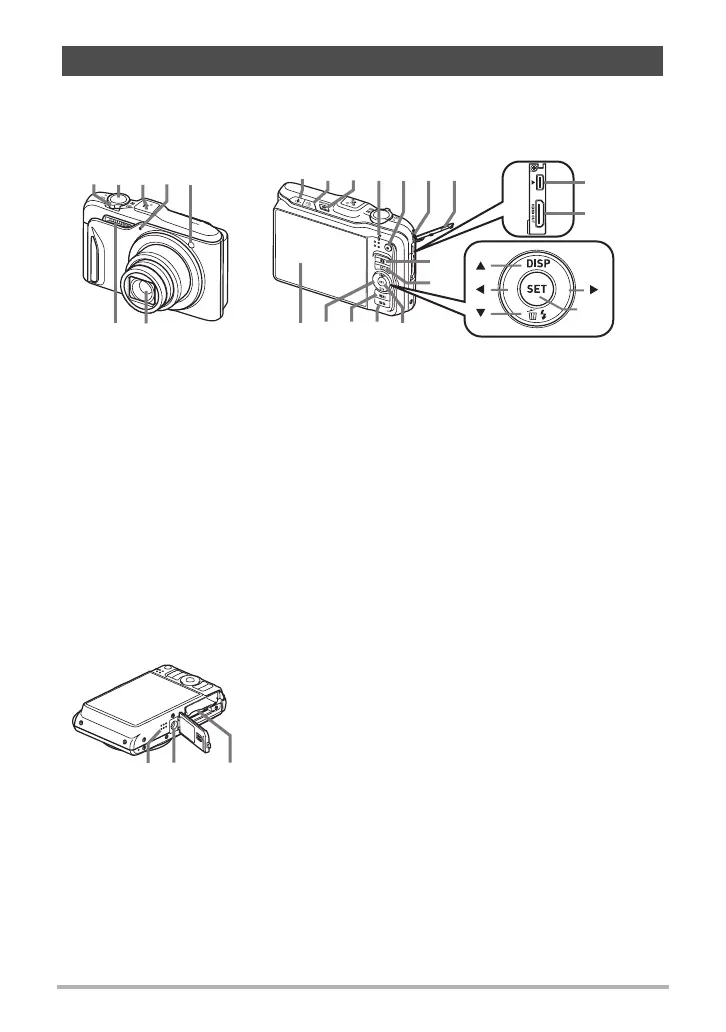

General Guide
1
Zoom controller
(pages 26, 47, 75, 76)
2
Shutter button (page 27)
3
GPS antenna (page 97)
4
Microphone
(pages 25, 51)
5
Front lamp
(pages 44, 62)
6
Lens
7
Flash (page 37)
8
[ù] (Current Location)
button (page 102)
9
[ý] (MAP) button
(pages 24, 99)
bk
[ON/OFF] (Power)
(page 24)
bl
Back lamp
(pages 24, 27, 37)
bm
[0] (Movie) button
(page 50)
bn
Strap hole (page 2)
bo
Connector cover
bp
[USB/AV] port (pages
76, 115, 123, 132)
bq
[HDMI OUT] HDMI
output (Mini) (page 78)
br
[r] (REC) button
(pages 24, 26)
bs
[p] (PLAY) button
(pages 24, 30)
bt
[SET] button (page 34)
ck
[BS] button (page 52)
cl
[MENU] button
(page 58)
cm
Control button
([8][2][4][6])
(pages 31, 34, 37, 58,
152)
cn
Monitor screen
(pages 11, 152)
4213
67
5
cn cm
bnbm bo
89
bk bl
bq
btckcl
bp
br
bs
[ ]
[ ]
[ ]
[ ]
[
SET
]
Back
co
Battery/memory card slots (pages 18, 22, 161, 163)
cp
Tripod hole
Use this hole when attaching to a tripod.
cq
Speaker
cocpcq
Bottom
Front
