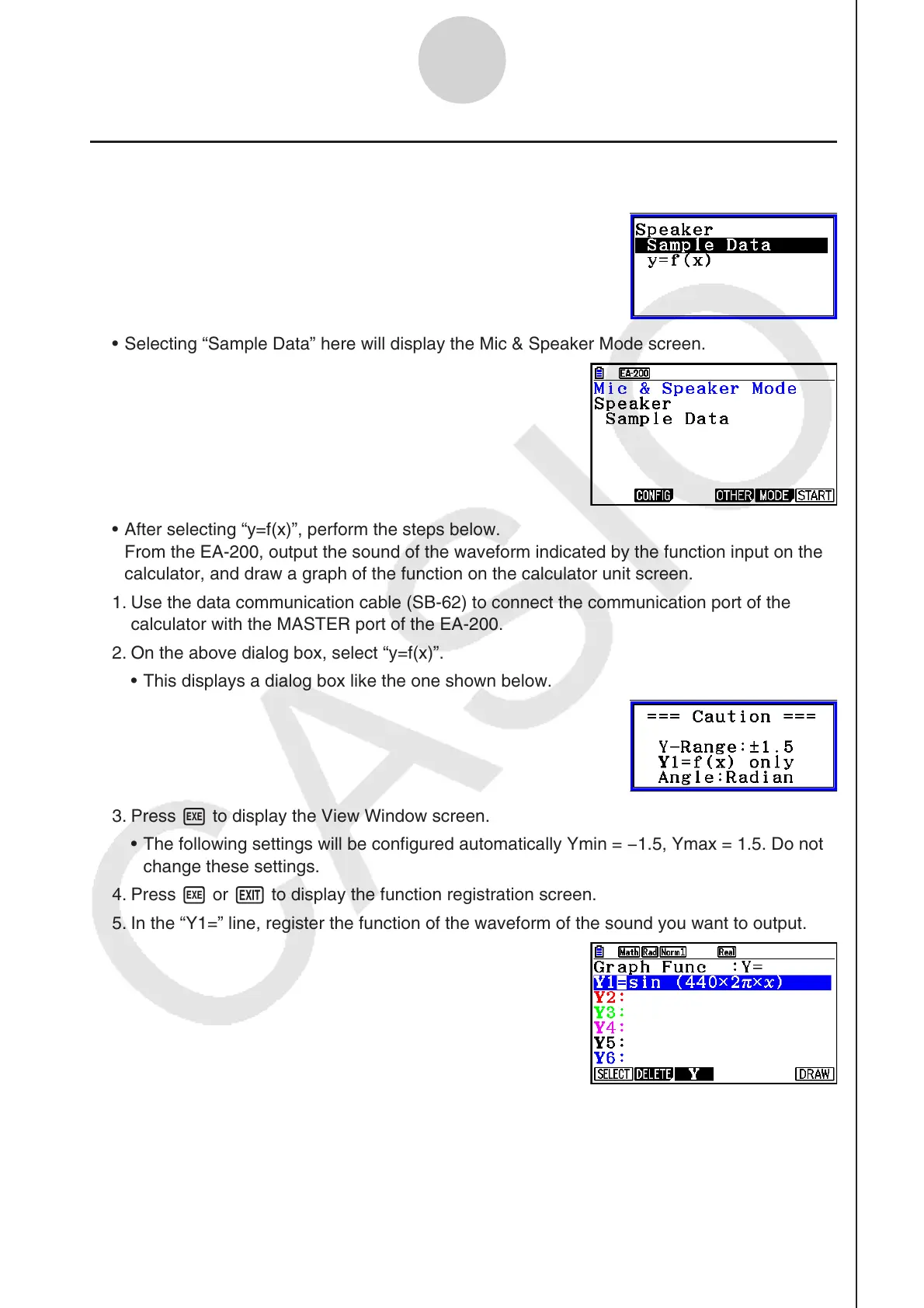

ε-6
Sampling Screen
Selecting Speaker
This displays the dialog box shown below.
Selecting “Sample Data” here will display the Mic & Speaker Mode screen.
After selecting “y=f(x)”, perform the steps below.
From the EA-200, output the sound of the waveform indicated by the function input on the
calculator, and draw a graph of the function on the calculator unit screen.
1. Use the data communication cable (SB-62) to connect the communication port of the
calculator with the MASTER port of the EA-200.
2. On the above dialog box, select “y=f(x)”.
This displays a dialog box like the one shown below.
3. Press w to display the View Window screen.
The following settings will be configured automatically Ymin = −1.5, Ymax = 1.5. Do not
change these settings.
4. Press w or J to display the function registration screen.
5. In the “Y1=” line, register the function of the waveform of the sound you want to output.
For the angle unit, specify radians.
Register a function with an Y-value within the range of ±1.5.
u
•
•
•
•
•
•
To Next Page
