ε-14

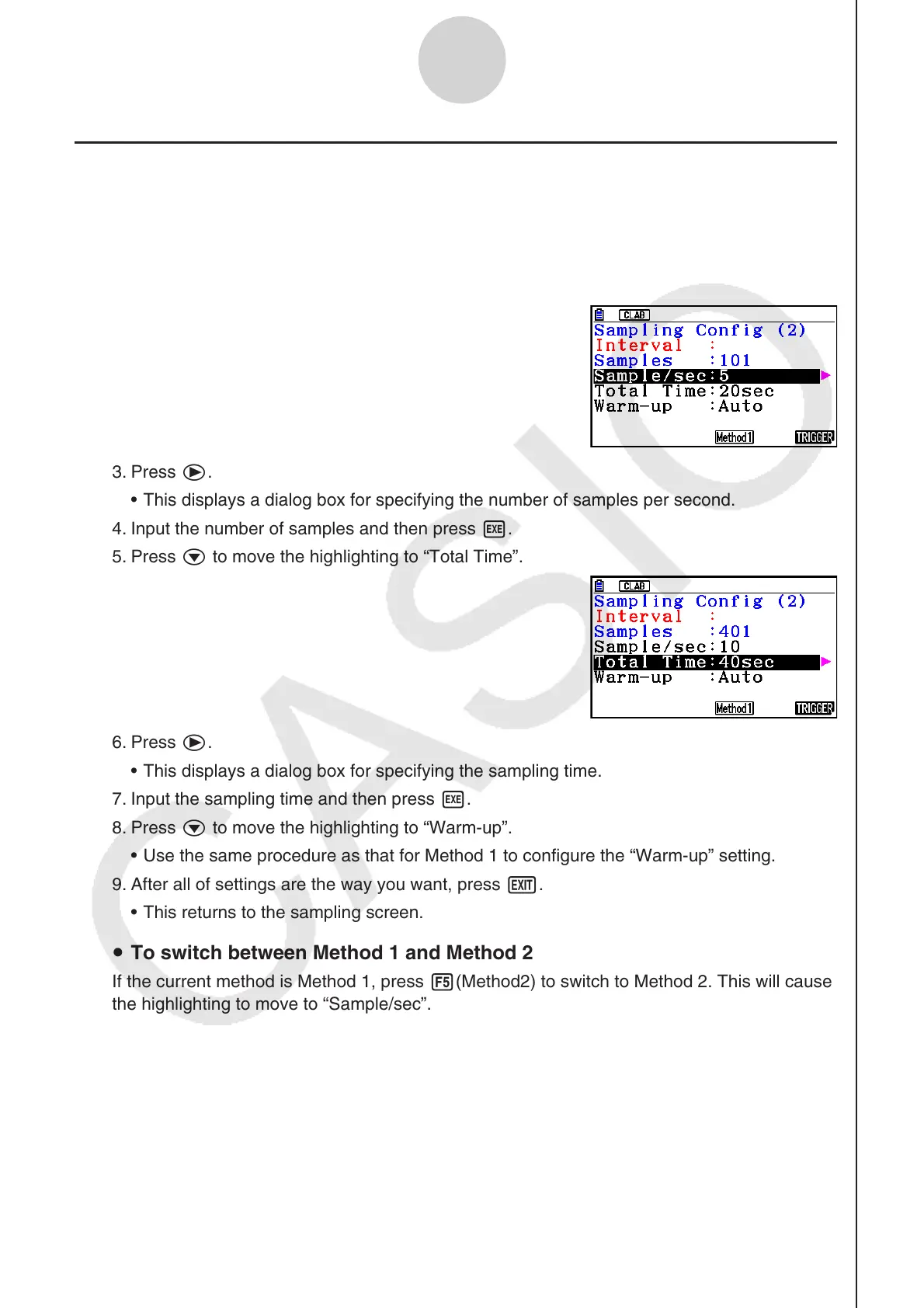

Configuring the Sampling Setup
Using Method 2 to Configure Settings
1. On the sampling screen, press 2(CONFIG).
This displays the Sampling Config screen.
2. Press 5(Method2).
This will cause the highlighting to move to “Sample/sec”.
3. Press e.
This displays a dialog box for specifying the number of samples per second.
4. Input the number of samples and then press w.
5. Press c to move the highlighting to “Total Time”.
6. Press e.
This displays a dialog box for specifying the sampling time.
7. Input the sampling time and then press w.
8. Press c to move the highlighting to “Warm-up”.
Use the same procedure as that for Method 1 to configure the “Warm-up” setting.
9. After all of settings are the way you want, press J.
This returns to the sampling screen.
To switch between Method 1 and Method 2
If the current method is Method 1, press 5(Method2) to switch to Method 2. This will cause
the highlighting to move to “Sample/sec”.
If the current method is Method 2, press 4(Method1) to switch to Method 1. This will cause
the highlighting to move to “Interval”.
If the highlighting is located at “Warm-up”, it will not move when you switch from Method 1 to
Method 2.
Switching from Method 1 to Method 2 will cause Method 2 values to be automatically
calculated and configured in accordance with the values you input with Method 1. Values are
also automatically calculated when you switch from Method 2 to Method 1.
