Configuring the Sampling Setup
• To specify the countdown start time
1. Move the highlighting to “Timer”.
2. Press 1(Time) to display a dialog box for specifying the countdown start time.
3. Input a value in seconds from 1 to 10.
4. Press w to finalize Trigger Setup and return to the Sampling Config screen.
• To specify microphone sensitivity
1. Move the highlighting to “Sense” and then press one of the function keys described
below.
To select this level of microphone sensitivity: Press this key:
Low
1(Low)
Medium
2(Middle)
High
3(High)
2. Press w to finalize Trigger Setup and return to the Sampling Config screen.

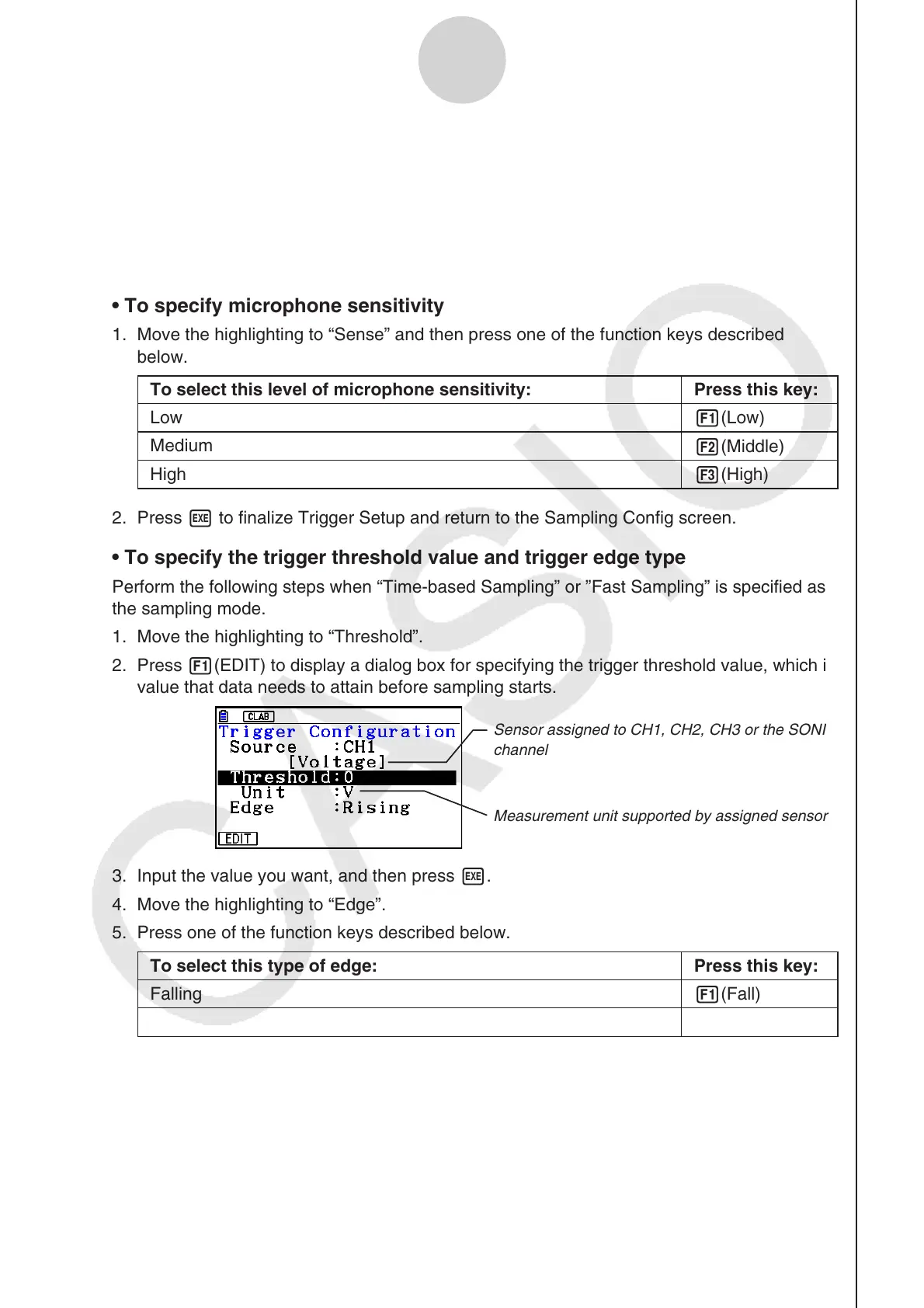

• To specify the trigger threshold value and trigger edge type
Perform the following steps when “Time-based Sampling” or ”Fast Sampling” is specified as
the sampling mode.
1. Move the highlighting to “Threshold”.
2. Press 1(EDIT) to display a dialog box for specifying the trigger threshold value, which is
value that data needs to attain before sampling starts.
Sensor assigned to CH1, CH2, CH3 or the SONIC
channel
Measurement unit supported by assigned sensor
3. Input the value you want, and then press w.
4. Move the highlighting to “Edge”.
5. Press one of the function keys described below.
To select this type of edge: Press this key:
Falling
1(Fall)
Rising
2(Rise)
6. Press w to finalize Trigger Setup and return to the Sampling Config screen.
