ε-19
Configuring the Sampling Setup
• To specify the trigger threshold value and motion sensor level
1. Move the highlighting to “Threshold”.
2. Press 1(EDIT) to display a dialog box for specifying the trigger threshold value, which is
value that data needs to attain before sampling starts.
3. Input the value you want, and then press w.
4. Move the highlighting to “Level”.

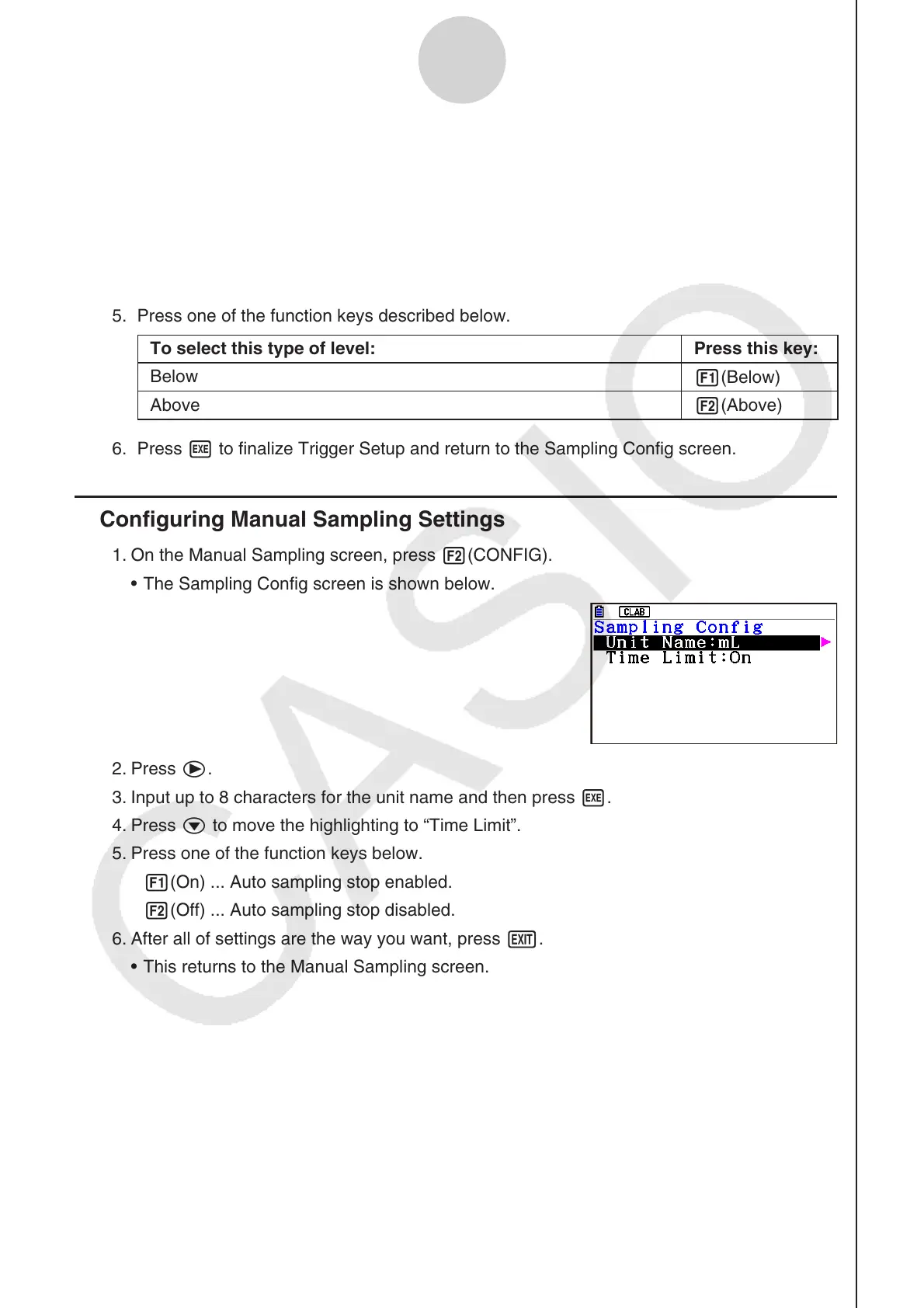

5. Press one of the function keys described below.
To select this type of level: Press this key:
Below
1(Below)
Above
2(Above)
6. Press w to finalize Trigger Setup and return to the Sampling Config screen.
Configuring Manual Sampling Settings
1. On the Manual Sampling screen, press 2(CONFIG).
The Sampling Config screen is shown below.
2. Press e.
3. Input up to 8 characters for the unit name and then press w.
4. Press c to move the highlighting to “Time Limit”.
5. Press one of the function keys below.
1(On) ... Auto sampling stop enabled.
2(Off) ... Auto sampling stop disabled.
6. After all of settings are the way you want, press J.
This returns to the Manual Sampling screen.
k
•
•
