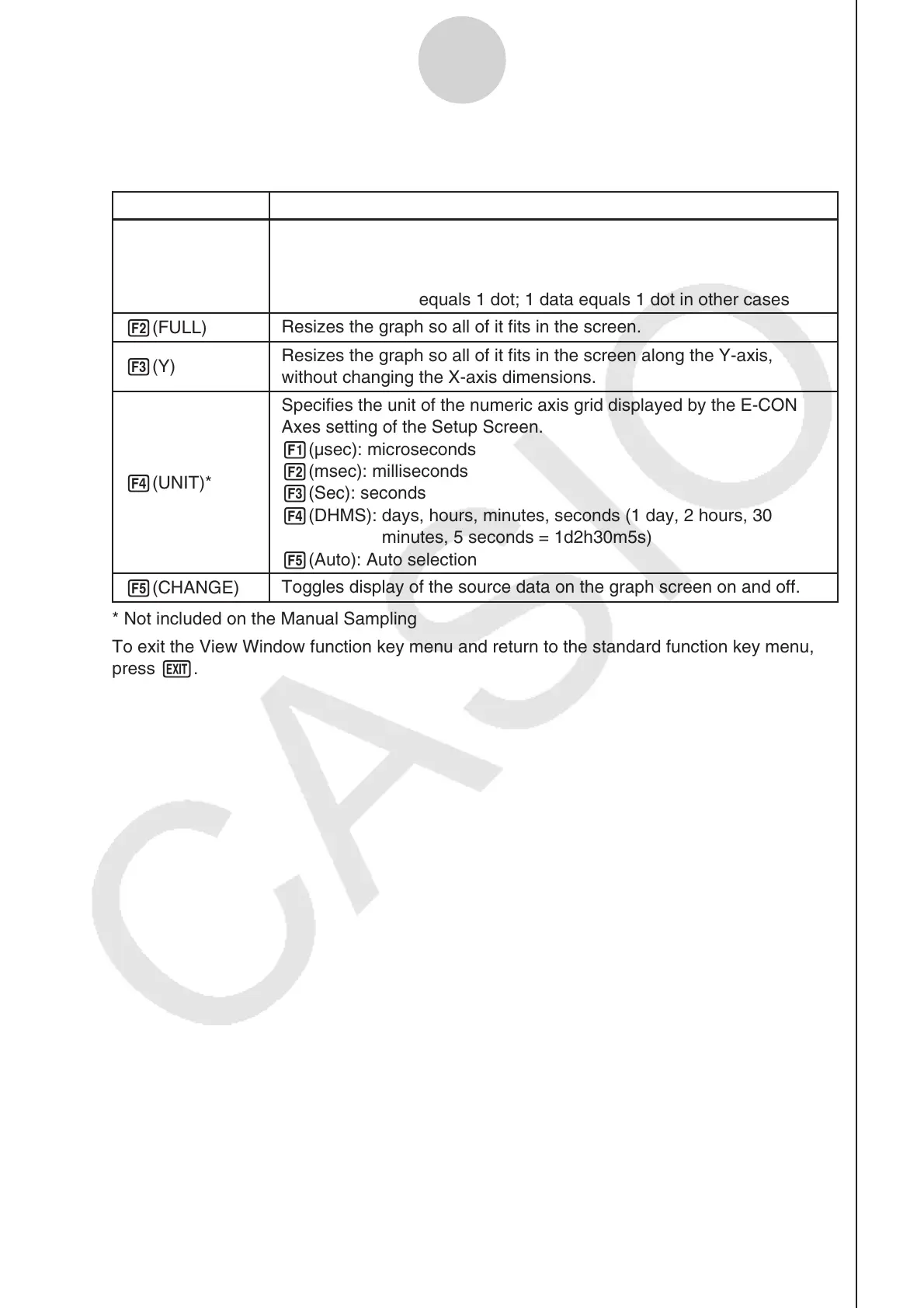

ε-50
Graph Analysis Tool Graph Screen Operations
Press the function key that corresponds to the View Window parameter you want to
configure.
Function Key Description
1(Auto)
*
Automatically applies the following View Window parameters.
Y-axis Elements: In accordance with screen size
X-axis Elements: In accordance with screen size when 1 data item
equals 1 dot; 1 data equals 1 dot in other cases
2(FULL)
Resizes the graph so all of it fits in the screen.
3(Y)
Resizes the graph so all of it fits in the screen along the Y-axis,
without changing the X-axis dimensions.
4(UNIT)*
Specifies the unit of the numeric axis grid displayed by the E-CON
Axes setting of the Setup Screen.
1(ÎĽsec): microseconds
2(msec): milliseconds
3(Sec): seconds
4(DHMS): days, hours, minutes, seconds (1 day, 2 hours, 30
minutes, 5 seconds = 1d2h30m5s)
5(Auto): Auto selection
5(CHANGE)
Toggles display of the source data on the graph screen on and off.
* Not included on the Manual Sampling
To exit the View Window function key menu and return to the standard function key menu,
press J.
