– 68 –
V
-R200 / VER.2

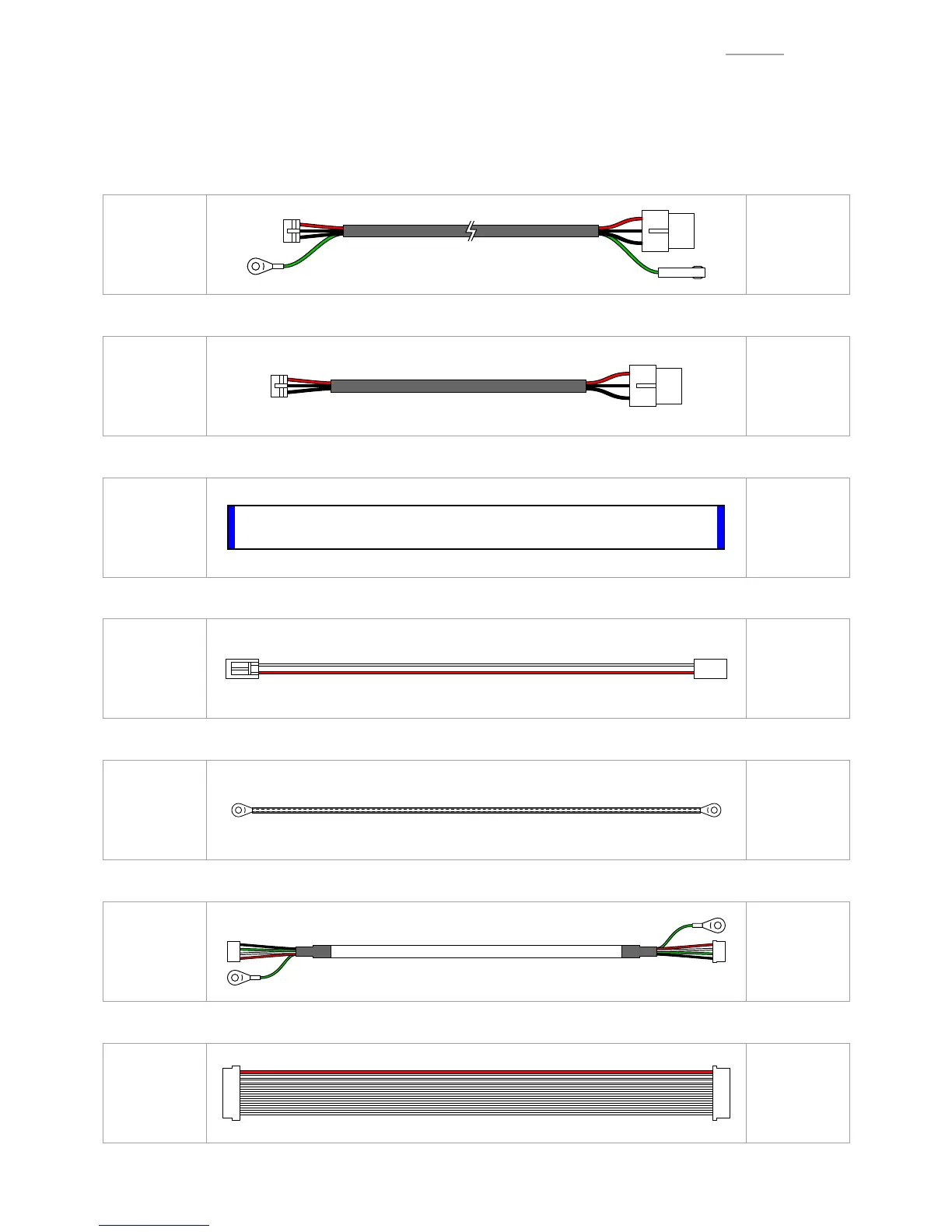

3.
CABLES
EXPLODED VIEW
Item 40 (CABLE-SUBASSY/DRA
WER)
E843-IOC PCB
CN5
Drawer
Item 41 (CABLE-SUBASSY/DRA
WER)
E843-IOC PCB
CN4
Drawer
Item 42 (CABLE/FFC JOINER)
E843-IOC PCB
CN18
E843-PR PCB
CN501
Item 43 (CABLE-SUBASSY/PRN)
E843-IOC PCB
CN502
E843-PR PCB
CN502
Item 44 (CABLE-SUBASSY/FG)
E843-IOC PCB
E843-1 PCB
Item 45 (CABLE-SUBASSY/USB)
E843-IOC PCB
CN15
E843-1 PCB
CN13
Item 46 (CABLE-SUBASSY/IOC)
E843-IOC PCB
CN8
E843-1 PCB
CN1
